INSTALLATION GUIDANCE
Docker Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Docker Series and is the answer not in the manual?

Questions and answers

Related Manuals for Midstream Docker Series

Summary of Contents for Midstream Docker Series

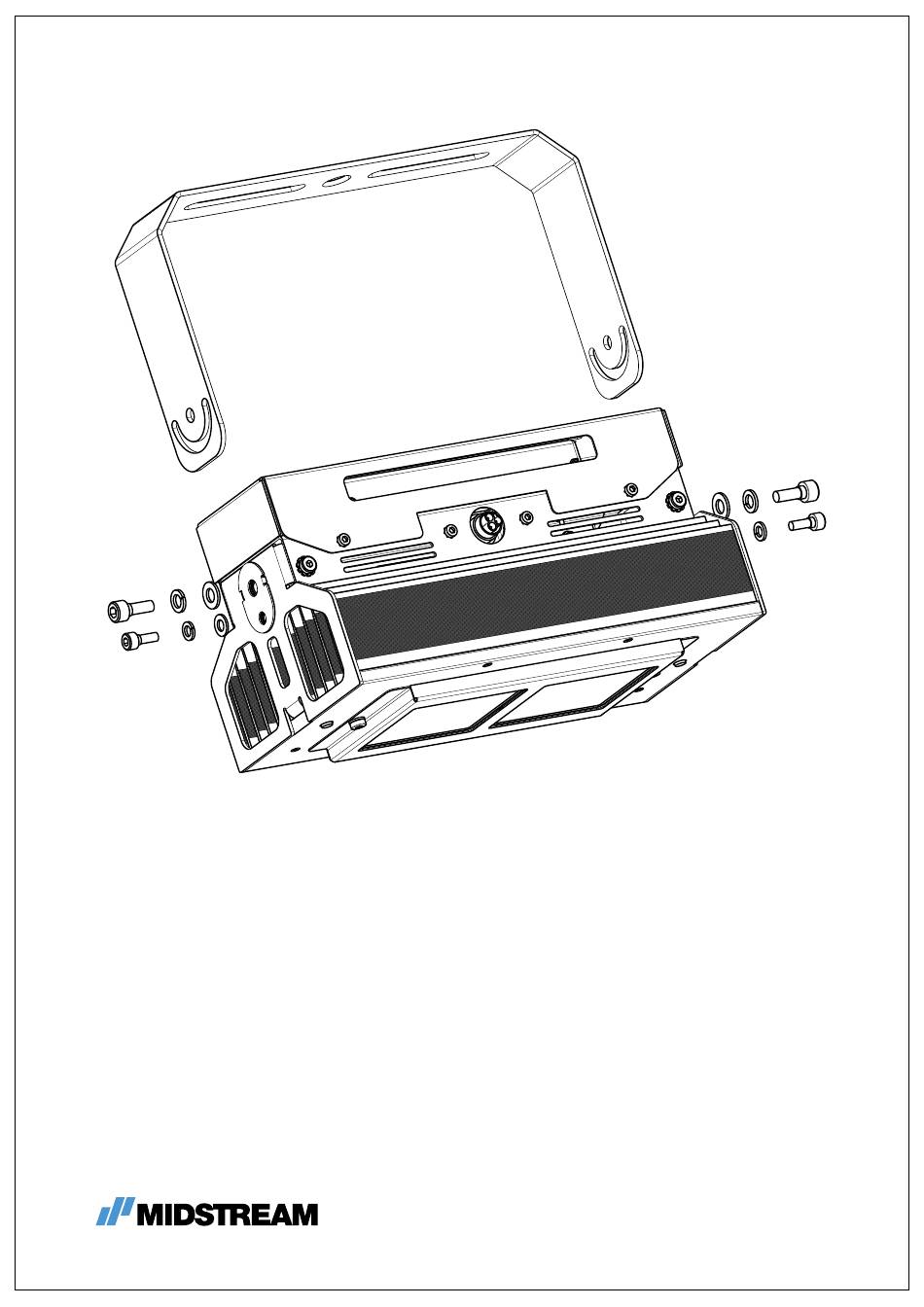

  • Page 1 INSTALLATION GUIDANCE Docker Series...

  • Page 2: Table Of Contents

    Hi-Vis vest and GENERATOR! DO NOT USE PERCUSSION DRILLS! damage by electrostatic surface other than the safety gloves must discharge (ESD) provided foam pad always be worn DOCKER SERIES INSTALLATION GUIDANCE midstreamlighting.com +44 (0) 207 584 8310...

  • Page 3: Bracket Mounting And Aiming

    MIDSTREAM LIGHTING LTD - 1 CHESHAM STREET - LONDON - SW1X 8ND - UNITED KINGDOM - Ph +44 207 584 8310 This drawing is property of MIDSTREAM LIGHTING LTD. All rights reserved the partial or total reproduction of it is forbidden without express consent.

  • Page 4: Type S Bracket Mounting

    MIDSTREAM LIGHTING LTD - 1 CHESHAM STREET - LONDON - SW1X 8ND - UNITED KINGDOM - Ph +44 207 584 8310 This drawing is property of MIDSTREAM LIGHTING LTD. All rights reserved the partial or total reproduction of it is forbidden without express consent.

  • Page 5: Floodlight Connection

    MIDSTREAM LIGHTING LTD - 1 CHESHAM STREET - LONDON - SW1X 8ND - UNITED KINGDOM - Ph +44 207 584 8310 This drawing is property of MIDSTREAM LIGHTING LTD. All rights reserved the partial or total reproduction of it is forbidden without express consent.

  • Page 6: Electrical Connection

    IP68 protection. Test the luminaire before attaching it to the final connection point. If the cable diameter is greater than 9 mm, remove the inner part of the gasket. DOCKER SERIES INSTALLATION GUIDANCE midstreamlighting.com +44 (0) 207 584 8310...

  • Page 7: Electrical Specifications

    * Measured at 50% Ipk at 230 Vac input, 25°C cold start per NEMA 410 Docker 150 Docker 300 Weight 8 kg 11.5 kg Docker 150 Windage 0.072 m 0.102 m Docker 300 DOCKER SERIES INSTALLATION GUIDANCE midstreamlighting.com +44 (0) 207 584 8310...
  • Page 8 If in doubt, consult your local waste disposal facility. 300 Type A / Type S 20200511 – Information contained in this handbook may be subjected to change without notice DOCKER SERIES INSTALLATION GUIDANCE midstreamlighting.com +44 (0) 207 584 8310...
  • Page 9 For translations, digital versions or more information please head to https://www.midstreamlighting.com/installation-guides European HQ Midstream Ltd. Wessex House, 1 Chesham Street, London SW1X 8ND, United Kingdom Te: +44 207 584 8310 E: info@midstreamlighting.com US HQ Midstream Lighting Ltd. 66 West Flagler Street,...

This manual is also suitable for:

Docker 150Docker 300

Table of Contents
