SPECIFICATIONS:
Model:
B652-AIR
Description:

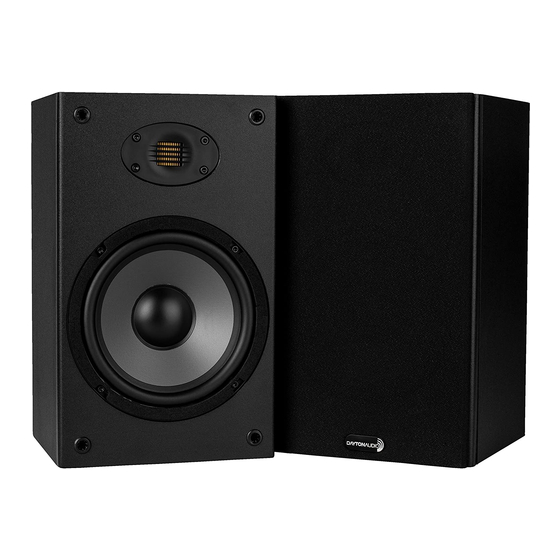

2-Way Bookshelf Speaker Pair
Woofer:
6-1/2" polypropylene cone with 4-layer coil
Tweeter:
Mini AMT type with pleated Kapton diaphragm
Finish:
Black ebony pica vinyl on particle board
Power Handling: 40W RMS/75W max
Impedance:
6 ohms
Response:
70 Hz to 20,000 Hz
Sensitivity:
87 dB 1W/1m
Crossover:
First order high-pass with level matching
Terminals:
Quick connect push terminal
Other:
Keyhole mounting bracket
Dimensions:
11-13/16" H x 7-1/16" W x 6-7/16" D*
*Depth includes grill
Note: Grill is removable, non-see-through cloth
WARNING: This product may contain a chemical or chemical[s] known to the State of
California to cause cancer or birth defects or other reproductive harm.
Warranty Information
Dayton Audio products are constructed by industry experts and thoroughly tested before shipment.
Dayton Audio products are warranted for the period of one year. This warranty is limited to
manufacturer defects, either in materials or workmanship. Dayton Audio is not responsible for any
consequential or inconsequential damage to any other unit or component, or the cost for installation
or extraction of any component of the audio system. In the rare case of a product failure, please
contact your place of purchase or call our Customer Support Department at (937) 743-8248.
Warranty Limitations
There are no other warranties, either expressed or implied, that extend the foregoing, and there are
no warranties of merchantability or fi tness for any particular purpose. The warranty will not cover
incidental or consequential damage due to defective or improper use of products. This includes but
is not limited to burnt voice coils, overheating, bent frames, holes in the cone, or broken lead wires.
This warranty gives you specifi c legal rights and you may also have other rights that vary from state
to state.
Non-Warranty Service: If non-warranty service is required, the product may be sent to the Company
for repair/replacement, transportation prepaid, by calling (937) 743-8248 for details, complete
instructions, and service fee charges.
daytonaudio.com
tel + 937.743.8248
info@daytonaudio.com
Dayton Audio
®
705 Pleasant Valley Dr.
Springboro, OH 45066
USA
Last Revised: 3/9/2015
6 1/2" 2 WAY
BOOKSHELF
SPEAKER PAIR
with AMT TWEETER
Model: B652-AIR User Manual
Advertisement
Related Manuals for DaytonAudio B652-AIR
Summary of Contents for DaytonAudio B652-AIR
- Page 1 Note: Grill is removable, non-see-through cloth with AMT TWEETER WARNING: This product may contain a chemical or chemical[s] known to the State of Model: B652-AIR User Manual California to cause cancer or birth defects or other reproductive harm. Warranty Information Dayton Audio products are constructed by industry experts and thoroughly tested before shipment.
- Page 2 One side will be marked with a colored stripe, a raised rib, or a different colored 2) Installation Tools conductor. Use the marked side for the “red” connections. No tools are required for installation of the B652-AIR speakers. Additional tools and hardware may be required for wall mounting. 5) Caring For Your Speakers Clean your speakers by wiping with a damp, lint-free cloth.
