evplug EV20021 Quick Start Manual

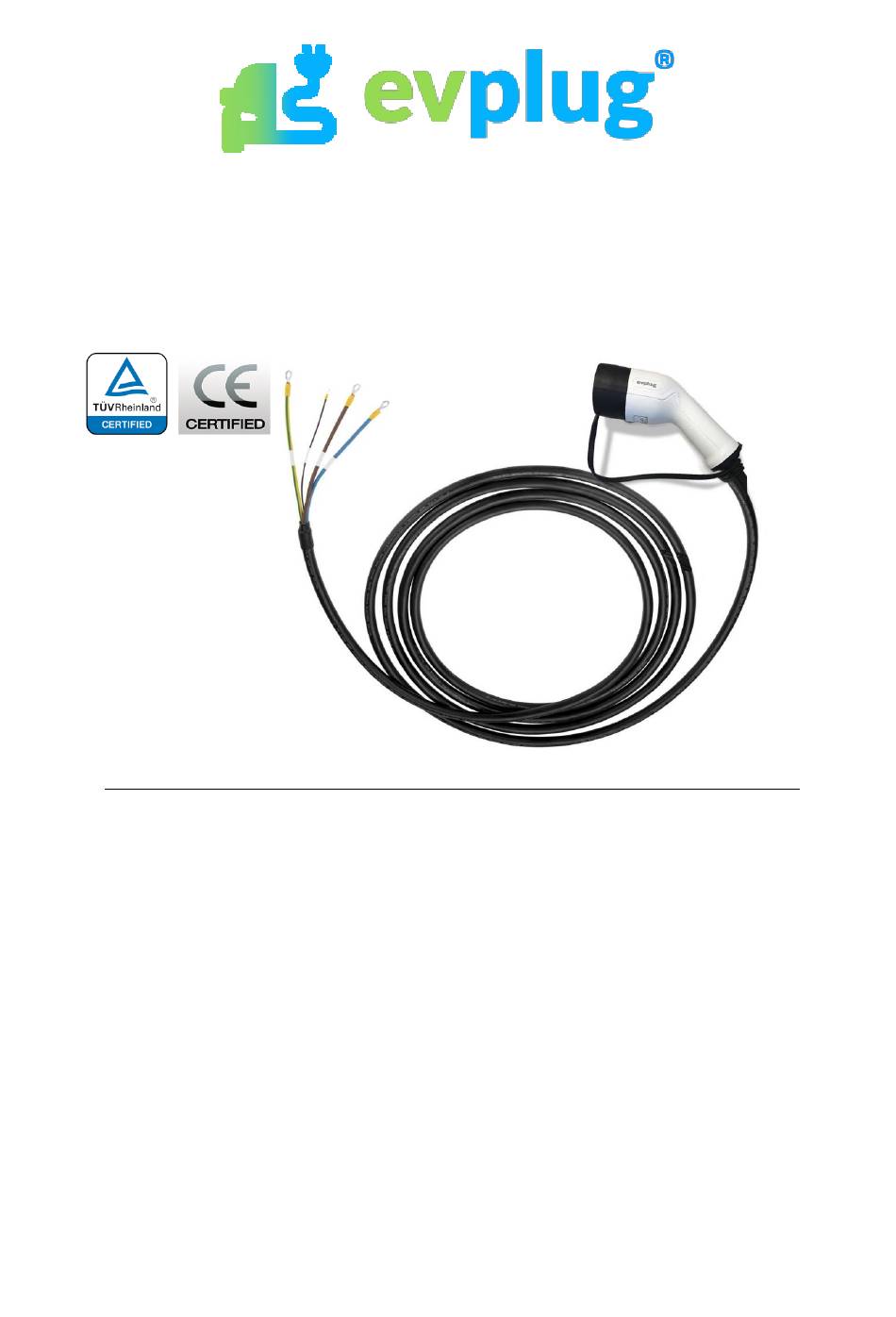

Open End EV Charging Cable
Replacement Mode 3 manual
Description
This open end cable replacement is to be integrated to the charging station. You can charge your
EV/PHEV that has Type 2 charging port. The cable is 32 amperes, single (EV20021) and three
(EV20022) phase, can charge your EV up to 7.4 kW or 22kW respectively. The product has a nice
appearance, a hand-held ergonomic design and is easy to plug. The working length is 5 meters
and is made from thermoplastic material. It has protection level IP55, is anti-flaming, pressure-
resistant, abrasion-resistant and impact resistant.
Suitable to connect with all private or public charging stations and for use outdoors or indoors. All
open end cables should be installed only by a qualified electrician.
The open end charging Cable has only one connector Type 2 and is intended to be firmly attached
to the charging station.
How to use:
1. Firstly, have a professional to make the replacement of the cable.
2. Activate the charging station
3. Plug in the Type 2 end of the cable to the car
4. After the cable has clicked in place you are ready for the charge
