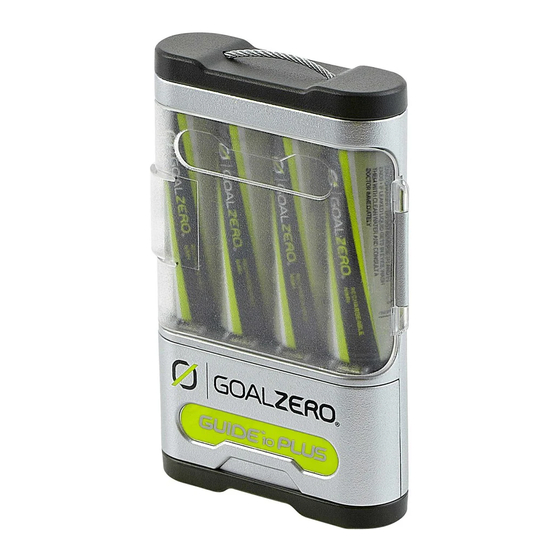

GOAL ZERO GUIDE10 Quick Start Manual

GUIDE
10
B A T T E R Y P A C K
Get to know your gear
Getting Started
1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Install batteries in correct orientation.
3. Turn on and use.
4. Recharge from any GOAL ZERO NOMAD solar panel or USB power source.
How to use your gear
Power switch
Turn to ' o n' to enable output; turn to the
See legend below.
HANG IT
Power LED
Sturdy hanging wire provides
Indicates power and charging state. See power legend below.
convenient storage options.
USB output port
Accepts any standard USB cable for charging USB devices. To
PROTECT IT
use, turn GUIDE 10 to 'on.'
Batteries are housed securely
behind a transparent door. LED Flashlight
100+ hours of light per charge. Never needs replacing. Turn on
with power switch.
Solar charging port
USE IT Recharge from GOAL ZERO NOMAD 7 or NOMAD 3.5 solar panels.
Power portable electronic devices
Mini-USB charging port
directly from the USB output port.
Recharge from USB sources, like a computer.
LIGHT IT
Equipped with a bright LED flashlight
which never needs replacing.
LED power legend:
Technical Specs
Usage
to turn on flashlight.
Charges from the following:
Any USB power source
GOAL ZERO NOMAD 3.5 (solar port)
GOAL ZERO NOMAD 7 (solar port)
Inputs
Mini-USB port
Outputs
Batteries
USB standard port
Flashlight
Internal
Battery capacity
Life-span
Shelf Life
General
Power switch legend:
Weight w/ batteries
Dimensions
Warranty
Certifications
Optimal operating temp.
*When using GOAL ZERO NiMH rechargeable low self-discharge AA cells.
** AAA cells require an adapter, which is free upon request. Contact GOAL ZERO
directly to request one.
Approx. charge time:
8-10 hours
6-8 hours
2-4 hours
5V, 0.5A max (2.5W)
4x AA or AAA** NiMH cells
5.0V, 0.5A max (2.5W)
100mW white LED, 100+ hours*
10 Wh*, use only NiMH cells
hundreds of cycles*
12 months*
0.4 lbs (0.18 kg)
2.5x4x0.75 in (6x10x2 cm)
12 months
FCC and CE
32-104ºF (0-40ºC)
