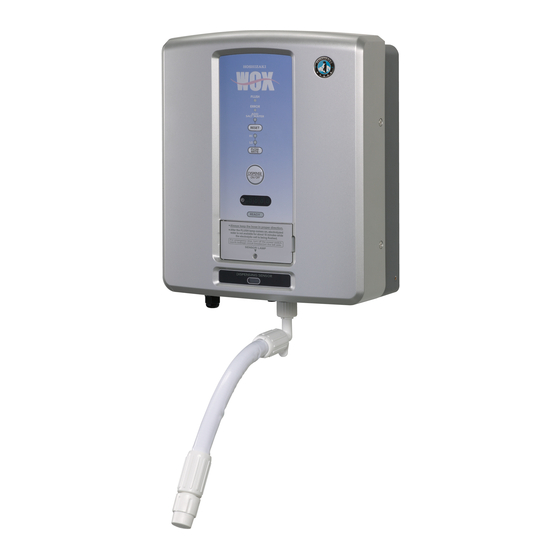

- Page 1 WOX-40WA-EW WATER ELECTROLYZER INSTALLATION MANUAL FOR QUALIFIED INSTALLER ONLY 3-16 Minamiyakata, Sakae-cho, Toyoake, Aichi 470-1194 Japan L2X006112 (111520)
-
Page 2: [B] Operation Panel
In the context of this manual, the term "sanitizing water" refers to (Bottom) acidic water and "cleaning water" refers to alkaline water. [13] IMPORTANT 1. In order to carry out safe and proper installation of the product, please read this booklet carefully beforehand and [12] follow the instructions contained within. -
Page 3: Installation
[5] Flow rate select button 2. UNPACKING Adjusts the flow rate. The lamp of selected flow rate (HI or LO) comes [a] ELBOW AND NOZZLE HOSE [6] Dispense button Install the elbow (accessory) and nozzle hose (accessory) as shown Press this button to start or stop dispensing sanitizing water (default below. setting: continuous dispensing mode). [7] Display Normally indicates present time. -
Page 4: Electrical Connections
(two on left) Screw (one on right) Connection of the water supply to the HOSHIZAKI water electrolyzer shall be undertaken in accordance with AS/NZS 3500.1. Note: Make proper connections to prevent water leaks, resulting in damage to surrounding property. The plumbing materials must... -
Page 5: Remote Controller (Option)
Example Water Supply Inlet (G3/4) Drain Hose (left, right) Suction Hook (two) Max. 50cm Salt Water Hose Water Supply Pipe Max. 1m Pressure Reducing Valve (accessory) Salt Water Tank Water Supply Valve Shut-off Valve Dual Check Valve (accessory) Drain Valve Drain 6. - Page 6 [c] INSTALLATION EXAMPLES IMPORTANT Keep the braided hose connecting the unit and the remote controller not longer than 2 m. Note: The plumbing materials must be prepared on site. Above sink installation Braided Hose Remote Controller Water Supply Inlet (G3/4) Drain Hose (left, right) Max.
-
Page 7: Warranty
“warranty period”. The warranty shall be effective for one year from the date of installation. Hoshizaki’s liability under the terms of the warranty are limited and shall exclude routine servicing, cleaning, essential maintenance and/ or repairs occasioned by misuse and installations not in accordance with Hoshizaki guidelines.
