Water fi ltration
W a t e r fi l t r a t i o n
Hoshizaki Water Filter System
Improves ice and beverage quality, optimises equipment performance and service life
• Sediment and chlorine reduction improves water & ice quality to enhance beverage
appearance and taste.
• Reduces hardness scale to protect and extend equipment life.
• Sanitary quick change design – easy to use and hygienic to change out lter cartridges.
• Range of sizes and capacities to suit applications.
• Manufactured in USA. International independent performance certi cation.
Water related issues are the most common cause of ice machine problems. Hoshizaki provide a quick change
water fi lter system to enhance ice quality and extend the performance and life of ice machines. The fi lter
system features a quick change sanitary design which enables easy installation and use, and also protects
against water contamination by eliminating handling of the fi lter media. The fi lter system is available in two
convenient sizes to suit a range of applications and can utilize a range of cartridges. The system comprises of (i)
Mounting Bracket, (ii) Filter head c/w all valve and threaded in/out fi ttings and (iii) Filter cartridge.
Please contact your Hoshizaki offi ce for further information.

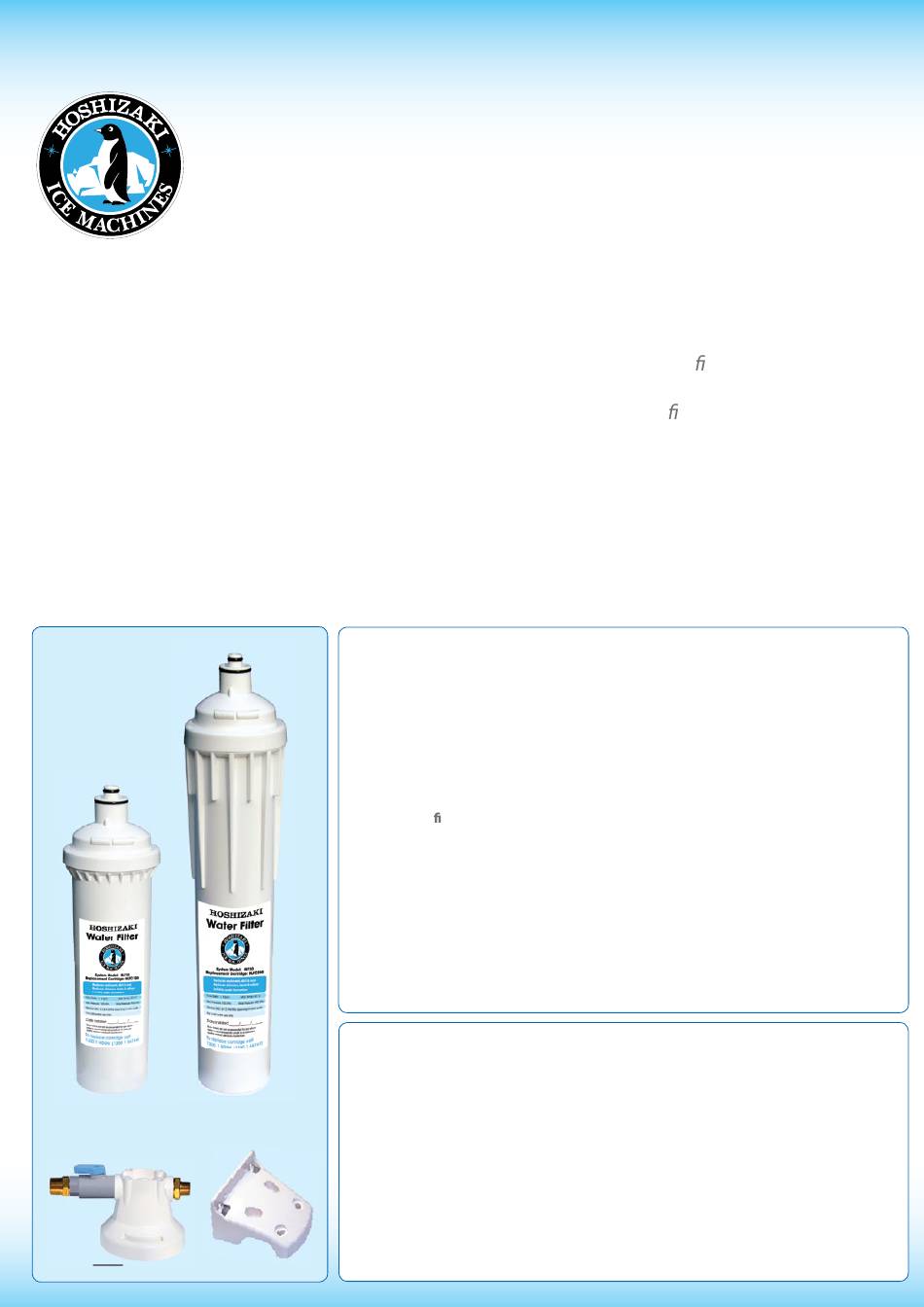

Cartridge Selection
HLFC 100 Standard
Suits small ice machine
applications
HLFC 200 High Capacity
Suits medium/high
volume applications
Standard
High Capacity
HLFC 100
HLFC 200
Filter Head incl. valve Mounting bracket
½" bspm inlet, ball valve – plastic
¾" bspm outlet
QCELH QCELH BKTMF
For Ice Machines
F o r I c e M a c h i n e s
Specifi cations
Description
Filter systems complete
Filter system – standard capacity 320mm ctg
includes bracket, fi lter head and cartridge
Filter system – high capacity 450mm ctg
includes bracket, fi lter head and cartridge
Replacement lter cartridges
Filter cartridge – standard capacity 320mm
- Sediment, chlorine, scale
Filter cartridge – high capacity 450mm
- Sediment, chlorine, scale
Parts
Filter head 1/2" bspm inlet 3/4" outlet
Mounting bracket
Ball Valve 3/8m x 3/8f

Operating Conditions

Connections In/Out: inlet 1/2" bspm, outlet 3/4" bspm
Water Pressure range: 100 kPa – 900 kPa
Temperature range: 2⁰C - 40⁰C
Flow rate: < 8 lpm

Notes

Filter cartridge life: Dependent on water quality. 6 months recommended use period, 12 months maximum.
Protect fi lter system from freezing or direct sunlight.
Fit pressure limiting valve if water pressure is >900 kPa
Not for use in water that is microbiologically unsafe or of unknown quality without adequate disinfection
Suits Ice Machine models
Model
IM30 – IM100, KM30 – KM125, DCM series
HLF 10
IM130 – IM240, KM515 – KM1300
HLF 20
HLFC 100
HLFC 200
QCELH Contact Hoshizaki
BKTMF Contact Hoshizaki
FPV3838 Contact Hoshizaki

Dimensions

HLF10 system – 390mm h x 100mm w
HLF20 system – 520mm h x 100mm w
HLFC100 cartridge – 320mm h x 100mm w
HLFC200 cartridge – 450mm h x 100mm w
