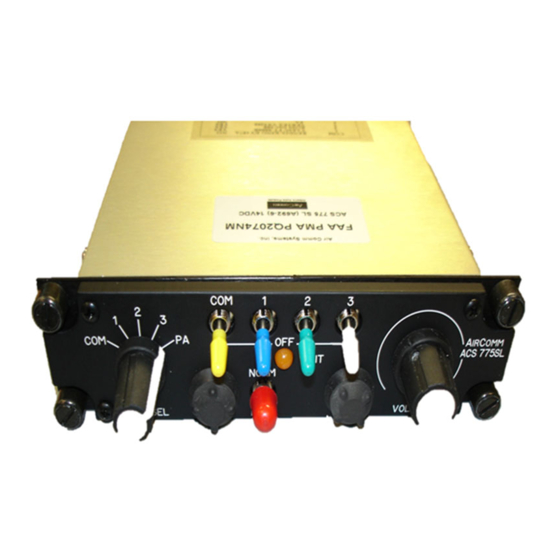

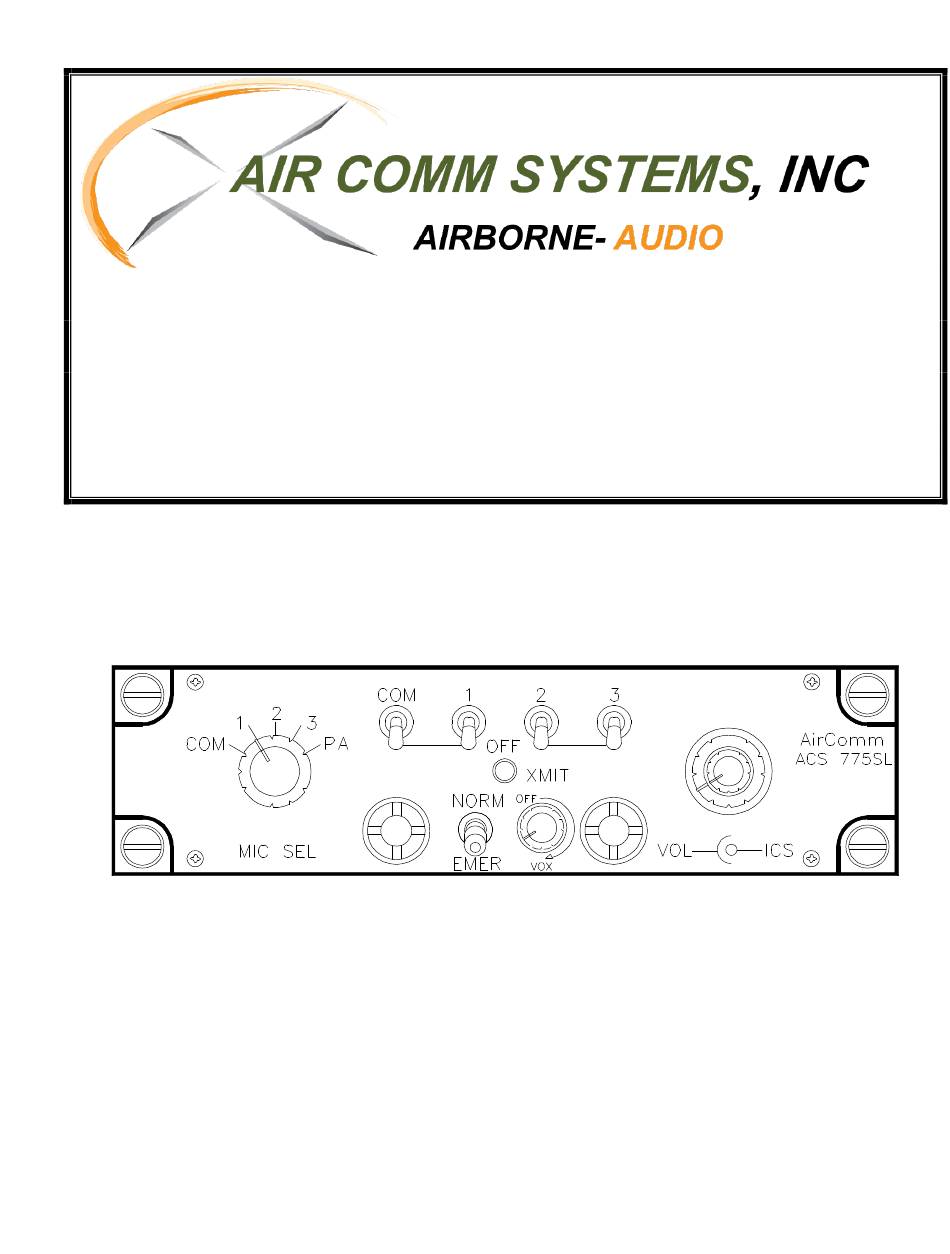

- Page 1 Single Audio Mixer Panel Installation and Operations Manual ACS 775SL-100 Revision 3.0 Air Comm Systems, Inc 37610 Sky Canyon Dr., Hangar 51 Murrieta, CA 92563 Ph: 951-677-0101 ~ Fx: 951-677-0701 Info@AirCommSystems.com ~ www.AirCommSystems.com...
- Page 2 ACS 775SL-100 Operations and Installation Manual Table of Contents Installation ................................3 Physical Specifications ............................ 3 Operating Specifications: ..........................3 Physical Dimension Outline for Mounting ...................... 4 Physical Installation ............................4 Interface Schematic ............................5 ...
- Page 3 ACS 775SL-100 Operations and Installation Manual Physical and Operating Specifications Installation Physical Specifications Size: 5.75 in. (14.61cm) Width Weight: 1.25lb. (.56kg) 1.50 in.( 3.81 cm) Height 6.78 in.(17.22cm) Depth Mounting: Dzus rail mount Controls: Panel Mounted - Transmit = Rotary Switch...
- Page 4 5.031” Physical Installation The ACS 775SL-100 is designed to be Dzus mounted and should be installed in the aircraft using the DC37SL-F Installation kit that is included. The above outline drawing of the unit with dimensions will facilitate the installation. Be sure that adequate clearance is allowed for the rear connector and cable harness.
- Page 5 Connector Pin-out The ACS 775SL-100 wiring harness should be constructed of Tefzel aircraft wire (M22759/16 grade). Power and ground wires should be 18 or 20 AWG, and all other wires may be 22 AWG. Shielded wires should be used where noted. Adequate protection against wear and chafing should be taken by using a braided cable sleeving or jacket.
- Page 6 Front Panels Co ntrols Description The ACS 775SL-100 Single Audio Mixer Panel is a compact, lightweight unit which provides full audio control for a single position in the aircraft. It has the capability to provide its user with 4 receive audio selections, 5 transmitter selections, and full headphone audio and ICS volume control.
- Page 7 ACS 775SL-100 Operations and Installation Manual Front Panel Controls Cont. See Figure 1 7- VOX (Voice Activated Intercom) Control VOX technology ensures clean, crisp intercom regardless of cockpit noise conditions and results in better communications and reduced pilot noise fatigue. The intercom can be set to the “off” position when not desired.
- Page 8 Limited Warranty Information Air Comm Systems, Inc. warrants each new product to be free from defective material and workmanship and agrees to remedy any defect or to furnish a new part in exchange for any defective unit provided an...
