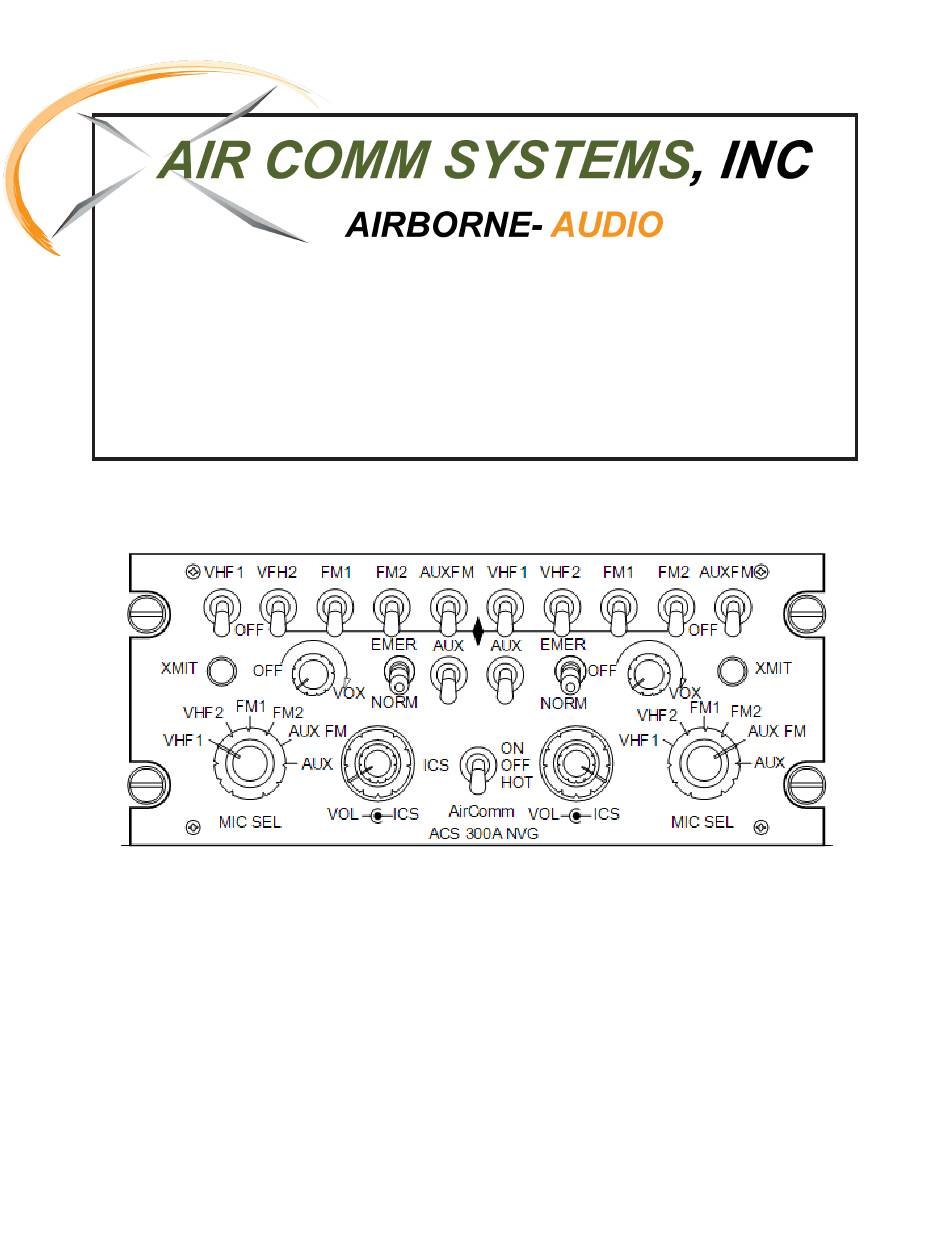

- Page 1 Dual Audio Mixer Panel Installation and Operations Manual ACS 300A-101 Revision 1.3 Air Comm Systems, Inc 37610 Sky Canyon Dr., Hangar 51 Murrieta, CA 92563 Ph: 951-677-0101 ~ Fx: 951-677-0701 Info@AirCommSystems.com ~ www.AirCommSystems.com...
-
Page 2: Table Of Contents
ACS 300A-101 Installation and Operations Manual Table of Contents Installation Physical and Operating Specifications Page 3 Physical Dimensions Page 4 Interface Schematic Page 5 Operation Front Panel Controls Page 6-7 Front Panel Controls Pictorial Page 8 Rear Panel Adjustment Pictorial... -
Page 3: Physical And Operating Specifications
ACS 300A-101 Installation and Operations Manual Physical and Operating Specifications Physical Specifications SIZE: 6.31 in.(16.03 cm) W WEIGHT: 2.90 lb 2.62 in.( 6.65 cm) H 6.78 in.(17.22 cm) D w/ connector MOUNTING: Dzus rail mount CONTROLS: Panel mounted - transmit = rotary switch, audio inputs = toggle switch volume control = dual potentiometer ILLUMINATION: Edge lit front panel per MIL-P-7738E, type 3. -
Page 4: Physical Dimensions
ACS 300A-101 Installation and Operations Manual Physical Dimensions Physical Dimension Outline Physical Installation The ACS 300A is designed to be Dzus mounted and should be installed in the aircraft using the Installation kit that was included with the unit. The above outline drawing of the unit with dimensions will facilitate the installation. -
Page 5: Interface Schematic
ACS 300A-101 Installation and Operations Manual Interface Schematic Connector Pin-out 14 OR 28VDC POWER IN LEFT MICROPHONE HI LEFT TRANSMIT KEY LEFT ICS KEY LEFT HEADPHONE AUDIO RIGHT MICROPHONE HI RIGHT TRANSMIT KEY RIGHT ICS KEY RIGHT HEADPHONE AUDIO INPUT 1 MIC HI... -
Page 6: Front Panel Controls
ACS 300A-101 Installation and Operations Manual Front Panel Controls ( See Figure 1 — Page 8 for pictorial ) Description The ACS 300A Dual Audio Mixer Panel is a compact, lightweight unit which provides full audio control and ICS support for Pilot and Co-pilot or observer positions in the aircraft. It has the capability to provide each user with 5 receive audio selections, 6 transmitter selections, Normal and HOT (Hands Free) ICS, and full headphone audio and ICS volume control. - Page 7 ACS 300A-101 Installation and Operations Manual Front Panel Controls ( See Figure 1 — Page 8 for pictorial ) 5 - Mic Selector This rotary switch performs three functions simultaneously. It (a) connects the mic to the selected transmitter (b) selects the associated keyline, and (c) selects the associated audio (if not already selected using the audio select-mute switch).
-
Page 8: Front Panel Controls Pictorial
ACS 300A-101 Installation and Operations Manual Front and Rear Panel Controls Figure 1 - Front Panel Controls VFH1 VFH2 AUXFM Figure 2 - Rear Panel Adjustment Air Comm Systems, Inc. Page 8... -
Page 9: Instruction For Continued Airworthines
PURPOSE: To provide instructions for the maintenance and inspection of the Air Comm Systems, Inc. Model ACS-300 Series Audio Mixer Panels. This Manual provides instructions supplementing the aircraft maintenance manual. These instructions only supersede the aircraft manual in the indicated areas. -
Page 10: Warranty Information
Warranty Information Warranty Information Air Comm Systems, Inc. warrants each new product to be free from defective material and workmanship and agrees to remedy any defect or to furnish a new part in exchange for any defective unit provided an...
