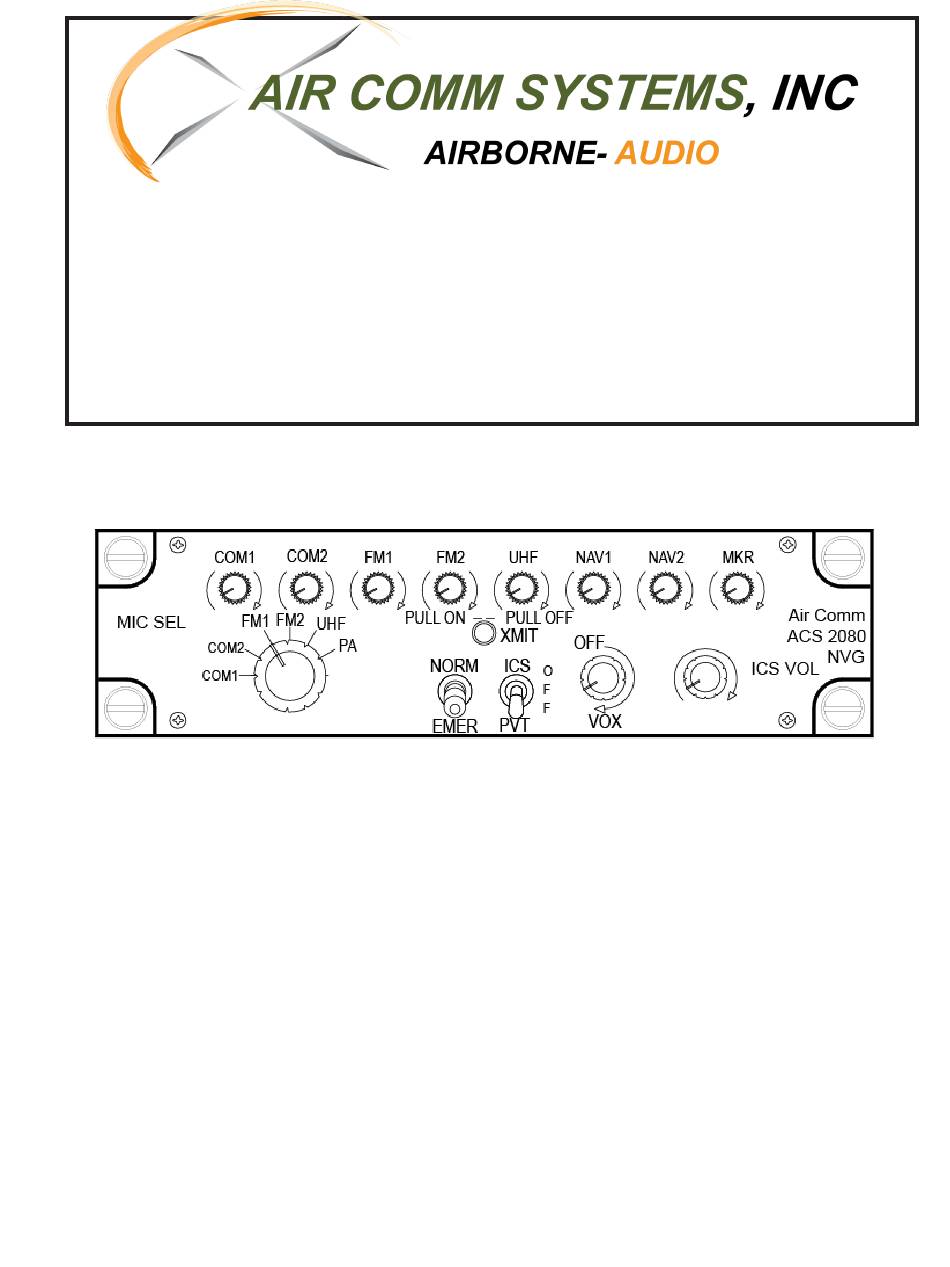

- Page 1 Single Audio Mixer Panel Operations and Installation Manual ACS 2080-300 NVG Kern County Fire Revision 1.3 Air Comm Systems, Inc 37610 Sky Canyon Dr., Hangar 51 Murrieta, CA 92563 Ph: 951-677-0101 ~ Fx: 951-677-0701 Info@AirCommSystems.com ~ www.AirCommSystems.com...
-
Page 2: Table Of Contents
Page 3 Physical Dimensions Page Interface Schematic Page Operation Front Panel Controls Page 6-7 Front Panel Controls Pictorial Page 8 Instruction for Continued Airworthiness Instruction for Continued Airworthiness Page 9 Warranty Warranty Information Page 10 Air Comm Systems, Inc. Page 2... -
Page 3: Physical And Operating Specifications
INPUT ISOLATION: Not less than 50 db between inputs AUDIO MUTING: Not less than 40 db during transmit/ICS (optional) MIC SENSITIVITY: 300 mV for rated output DISTORTION: Less than 10% at 1000 Hz for maximum output Air Comm Systems, Inc. Page 3... -
Page 4: Physical Dimensions
The connector pin configuration of the ACS 2080-300 rear connector and the recommended wire size for the aircraft cable harness is shown on the following page. Be sure that adequate clearance is allowed for the rear connector and cable harness. Air Comm Systems, Inc. Page 4... -
Page 5: Interface Schematic
Before completing installation, verify that all cable connector pins are seated properly and that the connector is securely mounted to the unit mating connector. Pre-fabricated cable harnesses are available from Air Comm to expedite installation — consult our sales department for details. Air Comm Systems, Inc. Page 5... - Page 6 4 - Lighting The audio panel is lit by four (4) 28V NVG lamps which provide night time visibility for all panel legends. In the event of a failure of lamps return to Air Comm Systems for replacement. Air Comm Systems, Inc.
-
Page 7: Front Panel Controls
While in the VOX mode, if you wish to quickly isolate yourself from the ICS buss, you simply put the ICS ON/OFF/PVT toggle switch in the “OFF” position. Air Comm Systems, Inc. Page 7... -
Page 8: Front Panel Controls Pictorial
ACS 2080-300 Operations and Installation Manual Front Panel Controls Figure 1 - Front Panel Controls Air Comm Systems, Inc. Page 8... -
Page 9: Instruction For Continued Airworthiness
PURPOSE: To provide instructions for the maintenance and inspection of the Air Comm Systems, Inc. Model ACS-2080 Series Audio Mixer Panels. This Manual provides instructions supplementing the aircraft maintenance manual. These instructions only supersede the aircraft manual in the indicated areas. -
Page 10: Warranty Information
Warranty Information Limited Warranty Information Air Comm Systems, Inc. warrants each new product to be free from defective material and workmanship and agrees to remedy any defect or to furnish a new part in exchange for any defective unit provided an examination discloses such...
