Summary of Contents for Zip SEE855

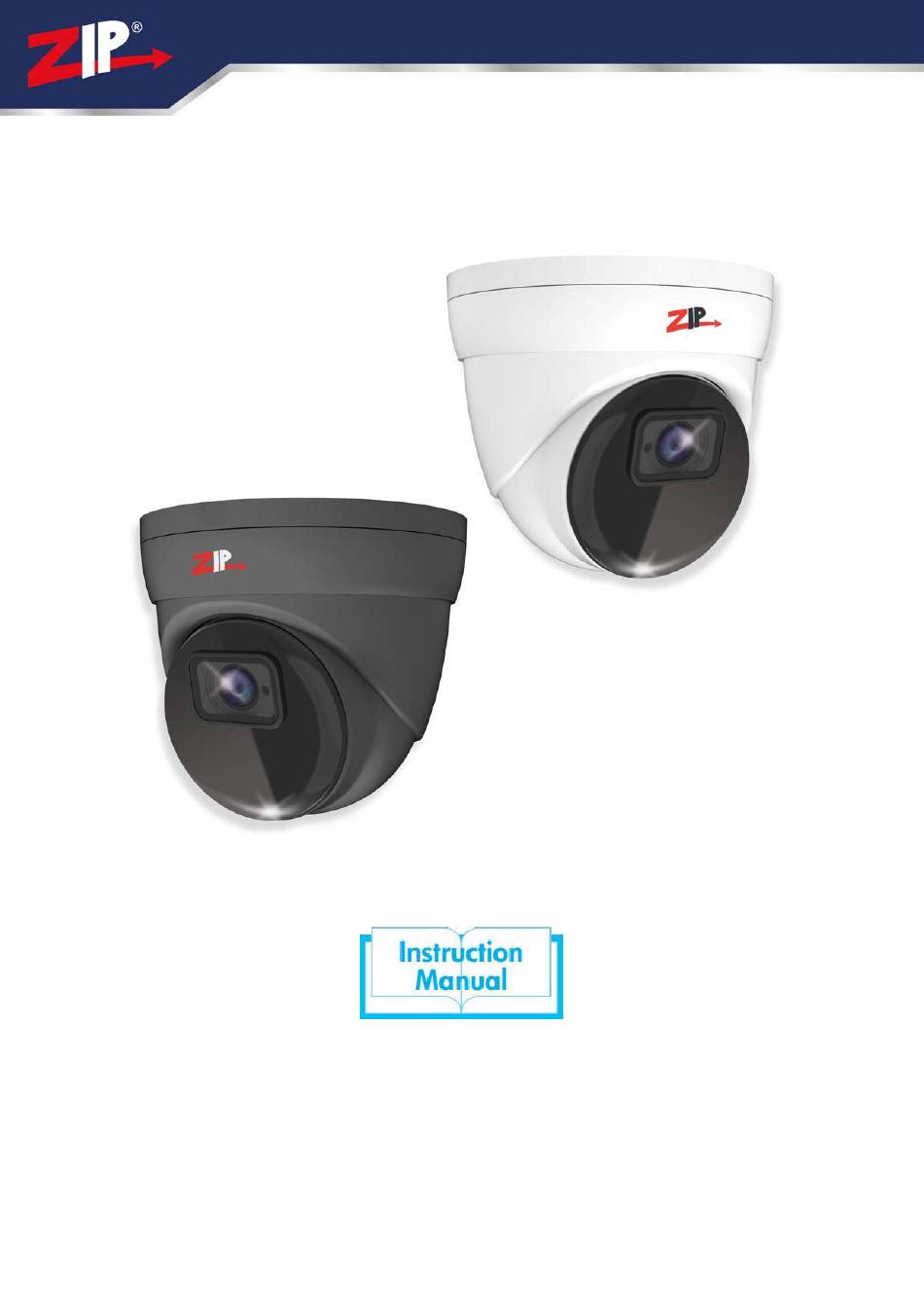

- Page 1 5MP Mini Eyeball 3.6mm Fixed Lens Camera SEE855 © 2021 System Q Ltd ZipDVR.com...
-
Page 2: Table Of Contents
Table of Contents Part 1 Introduction 1 SEE855 ..........................1 Part 2 Tools & Handy Extras Part 3 Connections Part 4 4-In-1 Technology Part 5 Mounting 1 Mini Eyeball ........................3 Part 6 OSD Menu 1 5MP OSD Menu ....................... 5 2 Key Menu Settings ...................... -
Page 3: Part 1 Introduction

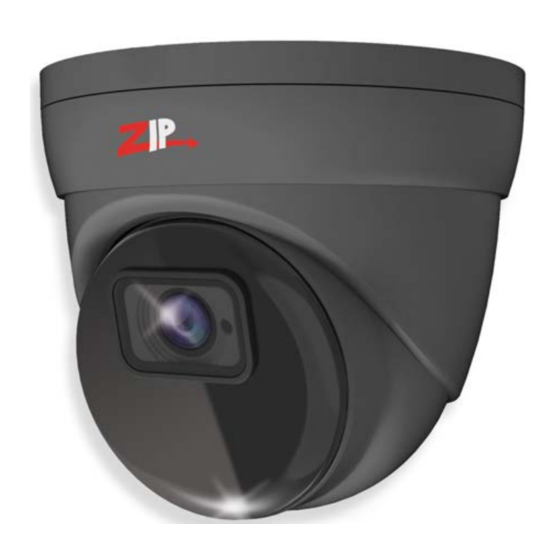

The SEE855 is a Mini Eyeball camera featuring 4-in-1 video technology, ideal when you’re looking for your CCTV system to be more low key. This 5MP model is a perfect match for higher spec DVRs such as the new Zip Supa DVR that can record in 5MP quality. -
Page 4: Part 3 Connections
xSEE615 Connections The camera has a 2.1mm socket which requires 12V DC, use a regulated power supply rated above the current draw of the camera. The camera is polarity sensitive so connections must be correctly made. The camera has a standard BNC connector for the 4-in-1 video output, the output can be changed to AHD, CVI or CVBS if required. -
Page 5: Part 5 Mounting
Mounting Mounting 5.1 Mini Eyeball A template is provided in the box for marking the hole positions for the fixing screws. © 2021 System Q Ltd ZipNVR.com... -
Page 6: Part 6 Osd Menu
OSD Menu Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as default. To access the Cameras Menu via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. -
Page 7: 5Mp Osd Menu
OSD Menu 6.1 5MP OSD Menu BRIGHTNESS 0 ~ 100 (Default 31) EXPOSURE MODE GLOBAL / BLC / FLC 0 ~ 7 (Default 4) RETURN AF MODE SEMI / AUTO / MANUAL ZOOM - / + FOCUS - / + BOOT MODE SAVE POS / WIDE END / TELE END / TDN AD... - Page 8 xSEE615 0 ~ 20 (Default 19) RETURN VIDEO SETTING NO ADJUSTMENT SEE 4-IN-1 SWITCH STANDARD 5MP 20 / 4MP 25 / 4MP 30 / 1080P 25 / 1080P 30 / REBOOT & APPLY RETURN LANGUAGE ENGLISH / SIMPLIFIED CHINESE / TRADITIONAL CHINESE / RUSSIAN / SPANISH / FRENCH / POLISH / ITALIAN / PORTUGUESE OFF / ON...
-
Page 9: Key Menu Settings
OSD Menu 6.2 Key Menu Settings Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for the current light level. The shutter speed will automatically detect the required length of time to keep the digital sensor exposed to light. FLK option sets the shutter speed to stop synchronisation with lighting so that pulsing effect is minimised. -
Page 10: Part 7 Troubleshooting
B. If set to CVBS, then this is a low quality video output for legacy systems (analogue - CVBS), when using a 2 MegaPixel DVR or above then use another video format, like HD-TVI. C. Reset the camera menu via Zip Coaxitron – OSD Menu D. - Page 11 Troubleshooting D. Ensure that the BNC – BNC lead that is connected between the camera and DVR has no shorts between the ground and the centre core (positive) or open circuits along the centre core (positive) or open circuits along the ground. ©...
-
Page 12: Part 8 General Maintenance
xSEE615 General Maintenance · Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. It is recommended to use a damp non-abrasive microfibre cloth. · Routinely check the connections for power and data to ensure no water ingress and corrosion. ·... -
Page 13: Part 9 Specification
Specification Specification 9.1 SEE855 Resolution Lens Type 3.6mm Fixed Image Output 1 Volt Peak-Peak 75 ohm Min.Illumination 0 Lux IR On Day/Night Mechanical (True Day-Night) IR Range Input Voltage 12V DC Current Consumption 300mA (IR On) IP Rating IP66 Video Connection... -
Page 14: Part 10 Conditions
WEE/CG0783SS collection point as defined by your local council. 10.3 Copyright © Copyright 2021 Zip is a registered trademark of System Q Ltd, Chesterfield. Derbyshire. S40 2WB © 2021 System Q Ltd ZipNVR.com... -
Page 15: Index
Index Index - H - Handy Extras - 2 - - M - 2.1mm DC Socket Maintenance - 4 - Mounting - N - 4-In-1 Technology - A - No Image Adjustment - O - - B - OSD Menu Output - P - - C -... - Page 16 xSEE615 - V - Video 2, 8 Video Loss Voltage drop - W - WEEE Declaration © 2021 System Q Ltd ZipNVR.com...
