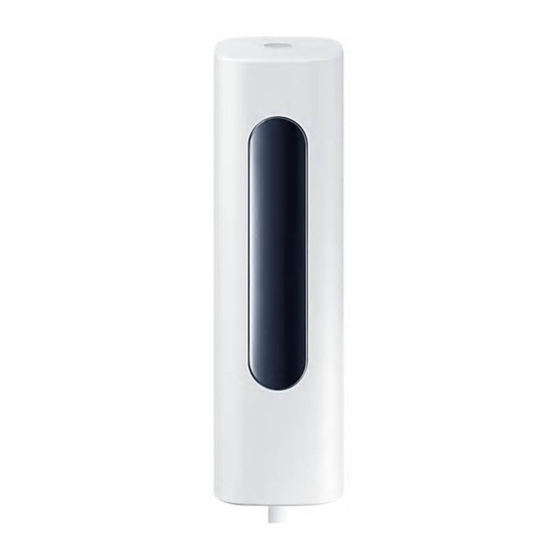

Samsung SmartThings Vision Installation Manual

Welcome to your
SmartThings Vision
Function Button
Smart Light
USB Charging Port
DVS Sensor
Light Sensor
Indicator LED
Holder
Installation Guide
Recommended
installation height ：
1.5m ~ 1.7m
1. Indoor installation is recommended. Avoid installing in wet or humid place, otherwise it
may cause malfunctions.
2. Avoid installing in high temperature environment or near a radiator, heating device,
stove, and other heat sources (including an amplifier).
3. This product must be attached to flat and clean wall surface. Remove the film on the
tape before use. In addition, holder can be attached to iron surface or furniture by
utilizing magnet on the holder.
4. Avoid installing on the appliances that generate vibration, such as refrigerator or air
conditioner. Otherwise it may cause malfunctions.
5. Since this product connects to WI-FI, please avoid installing it near devices that emit
strong EM waves.
Trouble Shooting
1. In the event of Internet is disconnected:
The indicator light shows red. Please check your internet connection.
2. In the event of device fails to operate:
Please unplug the power cable and plug again after 1 minute.If this status persists,
press and hold the function button for more than 7 seconds to reset the device.
※ Reset takes several minutes. Please do not unplug the power cable before indicator LED
status alternately flashes green and red light.
3. In the event of app fails to operate:
Please re-start the app. If this status persists, please visit www.SmartThings.com.
Status LED Status Indicator
Power off No light
Power on Green On
System boot Green Blinking
Alternately flashes
Setting standby status
green and red light
Setting error Red Blinking
Person detected Yellow Blinking for 3 seconds
Function error Red Blinking
Error
Network error Red On
