FC730-4K-N User Manual
FC730-4K-N User Manual

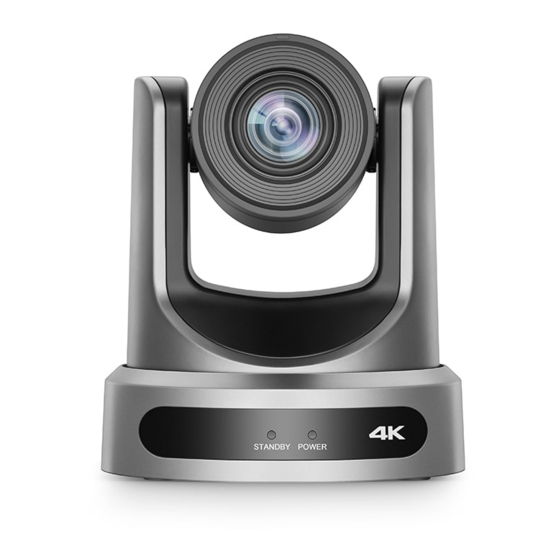

Model : FC730-4K-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC730-4K-N and is the answer not in the manual?

Questions and answers

Related Manuals for FS FC730-4K-N

Summary of Contents for FS FC730-4K-N

  • Page 1 FC730-4K-N User Manual FC730-4K-N User Manual Model : FC730-4K-N...

  • Page 2: Table Of Contents

    FC730-4K-N USER MANUAL CONTENTS 1. Note ....................................4 2. Packing List ..................................4 3. Quick Start ..................................4 4. System Select Video Format .............................. 5 5. About Product ..................................6 5.1 Features ..........................................6 5.2 Product Specification ....................................... 6 5.3 Interfaces and Buttons ..................................... 7 5.4 Dimension ........................................
  • Page 3 FC730-4K-N USER MANUAL 7.6.7 Device Information ...................................... 27 7.7 Download the Upgrade Program .................................. 27 8. Maintenance and Troubleshooting ..........................27 www.fs.com...

  • Page 4: Note

    FC730-4K-N USER MANUAL 1.Note Electric Safety Installation and operation must accord with electric safety standard. Use Caution to Transport Avoid stress, vibration or soakage in transport, storage and installation. Polarity of Power Supply The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power supply plug drawing shows as below.

  • Page 5: System Select Video Format

    FC730-4K-N USER MANUAL 2. Connect the power adapter to the power connector on the rear panel of the camera. The power indicator on the front panel of the camera is on. 3.After the camera is powered on, it starts to initialize, right up to the limit position, and then both horizontal and vertical go to the middle position, the motor stops running, and the initialization is completed.

  • Page 6: About Product

    FC730-4K-N USER MANUAL 5.About Product 5.1 Features 4K Ultra HD With a new generation of SONY 1/1.8-inch, maximum 8.42 million pixels high-quality UHD CMOS sensor, 4K (3840x2160) ultra-high resolution images are available. And backward compatible with 1080P, 720P and other resolutions.

  • Page 7: Interfaces And Buttons

    FC730-4K-N USER MANUAL MJPEG: max to 2160P@30fps USB Audio Support USB Video Protocol UVC 1.1 UVC PTZ Support Network Features Video Compression H.264/H.265/MJPEG Video Stream First Stream, Second Stream First Stream Resolution 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 1920x1080, 1280x720, 1024x576, 720x576 (50Hz support), 720x480 (60Hz support),...
  • Page 8 FC730-4K-N USER MANUAL Item Name LINE IN Interface LINE OUT Interface System Select Switch RS485 Interface RS232 IN Interface RS232 OUT Interface DC 12V Interface Network Interface USB 2.0 Interface USB 3.0 Interface 3G-SDI Interface HDMI Interface RESTORE Button www.fs.com...

  • Page 9: Dimension

    FC730-4K-N USER MANUAL 5.4 Dimension 5.5 Remote Control www.fs.com...
  • Page 10 FC730-4K-N USER MANUAL Key Description 1. Standby Key Press this button to enter standby mode. Press it again to enter normal mode. Note: Power consumption in standby mode is approximately half of the normal mode 2. Number Key To set preset or call preset.
  • Page 11 FC730-4K-N USER MANUAL Used for focus adjustment. Press [AUTO] adjust the focuses on the center of the object automatically. Press [MANUAL] adjust the focus on the center of the object manual. MANUAL button, and adjust it with [Far] (Focus on far object) and [NEAR] (Focus on near object).

  • Page 12: Rs232 Interface

    FC730-4K-N USER MANUAL 5.6 RS232 Interface Function IR OUT The correspondence between the camera and Windows DB-9 pin: Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI The correspondence between the camera and the Mini DIN pin:...

  • Page 13: Serial Communication Control

    FC730-4K-N USER MANUAL 5.8 Serial Communication Control RS232 Communication Control The camera is controlled via RS232. The RS232 serial port parameters are as follows: Baud rate: 2400/4800/9600/38400; Starting Position: 1 bit Data bit: 8 bits Stop bit: 1 bit Check digit: None...

  • Page 14: Exposure

    FC730-4K-N USER MANUAL MENU [Home] Enter [Menu] Exit 6.2 EXPOSURE Move the main menu cursor to [EXPOSURE], and press [HOME] key enter the exposure page, as shown in the following figure. EXPOSURE Mode Auto ExpCompMode Backlight Gain Limit Anti-Flicker 50Hz...

  • Page 15: Image

    FC730-4K-N USER MANUAL RG Tuning: Optional items: -10 ~ +10(Effective only in Auto mode). BG Tuning: Optional items: -10 ~ +10(Effective only in Auto mode). Saturation: Optional items: 60% ~ 200%. Hue: Optional items: 0 ~ 14. RG: Red gain, optional items: 0 ~ 255 (Effective only in Manual mode).

  • Page 16: Noise Reduction

    FC730-4K-N USER MANUAL P/T/Z [Menu] Back SpeedByZoom: The depth of field scale switch, optional items: On, Off. AF-Zone: Interested in focusing area, optional items: Front, Top, Center, Bottom. AF-Sense: Automatic focusing sensitivity options, optional items: Low, Normal, High. L/R Set: Optional items: STD, REV.

  • Page 17: Restore Default

    FC730-4K-N USER MANUAL Move the main menu cursor to [COMMUNICATION SETUP], and press [HOME] key enter the communication setup page, as shown in the following figure. COMMUNICATION SETUP Protocol VISCA V_Address V_AddrFix Net Mode Serial Baudrate 9600 Select Item Change Value [Menu] Back Protocol: Control protocol type, optional items: Auto, VISCA, PELCO-D, PELCO-P.

  • Page 18: Camera Controlled By Lan

    FC730-4K-N USER MANUAL Connect by Network Cable: Connect by Switch/Router: 7.4 Camera Controlled by LAN 7.4.1 Setup IP Address If you don't know camera IP, view as below: Method 1: Press * and # and 4 on remote controller one by one, the camera IP address will be shown on screen.
  • Page 19 FC730-4K-N USER MANUAL Method 2: Open “upgrade_En.exe”, change IP and click “Set”. After modified, the video conference camera will be restart. Change IP address: Step 1 Search the IP address of camera. Step 2 Select the camera IP of you want to change.

  • Page 20: Visit/Access Camera

    FC730-4K-N USER MANUAL 7.4.2 Visit/Access Camera Input http://192.168.100.88 to IE (better with IE web browser, others will cause little latency), a login window pop up, input username: admin, password: admin, shown as below: After login, shown as below: IE browser does not support H5, you need to use VLC plug-in to view videos. Please visit VLC website (http://www.videolan.org/vlc) download and install the 32-bit VLC media player, after it installed, visit video conference camera will have normal image display.

  • Page 21: Vlc Stream Media Player Monitor

    FC730-4K-N USER MANUAL If the camera port default is 80, then unnecessary to input port number, use host name can access camera directly. 7.5.3 VLC Stream Media Player Monitor Visit VLC Media Server Procedure Step 1 Open VLC media player.
  • Page 22 FC730-4K-N USER MANUAL Status bar in viewing window shown as below: 1.Video playback pause button: control real-time video pause, stop the last picture, click recoverable video again. 2.Audio control buttons: can adjust the volume or set silent mode. 3.Full screen switch button.

  • Page 23: Video Settings

    FC730-4K-N USER MANUAL 7.6.2 Video Settings HDMI/SDI Output Support HDMI and SDI Output. VideoFormat Support 50Hz(PAL) and 60Hz(NTSC), and Dial Priority three formats. Encode Level Support mainprofile and highprofile two levels. Encode Protocol Support H.264, H.265 and MJPEG three protocols.

  • Page 24: Image Settings

    FC730-4K-N USER MANUAL 7.6.3 Image Settings Brightness Image bright 0 ~ 14, slider control, on the right shows the corresponding numerical. Default value is 7. Saturation Saturation 0 ~ 14, slider control, on the right shows the corresponding numerical. Default value is 5.

  • Page 25: System Settings

    FC730-4K-N USER MANUAL Input Type Optional items: Line in. Input Vol L The volume of the left channel. Input Vol R The volume of the right channel. ADTS Options Optional items: On, Off. 7.6.5 System Settings Reboot Click the “Reboot” button, system restart.

  • Page 26: Network Settings

    FC730-4K-N USER MANUAL 7.6.6 Network Settings Lan Settings Default the IP address is 192.168.100.88, the MAC address cannot be modified. Port Settings A. HTTP Port IP address identifies the network device, the device can run multiple web applications, each network program using network port to transmit data, so data transmission to be carried out between the port and port.
  • Page 27 FC730-4K-N USER MANUAL Turn On/Off ONVIF and ONVIF auth. Multicast Settings Turn On/Off multicast. Setting the multicast address (default value is 224.1.2.3) and port (default value is 6688, then 6688 is the multicast port of the first stream; 6690 is the multicast port of the second stream).
  • Page 28 FC730-4K-N USER MANUAL 4.Check whether the MAC address is conflicts. 5.Check whether the web port is occupied by another device. Forget the IP address or login password Please remember (The default IP address: 192.168.100.88; default user name: admin; default password: admin).
