Single Line Telephone
AT-10
USER'S GUIDE

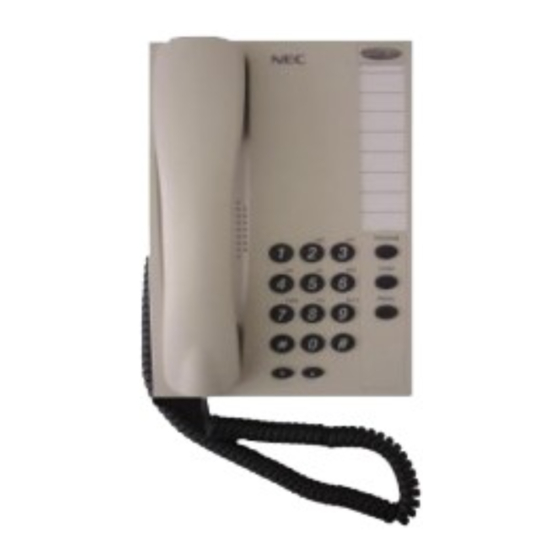

LOCATION OF CONTROLS
Dial Keys
Receiver Volume Controls
Wall Mount Concave
FEATURES
Making a Call
1. Lift handset.
2. Hear dial tone.
3. Dial number.
Last Number Redial
1. Lift handset.
2. Press
key to redial your last call (up to 31 digits).
Redial after flashing is not available.
Flash
While on a call, press
key for outside line or PBX features.
Pulse to Tone Switching
When placing a call in DP (Pulse) mode, you can dial
dialing. The dial mode automatically reverts to DP mode when you hang up.
Adjusting Receiver Volume
1. Press keys to increase/decrease handset receiver volume while on a call.
Volume can be increased 3 levels, decreased 2 levels against the default level.
Selecting Ringing Pitch and Ringing Volume
1. Lift handset.
2. Press
key.
3. Dial
.
4. Dial
—
(Refer to the table in the right).
5. Press
key.
6. Hang up.
If you lift handset after setting to "0"(Off), the ringing tone automatically reverts to
the previous value.
Message Waiting Lamp
Message Waiting Lamp lights when you have messages waiting (if your PBX system can
send them). Also flashes when your telephone rings.
Message Waiting Lamp
PROGRAM Key
FLASH Key
REDIAL Key
Handset Holder
LINE Jack
HANDSET Jack
Dial Mode Switch
Answering a Call
1. Lift handset when the phone rings.
to change to MF (Tone)
Ringing Volume
Soft
Medium Loud
Slow
1
2
Ringing
Medium
4
5
Tone
Fast
7
8
Pitch
Off
0
(Default: 6)
INSTALLATION
Package Contents
Telephone Set
Installing the Telephone
1. Fit the other end of telephone line cord to your telephone network outlet.
Selecting Dial Mode
Set the Dial Mode Switch either to DP(Pulse) or MF(Tone) according to the telephone
network. For installation on a PBX, check with your supplier for the correct dialing mode.
Wall-Mounting
To wall-mount the phone:
1. Mark off the correct positions for the screws (included), 83.5mm apart vertically
opposed before drilling the wall.
2. Install the screw into the wooden wall.
3. Mount the telephone on the wall so that the screw head inserts into the concave on
bottom of the telephone.
Screw
To store the handset without hanging up:
1. Hang the handset on the handset holder.
CARE AND MAINTENANCE
1. Avoid installing the phone where there is direct sunlight, or near heating appliances,
since this may cause discoloration and warping.
2. When the telephone becomes dirty, wet a soft cloth with diluted neutral detergent,
wring it out and wipe. Do not use strong cleaning agent or abrasive powder.
3. Keep away from TV sets, radios, etc. which may generate electrical noise.
4. Avoid dropping the handset and other rough treatment.
Warning:
The handset receiver may retain dangerous materials such as metallic pins and staples
because the receiver induces magnet.
CHECKLIST FOR TROUBLESHOOTING
Does the hookswitch pop up ?
Is the dial mode switch (DP/MF) set to the correct position ?
Are phone line cord and handset cord securely plugged in ?
If you disconnect the phone from the network, the data in phone's memory such
as redial number and ringing tone assignment will be erased (back to default) in a
few hours.
For other problems, contact your supplier.
3
6
9
Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of,
or representation with respect to, any of the equipment covered. This manual is subject to change without
notice and NEC has no obligation to provide any updates or corrections to this manual.
Tokyo, Japan
Wall-mount screws
(2 pieces)
User's Guide
83.5mm
MM6017-1010
