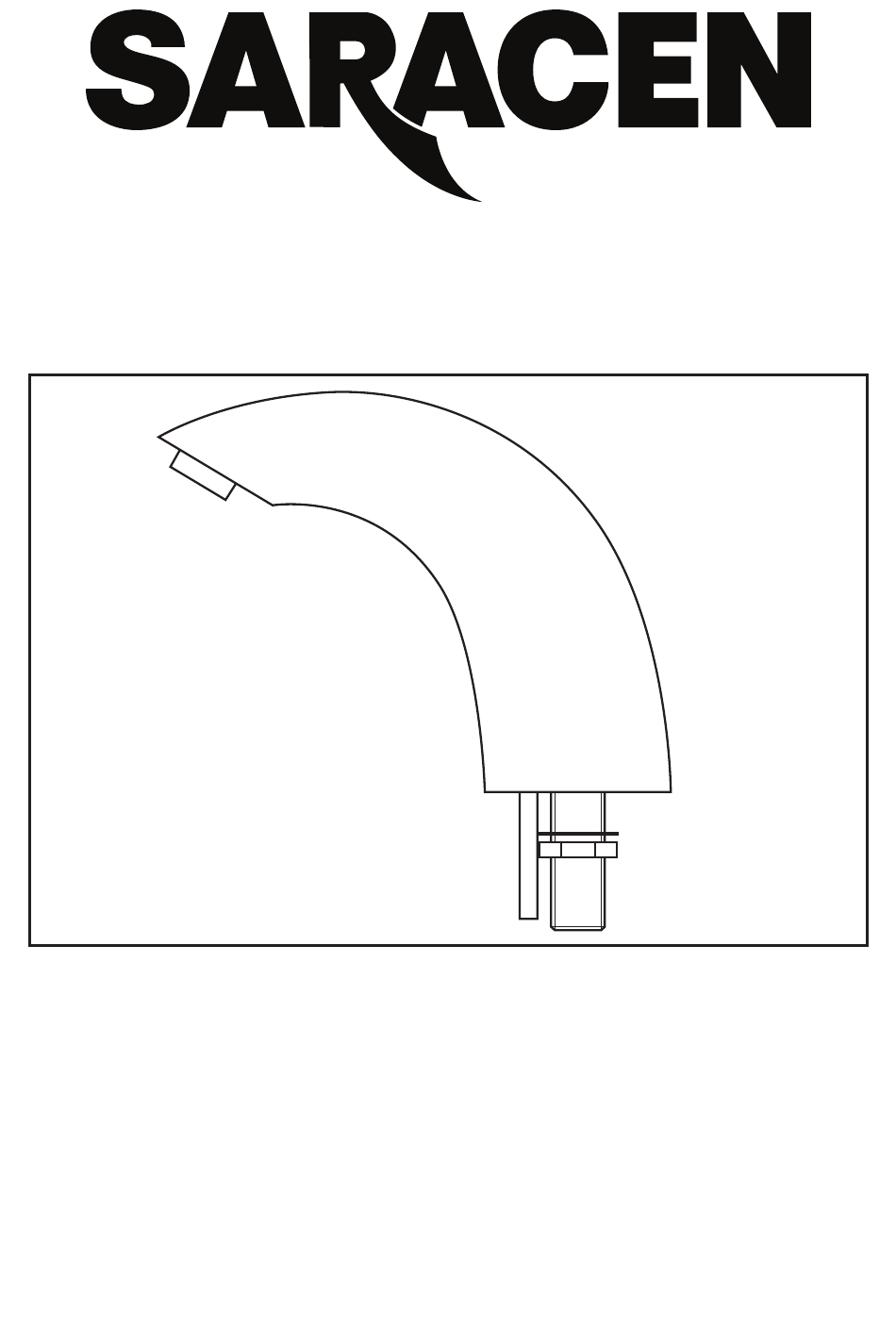

- Page 1 Eco IR Basin Tap Installation and Maintenance Guide A basin mounted tap with pre-programmed infra-red sensor; mains or battery supply.
- Page 2 15mm 15mm 15mm Installation Ensure the o-ring is positioned on the bottom of the Saracen IR Eco Tap, and place the deck plate on the threaded shank. Feed the connection cable though the chosen hole in the basin or 15mm counter top, position the tap and use the plastic cushion lock washer and nut to secure.
- Page 3 Mark the position on the wall ready for mounting; drill suitable holes, insert the rawl plugs and secure the control box using the screws provided. Secure and tighten the flexible hose from the tap connection to the solenoid outlet. Attached the other flexible hose provided to the inlet connection on the solenoid valve and tighten to form a seal.
- Page 4 Activation & Maintenance User Activation Water will flow from the tap when hands are close to the IR eye and will stop immediately upon leaving this area of vision. If the IR sensor is activated for a period longer than 1 minute the water supply will automatically stop but can be reactivated again Sensing Range The IR sensor is factory set to a sensing distance of 15cm.
- Page 5 Batteries If the batteries are dead the LED will flicker 3 times in 1 sec, if this happens the batteries will need to be replaced. 1. Remove the cover from the control box. 2. Remove the battery box and open the cover to access the batteries.
- Page 6 Aftercare Saracen electronic taps have a high quality finish and should be treated with care. An occasional wipe with a mild detergent on a soft damp cloth followed by a thorough rinse and wipe dry with a soft clean cloth is all that is required.
- Page 8 Wolseley UK Warwickshire, CV31 3HH For further information please call 01926 705000 or visit www.wolseley.co.uk Wolseley UK reserves the right to make changes to the product which may effect the accuracy of the information contained in this guide. ZINS300220_002_12-14...
