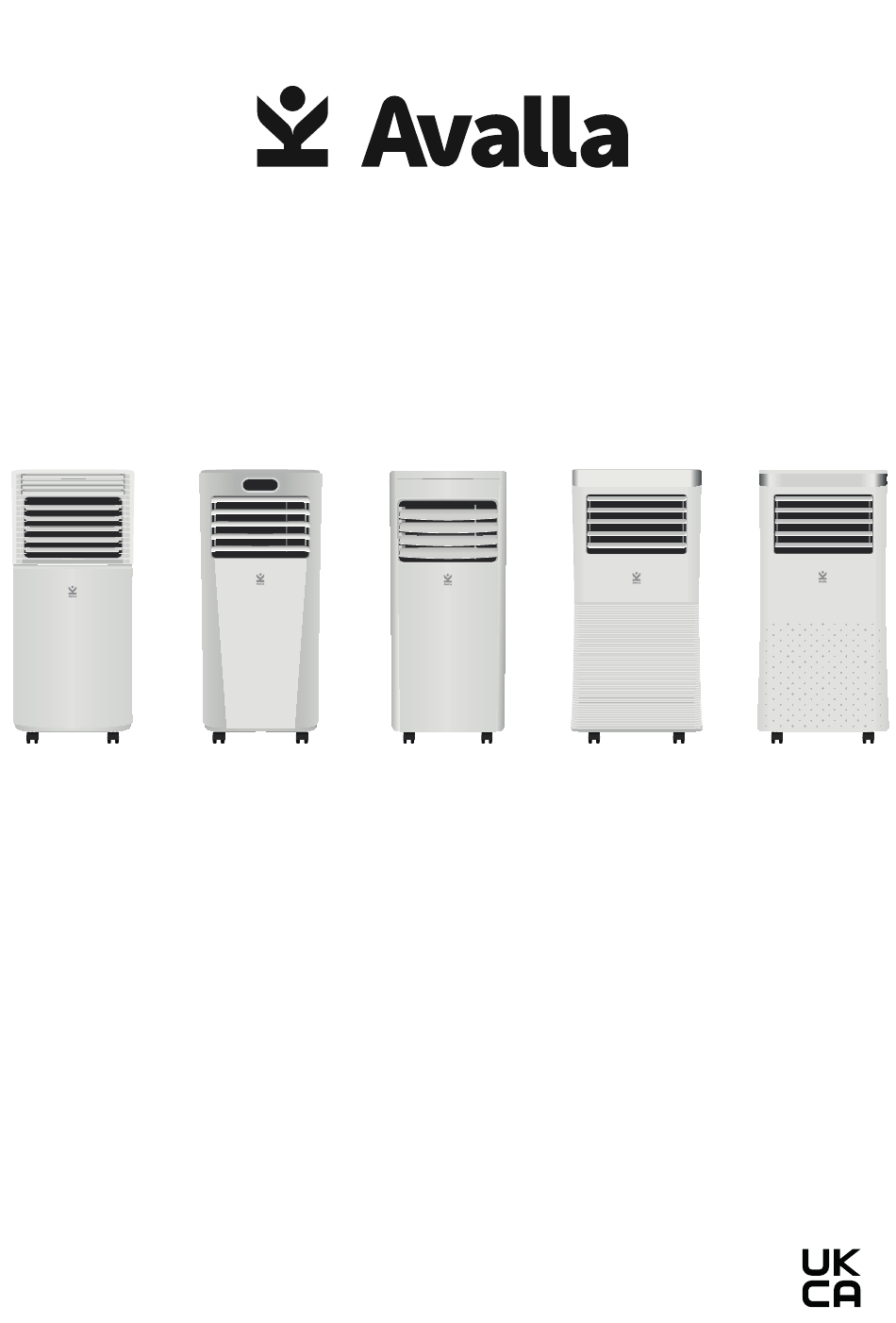

- Page 1 Air Conditioner S-80 S-95 S-150 S-200 S-290 Read this manual carefully before use and keep it for future reference. Failure to do so may result in injury, property damage and may void the warranty.
-
Page 2: Table Of Contents
Contents Contents Quick start guide • Hose connection and setup Parts guide: S-80 Parts guide: S-95 Parts guide: S-150 Parts guide: S-200 Parts guide: S-290 Features and guidance • Settings • Remote Control • Timer function • Built-in automatic protections •... -
Page 3: Quick Start Guide
Quick start guide Hose connection and setup Place the unit on a level surface with at least 50cm of free space around it, to allow good air circulation. Allow the unit to stand upright for at least 24 hours after delivery or being stored on its side. Attach the hose connector to one end of the exhaust hose. -
Page 4: Parts Guide
Parts guide: S-80 Control panel Continuous drain outlet Adjustable cool air outlet Air exhaust Filtered air inlet Drain outlet Touch controls Display Lock Lock active Sleep Sleep active Timer Timer active Low speed Down High speed Speed Fan mode Mode... -
Page 5: Parts Guide
Parts guide: S-95 Control panel Continuous drain outlet Adjustable cool air outlet Air exhaust Filtered air inlet Drain outlet Touch controls Display Timer Timer active Down Low speed High speed Speed Cool mode Mode Dehumidifier mode Power Fan mode Power on... -
Page 6: Parts Guide: S-150
Parts guide: S-150 Control panel Continuous drain outlet Adjustable cool air outlet Air exhaust Air inlet with air filter Drain outlet Touch controls Display Lock Lock active Sleep Sleep active Timer Timer active Low speed Down High speed Speed Fan mode Mode Cool mode Power... -
Page 7: Parts Guide: S-200
Parts guide: S-200 Control panel Continuous drain outlet Adjustable cool air outlet Air exhaust Air inlet with air filter Drain outlet Touch controls Display Speed Low speed Down High speed Cooling mode Timer Dehumidifier mode Mode Fan mode Power... -
Page 8: Parts Guide: S-290
Parts guide: S-290 Control panel Continuous drain outlet Adjustable cool air outlet Air exhaust Air inlet with air filter Drain outlet Touch controls Display Timer Low speed Speed High speed Cooling mode Down Dehumidifier mode Lock Fan mode Mode Power... -
Page 9: Features And Guidance
The fan speed is not adjustable on dehumidifier mode. Note: Auto-shut off will occur when tank (0.6L) is full and ‘FT’ will show in the display. Child lock (S-80, S-150 models) - Disables button use when enabled • Press and hold Lock until the lock symbol lights up. -
Page 10: Remote Control
Remote Control Fan speed - high to low Mode select Sleep active - on/off Celsius / Fahrenheit display Timer - on/off toggle Mode - up/down Power - on/off The remote control doubles up the functions of the control panel for convenient operation at a distance. Timer function The timer has two ways of operating: To turn the air conditioner on (when power is off) -
Page 11: Built-In Automatic Protections
Allow the filter to air dry completely before reinstalling. Warning: Do not touch the air inlet or the evaporator surface, located behind the filter. Doing so could cause injury. Always ensure the filter is completely dry before reinstalling into the unit. Specifications S-80 S-95 S-150 S-200 S-290... -
Page 12: Storage
Drainage The self-evaporating system (all models excluding S-80) uses the collected water to cool the condenser coils, maximising performance and efficiency. There is no need to empty the drainage tank for this cooling operation except when using the dehumidifier mode or in high humidity conditions as typically the condensate water evaporates into the exhaust outlet. -
Page 13: Troubleshooting
Troubleshooting Issue Cause identification Solution Is the water level indicator Empty the drain pan illuminated? The unit does not operate What is the room Operating range 5°C - 35°C temperature? Is the air filter clogged? Clean the air filter Clear any obstacle or Is the hose blocked? blockage The unit operates... -
Page 14: Health And Safety
Health and safety General safety instructions • The following must always be observed for safety This appliance is not intended to be used by children. Persons with lack of experience or knowledge, reduced physical, sensory, or mental capabilities, can use this appliance if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards •... -
Page 15: Servicing Safety Precautions
Servicing safety precautions Please carefully follow this guidance when undertaking any servicing on this appliance. Any servicing must be carried out by a suitably qualified and registered individual. Prior to beginning work, safety checks are necessary to ensure that the risk of ignition is minimized. -
Page 16: Connection To The Power Supply
If in doubt, ensure that the entire cable is unwound. Using a coiled extension lead will generate heat which could melt the lead and cause a fire. Avalla Ltd. Unit A 73, Common Road, Chandler’s Ford, Eastleigh, SO53 1HE. United Kingdom Company no. 13477899...
