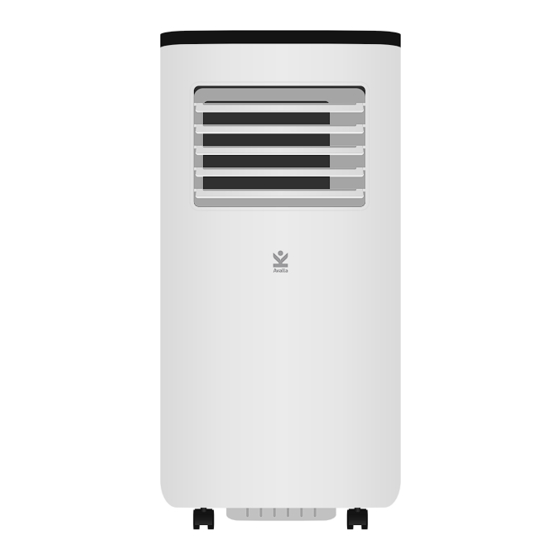

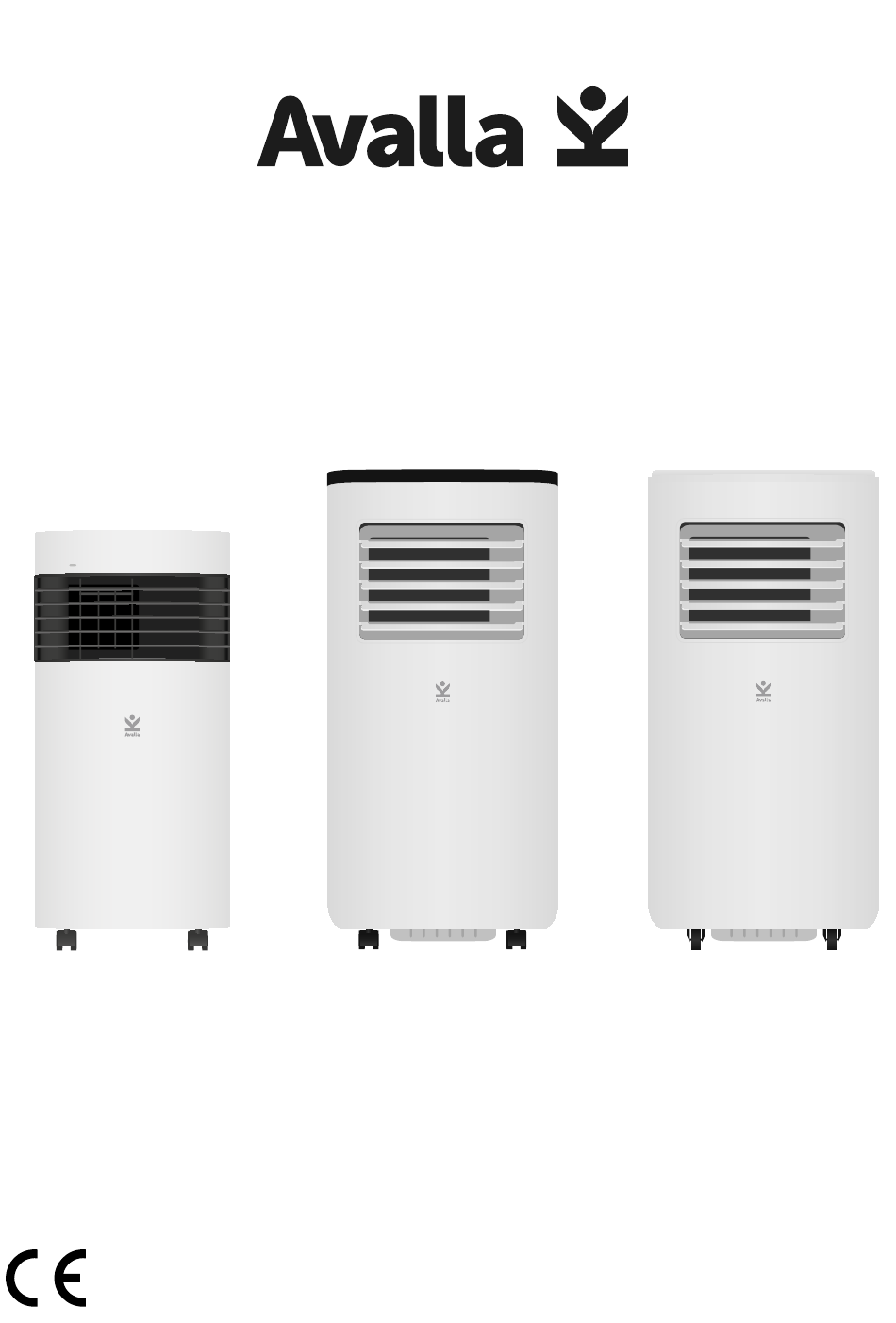

- Page 1 Air Conditioner S-50 S-220 S-360 Read this manual carefully before use and keep it for future reference. Failure to do so may result in injury, property damage and may void the warranty.
-
Page 2: Table Of Contents
Contents Quick start guide • Hose connection and setup Parts guide: S-50 Parts guide: S-220 Parts guide: S-360 Features and guidance • Settings Timer function Remote Control Specifications Built-in automatic protections • Automatic Defrost • Overload Protection Drainage Maintenance and storage •... -
Page 3: Quick Start Guide
Quick start guide Hose connection and setup Place the unit on a level surface with at least 50cm of free space around it, to allow good air circulation. Allow the unit to stand upright for at least 24 hours after delivery or being stored on its side. Attach the hose connector to one end of the exhaust hose. -
Page 4: Parts Guide
Parts guide: S-50 Control panel Hot air exhaust Adjustable cool air outlet Drain outlet Filtered air inlet Touch controls Display Sleep active Sleep Timer active Timer Low speed High speed Down Fan mode Speed Cool mode Mode Dehumidifier mode Power... -
Page 5: Parts Guide: S-220
Parts guide: S-220 Control panel Hot air exhaust Adjustable cool air outlet Drain outlet Filtered air inlet Touch controls Display Sleep active Sleep Low speed Timer High speed Auto mode Down Cool mode Dehumidifier mode Speed Fan mode Mode Power on Power Lock active Swing... -
Page 6: Parts Guide: S-360
Parts guide: S-360 Control panel Air exhaust Adjustable cool air outlet Drain outlet Filtered air inlet Touch controls Display Sleep active Sleep Timer active Timer Low speed High speed Down Fan mode Speed Cool mode Mode Dehumidifier mode Power Auto mode... -
Page 7: Features And Guidance
Features and guidance Settings Auto Mode - switches between cooling and fan mode. • When the room temperature is above 24 C the unit will switch to Cooling Mode • When the room temperature is below 24 C the unit will switch to Fan Mode Cooling Mode –... -
Page 8: Timer Function
Child Lock (S220) - disables button use when enabled • Press and hold Sleep mode until the lock symbol lights up. • Press and hold again to disable lock feature. Swing Setting (S220) - turns automatic louvres on or off Timer function The timer has two ways of operating: To turn the air conditioner on (when power is off) -
Page 9: Remote Control
Remote Control The remote control doubles up the functions of the control panel for convenient operation at a distance. S-220 S-50 / S-360 Power Mode select Settings - up/down Fan speed Timer - on/off Sleep mode - on/off Swing setting - on/off... -
Page 10: Built-In Automatic Protections
Built-in automatic protections Automatic Defrost When operating at low room temperatures, frost may build up on the evaporator. If this happens, the Power LED will begin blinking and the unit will automatically stop for a short time to carry out its automatic defrosting procedure. -
Page 11: Maintenance And Storage
Maintenance and storage Cleaning the air filter Excess dust can cause airflow to become restricted which will reduce efficiency and it can damage to the unit. The filter should be cleaned regularly. • Ensure the unit is switched off and unplugged from the mains power. -
Page 12: Troubleshooting
Troubleshooting Issue Cause identification Solution Is the water level indicator Empty the drain pan illuminated? The unit does not operate Operating range: What is the room 5°C - 35°C (A/C) / 15°C - 35°C temperature? (Dehumidifier) Is the air filter clogged? Clean the air filter Clear any obstacle or Is the hose blocked? -
Page 13: Health And Safety
Health and safety General safety instructions • • The following must always be observed for safety This appliance is not intended to be used by children. Persons with lack of experience or knowledge, reduced physical, sensory, or mental capabilities, can use this appliance if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards •... -
Page 14: Servicing Safety Precautions
Servicing safety precautions Please carefully follow this guidance when undertaking any servicing on this appliance. Any servicing must be carried out by a suitably qualified and registered individual. Prior to beginning work, safety checks are necessary to ensure that the risk of ignition is minimized. -
Page 15: Connection To The Power Supply
If in doubt, ensure that the entire cable is unwound. Using a coiled extension lead will generate heat which could melt the lead and cause a fire. Avalla Ltd. Unit A 73, Common Road, Chandler’s Ford, Eastleigh, SO53 1HE. United Kingdom Company no. 13477899...
