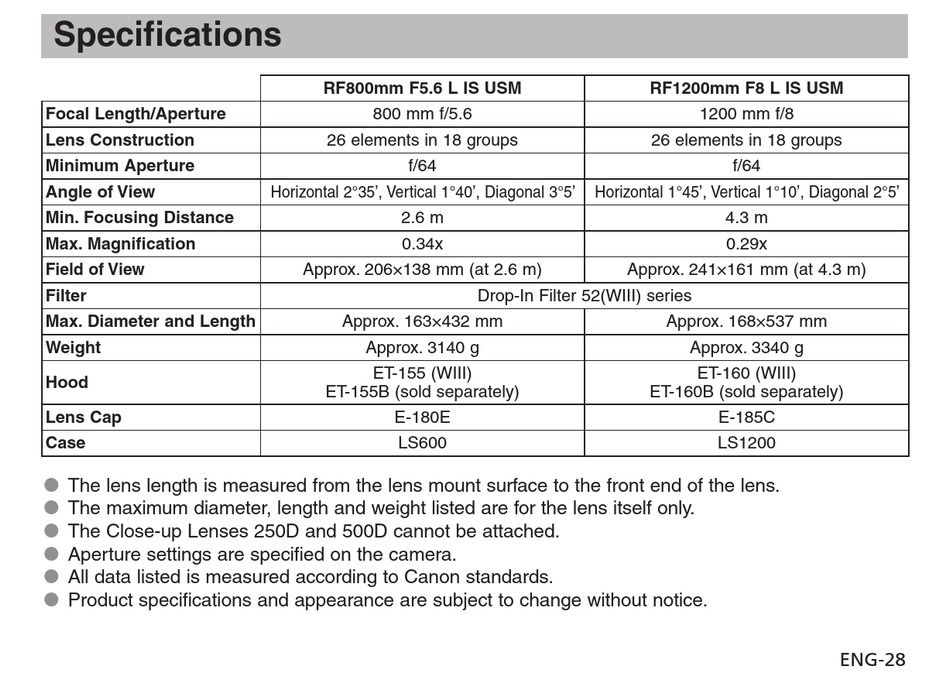

Specifications
Focal Length/Aperture
Lens Construction
Minimum Aperture
Angle of View
Min. Focusing Distance
Max. Magnification
Field of View
Filter
Max. Diameter and Length
Weight
Hood
Lens Cap
Case
The lens length is measured from the lens mount surface to the front end of the lens.
O
O
The maximum diameter, length and weight listed are for the lens itself only.
O
O
The Close-up Lenses 250D and 500D cannot be attached.
O
O
Aperture settings are specified on the camera.
O
O
All data listed is measured according to Canon standards.
O
O
Product specifications and appearance are subject to change without notice.
O
O
RF800mm F5.6 L IS USM
800 mm f/5.6
26 elements in 18 groups
f/64
Horizontal 2°35', Vertical 1°40', Diagonal 3°5'
2.6 m
0.34x
Approx. 206×138 mm (at 2.6 m)
Approx. 163×432 mm
Approx. 3140 g
ET-155 (WIII)
ET-155B (sold separately)
E-180E
LS600
RF1200mm F8 L IS USM
26 elements in 18 groups
Horizontal 1°45', Vertical 1°10', Diagonal 2°5'
Approx. 241×161 mm (at 4.3 m)
Drop-In Filter 52(WIII) series
ET-160B (sold separately)
1200 mm f/8
f/64
4.3 m
0.29x
Approx. 168×537 mm
Approx. 3340 g
ET-160 (WIII)
E-185C
LS1200
ENG-28
