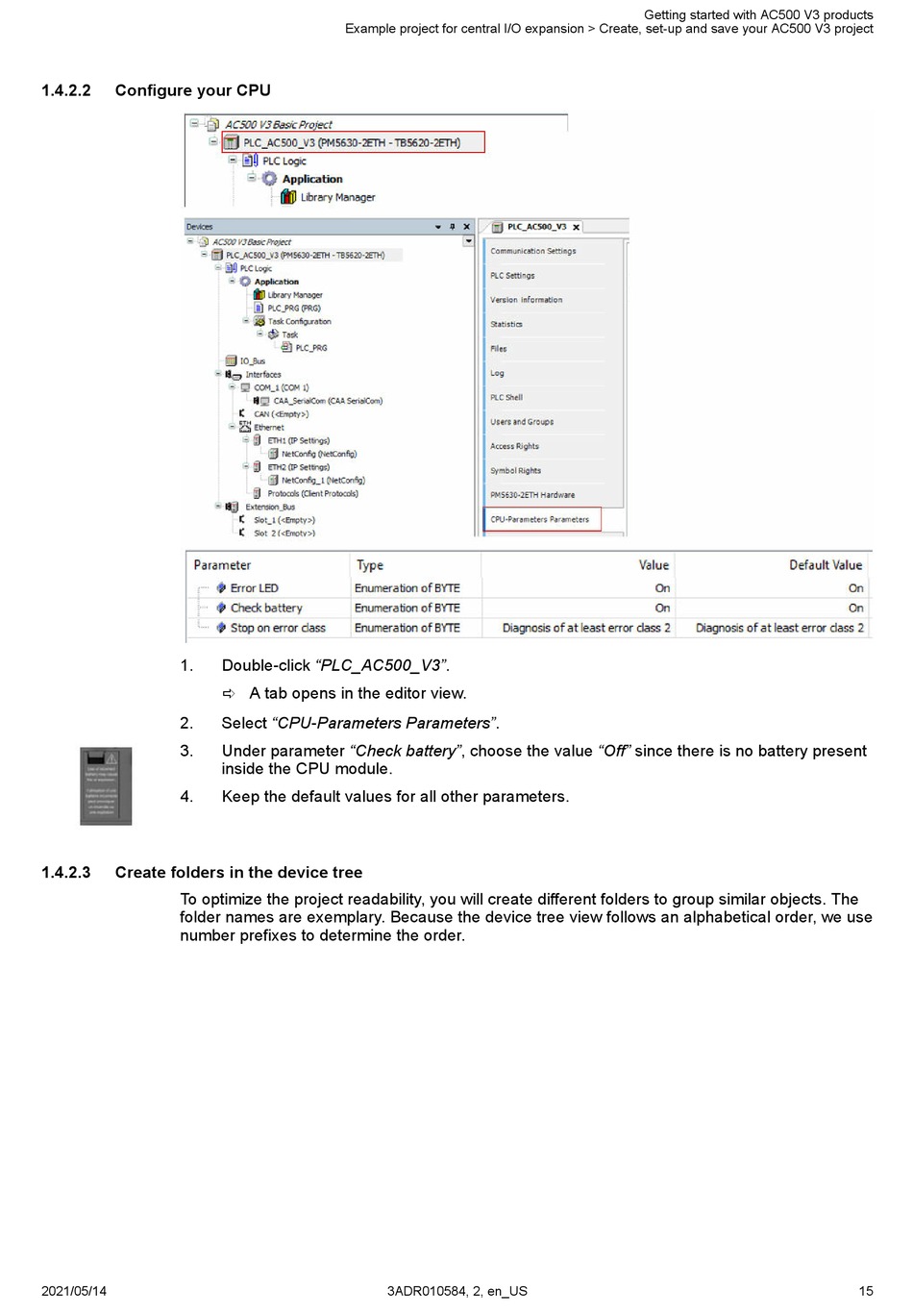

1.4.2.2 Configure your CPU
1.
2.
3.
4.
1.4.2.3 Create folders in the device tree
To optimize the project readability, you will create different folders to group similar objects. The
folder names are exemplary. Because the device tree view follows an alphabetical order, we use
number prefixes to determine the order.
2021/05/14
Example project for central I/O expansion > Create, set-up and save your AC500 V3 project
Double-click "PLC_AC500_V3".
ð A tab opens in the editor view.
Select "CPU-Parameters Parameters".
Under parameter "Check battery", choose the value "Off" since there is no battery present
inside the CPU module.
Keep the default values for all other parameters.
3ADR010584, 2, en_US
Getting started with AC500 V3 products
15
