KOCOM KC-MC22 Wiring Diagram And Installation Instructions

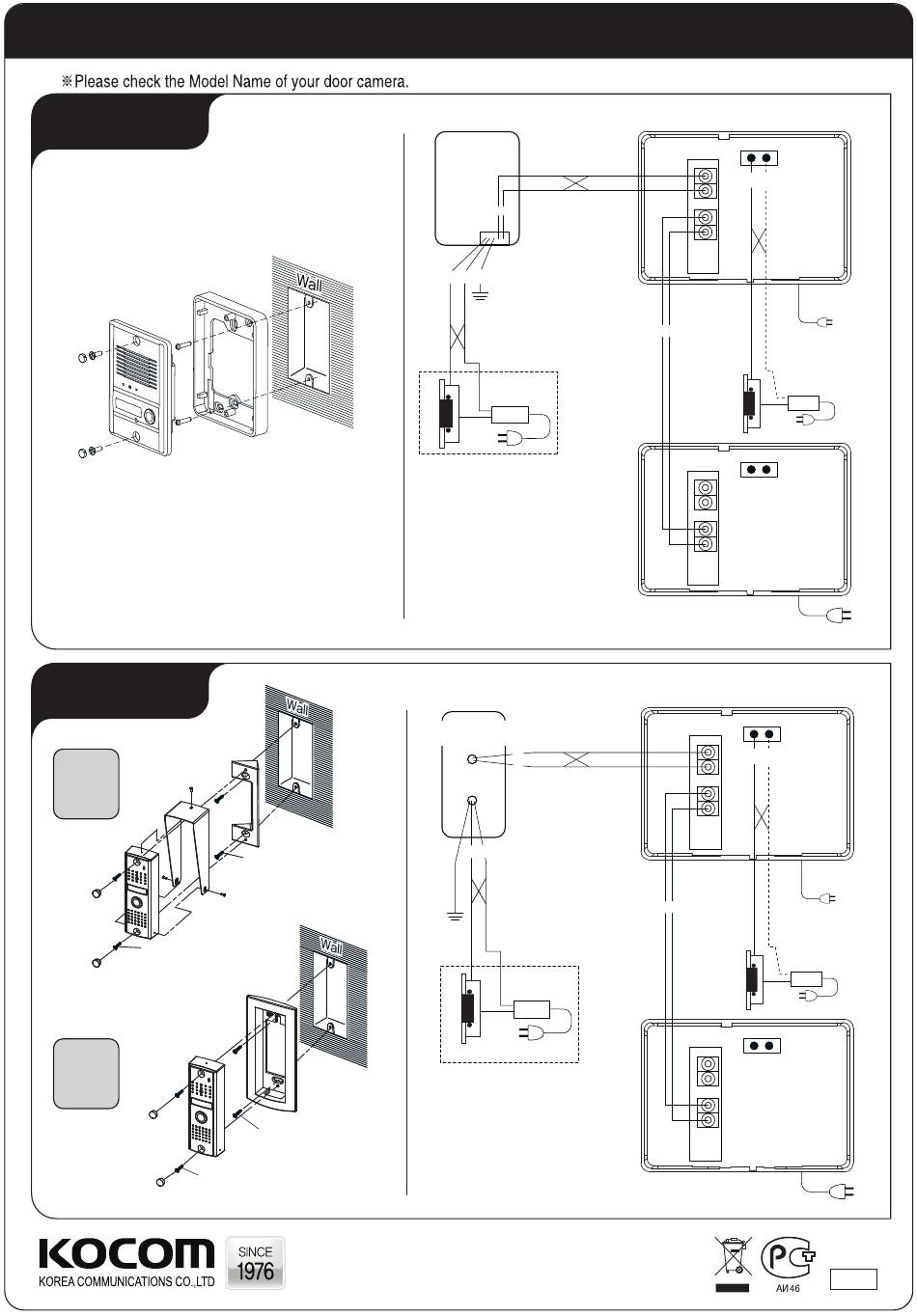

Wiring Diagram and Installation of 2 Wire Color Door Camera Series

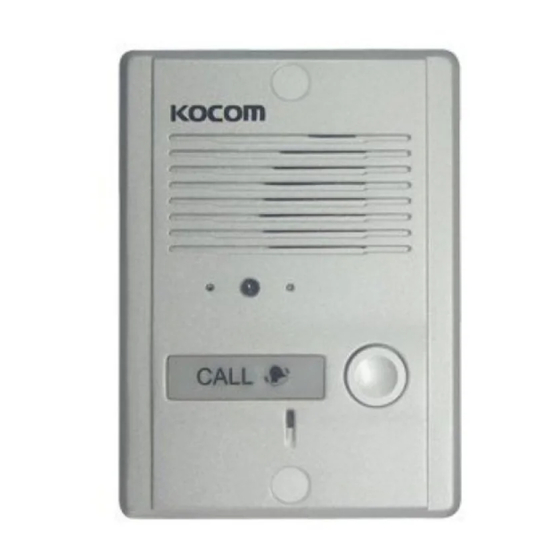

KC-MC22
KC-MC11
Surface
mount
Sun
type
visor
Main
body
Screw cap
Main body screw
(2EA)
4 x 18(2EA)
※When using Angle Supporter,
if Main Body Screw(4x18) does not fit,
please use Spare Screw(4x20).
Main
Flush
body
mount
type
Screw cap
(2EA)
Main body screw
Angle
Supporter
Dummy screw
4 x 25(2EA)
Sun visor screw
2 x 4(3EA)
Flush
mount
bracket
Dummy screw
4 x 25(2EA)
4 x 18(2EA)
http://www.kocom.com
E-mail : export@kocom.com
This manual is based on the date as shown in the right and specifications are subject to
change without notice for quality improvement.
CAMERA
[KC-MC22]
Non Polarity
①②
③④ ⑤
FG
Non Polarity
Power Supply
P.S
DC Electric Door Lock
①RED : LINE 1
Monitor
]
Connection
②ORANGE : LINE 2
③ BLACK : DOOR 1
Door Lock
]
Connection
④BROWN : DOOR 2
⑤GREEN : FG
※ Only one Electric door lock
should be connected to the
door camera or monitor.
CAMERA
[KC-MC11]
Non Polarity
①
②
③④
Non Polarity
FG
Power Supply
P.S
DC Electric Door Lock
※ Only one Electric door lock
should be connected to the
door camera or monitor.
[KCV-352]
①
③④
②
⑤
⑥
Non Polarity
Polarity
Power Supply
AC/DC
Electric P.S
Door Lock
①
③④
②
⑤
Monitor
⑥
extension
[KCV-352]
①
③④
②
⑤
⑥
Non Polarity
Polarity
Power Supply
AC/DC
Electric
P.S
Door Lock
①
③④
②
⑤
Monitor
⑥
extension
P0424
