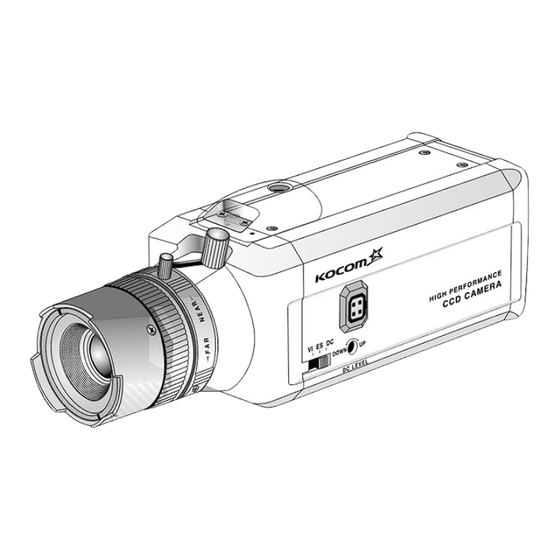

- Page 1 KCC & KCB Series Cameras Manual www.kocom.co.kr...
-
Page 2: Table Of Contents
Table of Contents Model configuration Model configuration Color Camera Precautions ■ KCC-34 Series (380 TV Lines, 0.1 Lux/F1.4) Name of each part and Functions KCC-34(12) DC12V Only KCC-34(24) DC12V~AC24V, Non polarity Dynamic power input - Front KCC-34(230L) AC230V (AC200~AC240V) ■ KCC-34X Series - Back 6-11 (380 TV Lines, 0.01 Lux/F1.4 with EX-view HAD CCD) -
Page 3: Precautions
Warning ! Name of each part & Functions ☞ To prevent the risk of fire or shock hazard, do not expose this Front camera to water. ☞ Installation of this unit should be carried out by a qualified personnel and should conform to the local codes. Adjustment Lever Precautions... -
Page 4: Back
Back -Color 6. Mounting the Bracket Holder DC 12V/AC 24V Can be attached either on the top or on the bottom. Assemble it with the Line Lock screws provided. (3 EA) 3. Video Out Connector 1. 6Way Dip Switch (BNC Female) 7. - Page 5 * Color 6 Way Dip Switch Functions BLC (Back Light Compensation) ON / OFF (BLC Under bright lighting conditions from behind the subject, the camera will close Sync Mode Selection(L/L INT) the iris automatically. Select BLC mode to counteract this. In normal lighting * INT(Internal Sync) Mode conditions, select BLC to OFF.
- Page 6 -B/W Back * B/W 4 Way Dip Switch Functions DC 12V/AC 24V Sync Mode Selection(L/L INT) Line Lock * INT(Internal Sync) Mode 3. Video Out Connector This mode is used when the camera is installed outoor with one camera to 1.
-
Page 7: Connection
2-2. Power Input Terminal Connection This terminal provides connections for DC 12V or AC 24V. It is not polarity sensitive. The unit has a wide power tolerance, within DC 1. Lens 10V~DC 40V or within AC 15V~AC 30V. It is not a special requirement to use It is recommended to use a good quality lens to improve the picture quality a regurated power supply, but using a regurated supply is recommended. -
Page 8: How To Use A Video Iris Lens
* Set the iris mode select switch to DC (DC driven automatic iris Control) position. * In this mode, the iris is controlled automatically to react to DC signals from the camera. * Please make sure to set S/W to DC position before you operate the camera * Remove the cover of the auto iris plug with a DC lens. -
Page 9: How To Adjust C/Cs Mount
2. How to adjust C&CS Mount 3. How to connect power 3-1. Please check the model and power specification before connecting the power. Color 3-2. AC24V power The camera has a common power input connector for both 12VDC and 24VAC. The power input is non polarized. -
Page 10: How To Connect Monitor
4. How to connect to monitor Specification (Color) MODEL KCC-34(12) KCC-34(24) KCC-34(230L) KCC-340(12) KCC-340(24) KCC-340(230L) 4-1. Connect the Video out jack to the Video In jack on the monitor. Image sensor 1/3" SONY HAD IT CCD Option : 1/3" EX-View HAD CCD, SONY Effective Pixels NTSC:512(H)X492(V) PAL:500(H)X582(V) NTSC:768(H)X494(V) PAL:752(H)X582(V) -
Page 11: Trouble Shooting Guide
Specification (B/W) Trouble Shooting Guide If the unit continues to be fault after the following adjustments please consult MODEL KCB-34(12) KCB-34(24) KCB-34(230) KCB-340(12) KCB-340(24) KCB-340(230) your dealer. Image sensor 1/3" Interline CCD, SONY Option : EX-View HAD CCD Version Effective Pixels EIA:512(H)X492(V) CCIR:500(H)X582(V) EIA:768(H)X494(V) CCIR:752(H)X582(V) When the picture is not displayed on the monitor... -
Page 12: Note
N o t e When the picture is too bright - Please check if the monitor’s brightness control is get too high. - Please check if the camera is set to BLC ON under normal lighting conditions.( i.e. when the camera is not pointed towards a brightly lit area) Please move the BLC select switch to the BLC OFF position.
