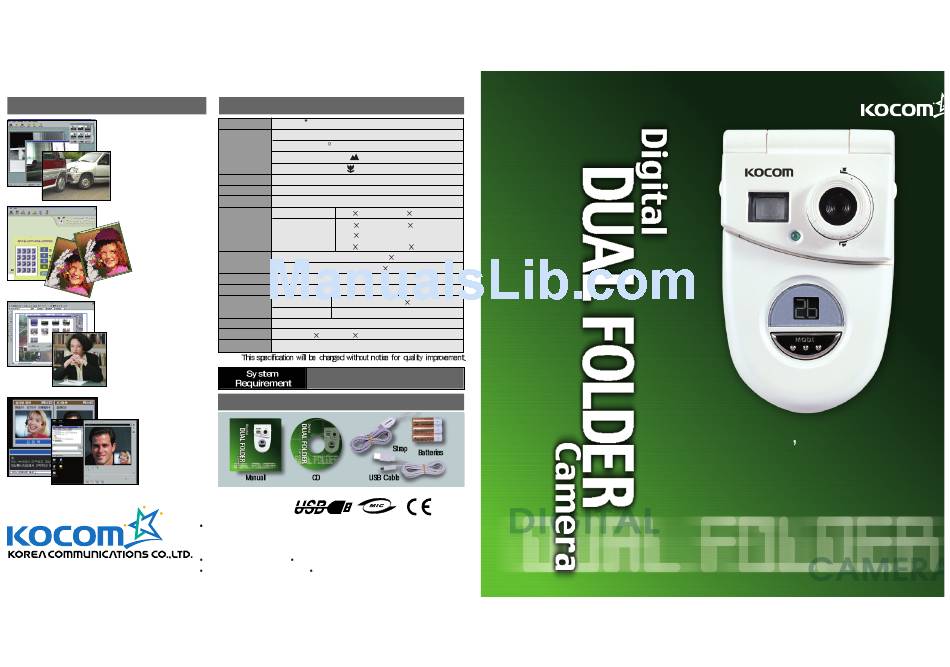

Various Software Supply
Easy storage of Image
Easy Downloading image
from camera to PC and
storage of the image taken by
camera
ASTRONICS Viewer 1.0
Making photo Sticker
Can make and edit photo
stickers by using Capture
Dog Software
Capture Dog 2.0
Image Editing
Image can be edited by image
editing software
Picture Draw 3.0
Video Conferencing by
PC camera
Video Conferencing,
Chatting &
Transmitting by
USB Port
Netmeeting 3.0
Specifications
Image Sensor
VGA 1/3 CMOS 318,000 Pixels
Lens
Focal Length f=6.2mm
View Angle 53 , Aperture Fixed Iris, F:2.6
Normal lens position-
50Cm~Infinity
Macro lens position-
10Cm~15Cm
+18dB
AGC
57dB
S/N Ratio
USB Interface
Interface
Digital Camera
640 480(VGA),320 240(SIF)
Resolution
PC Camera
640
480(VGA),352 288(CIF)
320 240(SIF),
176 144(QCIF),160 120(SQCIF)
High Resolution Mode (VGA,640 480) 26 frames
Picture Storage
Low Resolution Mode (SIF,320 240) 107 frames
Memory
Internal SDRAM 64Mbit (8MB)
White Balance
Auto White Balance
Power
Digital Camera
DC 4.5V(AAA 1.5V 3)
PC Camera
Power By PC USB Port(5V)
Frame Rate
VGA, QVGA, QCIF, SQCIF: 5~30fps
Dimension
88mm(W) 54mm(H) 36mm(D)
Weight
66g (Exclude Battery)
Windows98 or Windows2000 or Mac OS 8.5
Pentium 166MHZ 0r More, 32MB RAM
Compose
ASTRONICS BLDG., 260-7 Yumchang-Dong, Kangseo-
Gu,
Seoul 157-040, Korea
TEL:82-2-6675-2211 FAX:82-2-6675-2000
http://www.astronics.co.kr
E-mail:export@astronics.co.kr
User s Manual

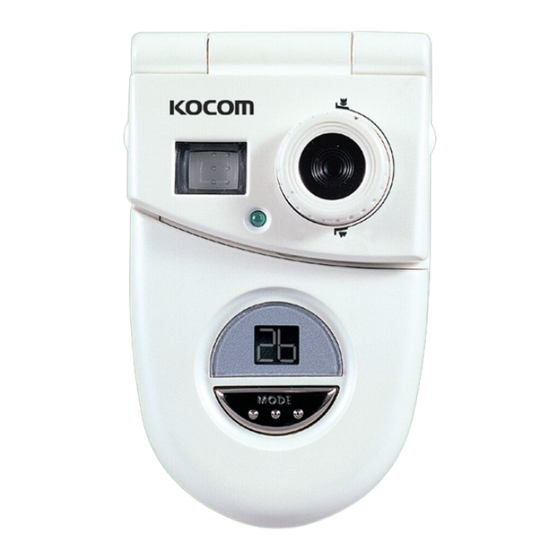

KDC-100
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KOCOM KDC-100
Summary of Contents for KOCOM KDC-100
- Page 1 Picture Draw 3.0 Pentium 166MHZ 0r More, 32MB RAM Compose Video Conferencing by PC camera Video Conferencing, Chatting & User s Manual Transmitting by USB Port KDC-100 Netmeeting 3.0 ASTRONICS BLDG., 260-7 Yumchang-Dong, Kangseo- Seoul 157-040, Korea TEL:82-2-6675-2211 FAX:82-2-6675-2000 http://www.astronics.co.kr E-mail:export@astronics.co.kr...
-
Page 2: Table Of Contents
Digital Dual Folder CAMERA KDC-100 Index Precautions What is in your box Connection to PC Looking at your KDC-100 Using the MODE Functions Specifications Using your KDC-100 How to install the driver and S/W ASTRONICS Viewer 1.0 Capture Dog 2.0... -
Page 3: Precautions
It could cause and under the direct damage to the product. sunlight KDC-100 3xAAA 1.5V LR 6 Camera Battery Do not use thinner or Do not disassemble. Connection to PC benzene to clean the It could cause camera. -
Page 4: Looking At Your Kdc-100
Digital Dual Folder CAMERA Digital Dual Folder CAMERA Looking at your KDC-100 Using the MODE function The number can take picture Continuous shooting mode lets you take picture 2 2 6 6 C C t t at high resolution mode... -
Page 5: Using Your Kdc-100
For PC Camera For Digital Camera Open the camera folder and take Fold down the camera folder When the KDC-100 Driver CD is inserted, picture by viewing the object through and place it on the monitor as Main screen will be displayed viewfinder as shown in the picture. - Page 6 Digital Dual Folder CAMERA Digital Dual Folder CAMERA 1.3 Click OK to begin driver installation.. 1.7 To Confirm proper installation of the driver execute; Start>Setting>Control Panel>System. Open Device Manager at menu bar, ASTRONICS Dual Mode Camera message will be displayed for an image device as shown in the picture.
- Page 7 Digital Dual Folder CAMERA Digital Dual Folder CAMERA 2. Select 'Search for a suitable 4. Click 'Next' button. driver for my device(recommended)'. 5. If device driver was normally installed in Windows2000, you can see 'Imaging devices -> ASTRONICS Dual Mode Camera' by select 'Start ->...
- Page 8 Digital Dual Folder CAMERA Digital Dual Folder CAMERA Instructions on use for Adobe Photoshop ASTRONICS Dual Camera Photoshop plugin Driver for - Run the installer and then copy the file “STV0680_Capture” MacOS(ver 8.5 or later) into the PhotoShop->Plug-Ins->Import/Export folder. - Please note that the installer places “STV0680_Capture” on the desktop Installation and the user must still manually move it into the PhotoShop installation.
-
Page 9: Astronics Viewer 1.0
Digital Dual Folder CAMERA Digital Dual Folder CAMERA Image Menu ASTRONICS Viewer 1.0 Contrast/Brightness : Adjusts contrast and brightness of an image. -Click Image - Contrast/Brightness. -Watching the change of image, adjust contrast and brightness. Color Adjust : Adjusts color of an image. - Click Image - Color Adjust - Watching the change of image, adjust color. -
Page 10: Capture Dog 2.0
Digital Dual Folder CAMERA Digital Dual Folder CAMERA Capture Dog 2.0 rotation Rotates an image in a 180-degree to clockwise. - Click Image - 180 rotation - Click Edit - Undo to return to the existing image. rotation Rotates an image in a 270-degree to clockwise - Click Image - 270 rotation - Click Edit -... - Page 11 Digital Dual Folder CAMERA Digital Dual Folder CAMERA Menu File Installation & Getting Started with CaptureDog New : Makes new document. 1.Insert CD to main computer. Selecting Twain : Selects type of picture camera, digital camera, and scanner. 2. Click "setup.exe." from CaptureDog's folder. Print : Prints a finished sticker photo.
- Page 12 Digital Dual Folder CAMERA Digital Dual Folder CAMERA After taking picture with ASTRONICS Dual Mode Camera or calling out saved Image, follow next step. Making sticker photo Step 1. Adjust brightness and darkness of photo Step 2. Select one of three effect menus. You can make an effect like watercolor painting, spot remove and brown tone on saved photo.
- Page 13 Digital Dual Folder CAMERA Digital Dual Folder CAMERA If you choose 2(Border blend) effect menu, Dialog box will be appeared like under. Open Dialogue Box Step2-1. Select color and background you want to blend. Step2-2. Then click "next" button. Control If you choose 3(Background image blend) effect menu, Step3-2.
- Page 14 Digital Dual Folder CAMERA Digital Dual Folder CAMERA Step 5. Choose sticker size you want, then click "Making sticker" button. Making Photographs After taking photograph, Click “Photo” Icon. Above dialog box will be appeard. Frame Step 1. Choose photograph size you want at photograph size menu. Step 2.
- Page 15 Digital Dual Folder CAMERA Digital Dual Folder CAMERA Save sticker as a file. Printing sticker using color printer Step 1. Click "Save File" icon, then blending photo like under picture will be appeared Step 2. Click "Agree" button, and input folder and file Step 1.
-
Page 16: Paint Draw 3.0
Digital Dual Folder CAMERA Digital Dual Folder CAMERA File(F) Menu Paint Draw 3.0 New Document (Ctrl+N) Creates a new document. Appoint the kind and direction of paper and click OK to make new document in the screen. This document contains the size, sort, fold location, and working condition of image. - Page 17 Digital Dual Folder CAMERA Digital Dual Folder CAMERA Open Twain: This is used in reading the photo file and new image wanted Save Image (Shift+S) Saves an image file with picture camera, scanner, and digital camera. - Click selecting tool icon and select the figure you want. - Click icon or File-Save Image and appoint the fold that contains image.
- Page 18 Digital Dual Folder CAMERA Digital Dual Folder CAMERA Paste (Ctrl+V) Places objects saved on the clipboard into the active - Appoint the vacant space and drag the mouse. document. - All objects in the dotted area are selected. - Click icon or Edit-Paste. - If you click Edit-Group, all selected objects are assembled into one object.
- Page 19 Digital Dual Folder CAMERA Digital Dual Folder CAMERA arranty FCC COMPLIANCE STATEMENT: To receive after service, have the following ready when you This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: contact our branches (1) This device may not cause harmful interference, and (2) this device must accept any interference 1.
