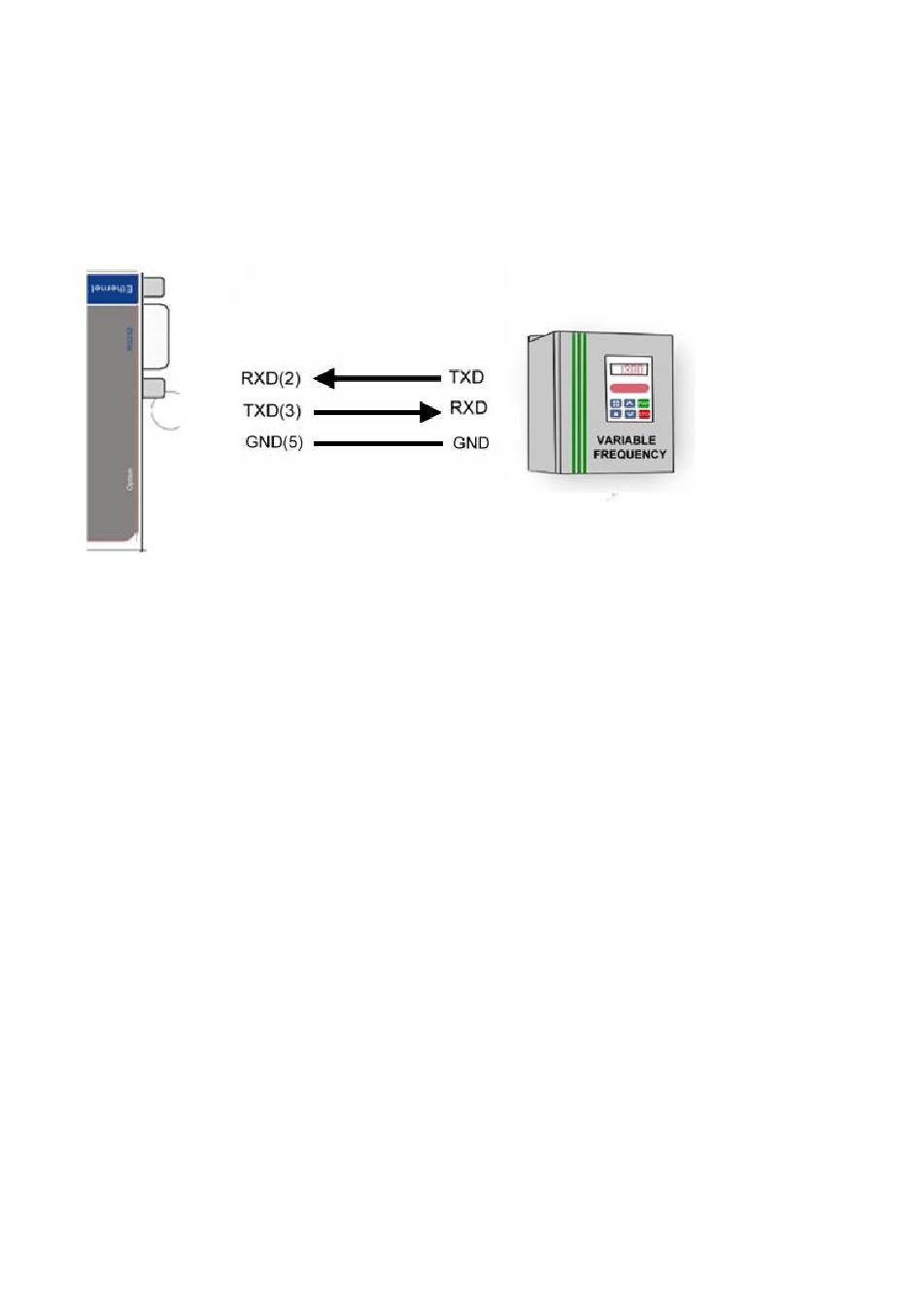

3-3. RS232 Wiring
The RS-232 supports 2 channels plus Signal Ground and is configured as DTE like a computer.
Signals are single ended and referenced to Ground.
*Please try to connect pin1,4,6 and Pin 7,8 together if RS232 device does not work.
4. How to configure TRP-C34M
There are 2 ways to access the Server Properties and program the TRP-C34M.
a. Using the IoT Device Finder utility.
5
