Power supply: Screw terminal, or standard external DC adapter.

Serial interface: +/-15 KV ESD.

RS422/485 interface: Surge, over current, over voltage protection.
 Serial terminal and Ethernet with 3KV Optical Isolation.

Power consumption: 12V/400 mA .

Operating Temperature: -20 °C to 65 °C.
 Humidity: 0~90% Non-Condensing.

Dimensions: 180(L)*110(W)*30(H) /mm.

Weight: 400g (W/Packing).

2. Hardware Description

The following information is provided to give the user an understanding of how to connect the
TRP-C34M to the LAN and serial device. A review of the switch settings and the functionality of
the LED's are also provided.

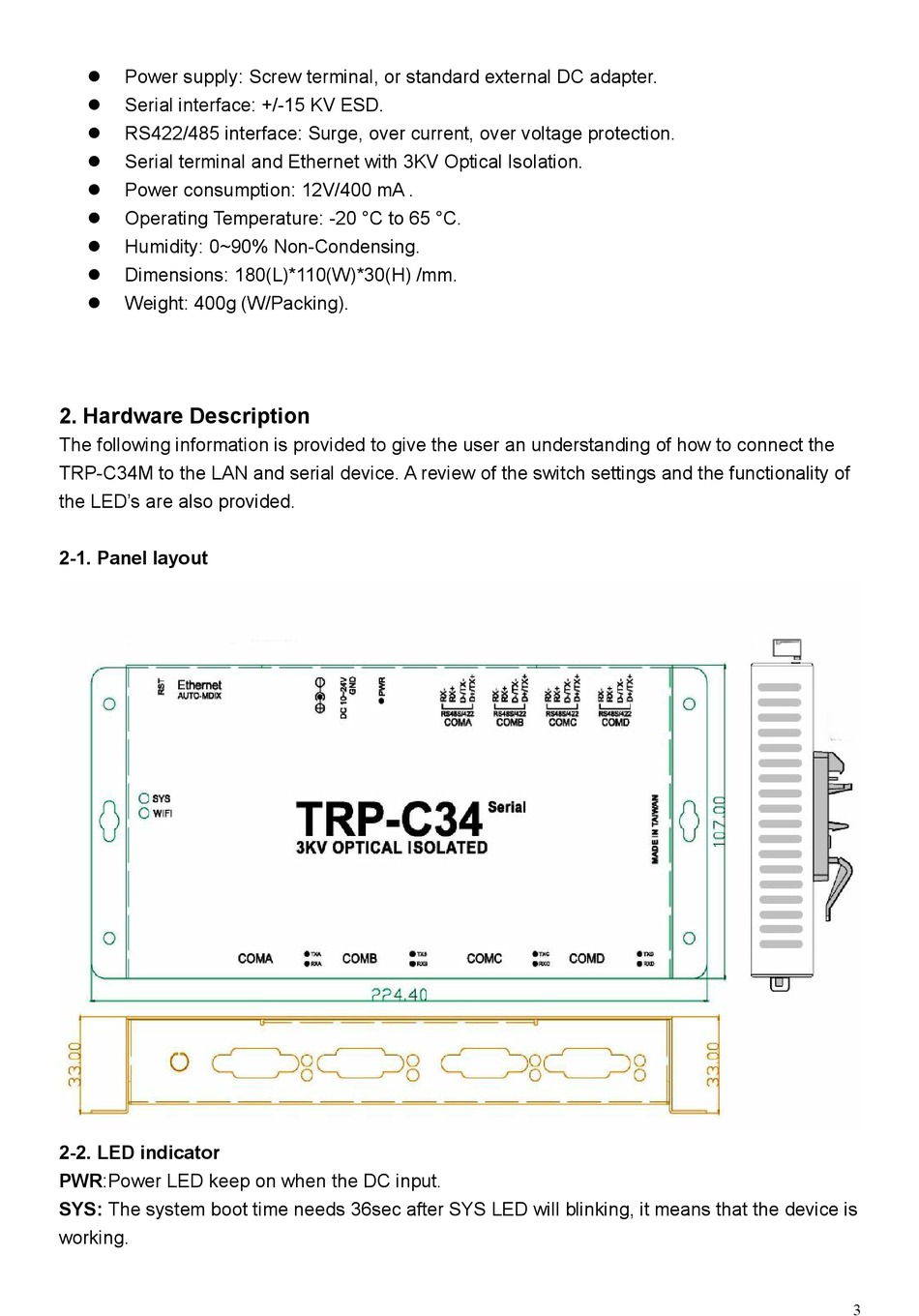

2-1. Panel layout
2-2. LED indicator
PWR:Power LED keep on when the DC input.
SYS: The system boot time needs 36sec after SYS LED will blinking, it means that the device is
working.
