Summary of Contents for Gabriel Ash The upright coldframe

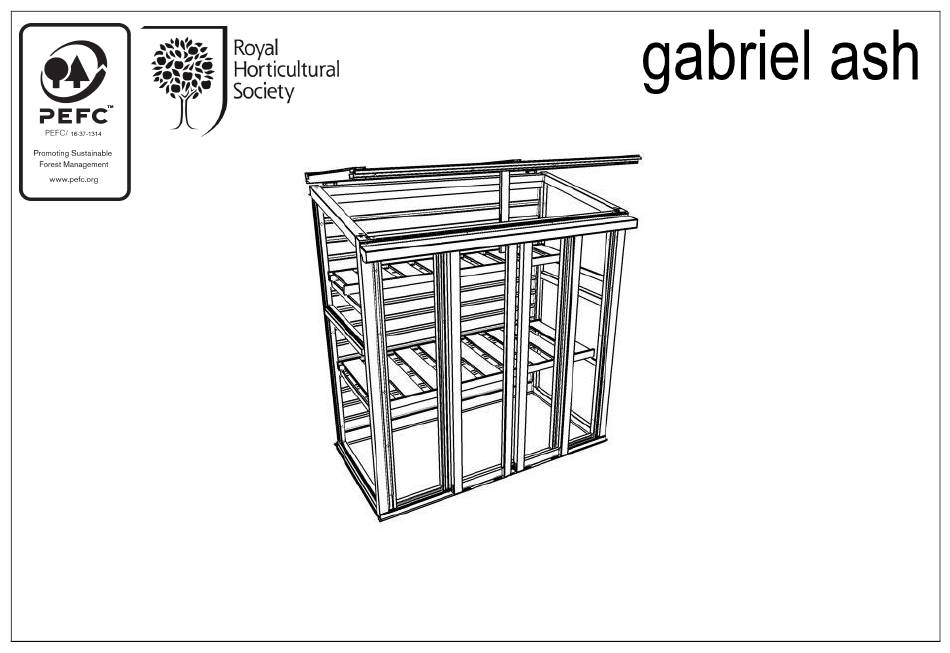

- Page 1 01829 271888 the upright coldframe assembly instructions an upright coldframe assembly video can be found at https://www.gabrielash.com/pages/self-assembly-support...
- Page 2 Check that the structure is square, ensuring All Gabriel Ash products use pozidriv screws of 2 sizes. Most As a result this moisture can track to the inside of dimensions across diagonals are even, before...
-
Page 3: Screw List
Screw List BL220 M6 Bolt x 70mm WA002 (Brass) NU200 M6 wingnut 18mm Diameter BL425 M6 Bolt x 70mm WA300 (Brass) 10mm Diameter SC305 (brass) 3.5mm x 32mm SC005 3.5mm x 25mm SC027 4.2mm x 65mm WA301 (Brass) 12mm Diameter Brass SC057 4.8mm x 75mm WA600 9mm Diameter... - Page 4 Timber Components Shelving Staging Back Panel Staging and Shelving Supports x 4 Side Panel x 2 Front Panel Sliding Door x 2 Lid Stay...
- Page 5 Metal and Plastic Components AL3026MF Door Catch SA1001 Door Stop Assembly AL3002 Door Runner End Cap AL2006 Door SA1000 Wheel Runner PT103 Hinge – Pair Bracket (Male and Female) AL2532 Flashing Piece AL2007 Door Runner (1260mm Long) Guide (1172mm Long)
- Page 6 1. Remove Prefixed Cappings and Glass from Side Panels...
- Page 7 2. Fix the Side Panels (ENSURE CAPPING SIDE IS ON THE OUTSIDE) to the Front Panel SC027 and WA301 Ensure Capping Side is on the outside!
- Page 8 3. Fix Back Panel to Side Panels SC027 and WA301...
- Page 9 4. Fix Shelf Supports W405-05 SC305 and WA300...
- Page 10 5. Fix Flashing Piece AL2532 Flashing Piece (1260mm Long) SC125...
- Page 11 6. Fix Hinge Halves to Back Panel SC125...
- Page 12 7. Fix Lid Stay to Inside of Front Panel Top Rail and Fix Door Runner Guide AL2007 Door Runner guide flush W420-21 Stay with frame NU200, WA002 and WA600 SC005 BL425...
- Page 13 8. Fix Door Stop into Door Runner and Fix Door Runner Do Not Over Tighten BL220 SA1001 Door Stop Assembly Insert Door Runner into Guide and Fix with SC125...
- Page 14 9. Fit Side Panel Glass and Fix Capping SC305 and WA300...
- Page 15 10. Fit Hinge Halves to Lid and Locate Lid into Position SC125...
- Page 16 11. Fit Wheel Brackets to Doors and Locate Doors SC125 Adjust if required and Lock into Section A-A Position with SC125.
- Page 17 12. Fit Runner End Caps, Door Catch and Finally Fit the Staging and Shelving AL3026MF AL3002 Door Door Catch Runner End Cap SC125 SC121...
