Summary of Contents for Gabriel Ash essential Series

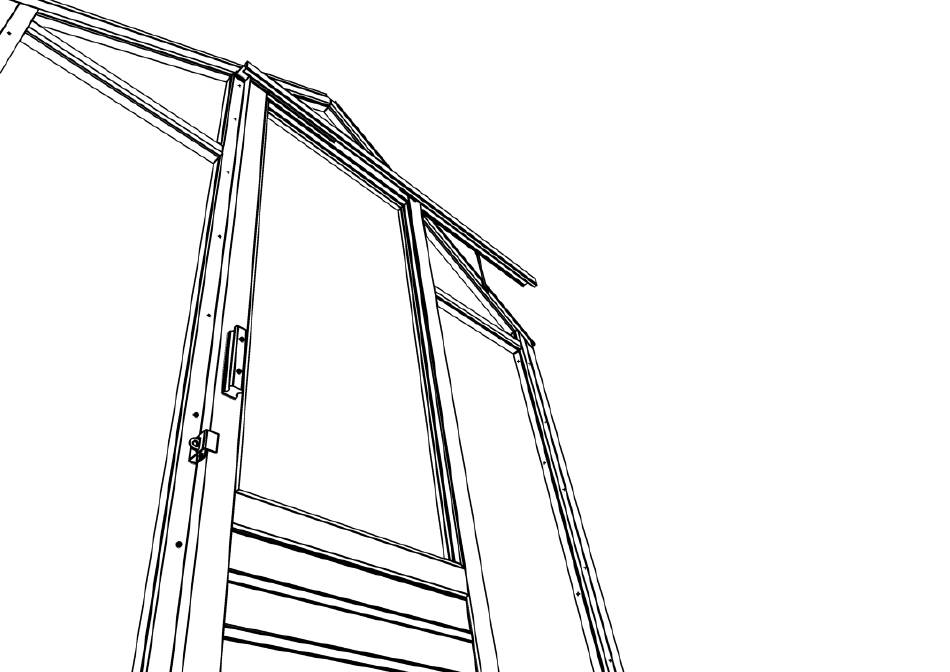

  • Page 1 range...
  • Page 2 As a result this moisture can track to the inside of the Dear Customer, Tools Required for Assembly greenhouse particularly in the areas that are subject to the  Please read ALL these instructions before assembly. PZ2 Screwdriver greatest weathering. Because of the fibre structure of the ...

  • Page 3: Parts List

    screw list parts list SC004 3.5mm x 19mm SC005 3.5mm x 25mm SC006 3.5mm x 38mm PT705 SC027 4.2mm x 65mm IR304 SC056 4.8mm x 65mm PT206 SC057 4.8mm x 75mm IR305 SC058 4.8mm x 100mm PT205 PT203 SC121 4.2mm x 9.5mm SC125 4.2mm x 25mm SC126...
  • Page 4 6 House: AL2006-1330 8 House: AL2006-1560 AL3300 6 House: AL2007-0644 8 House: AL2007-0759 AL3098 AL3301 6 House: AL1570-0685 AL3099 6 House: AL1570-0595 8 House: AL1570-0800 AL3065 3 Panel: AL2028-1836 4 Panel: AL2028-2410 6 Panel: AL2028-2984 PT704 AL2542-0830...
  • Page 5 assemble steel base The sides and ends of the base can be fixed together positioning an anchor leg or short corner bracket on the outside of the sides and fixed through the pre drilled holes with the bolts and nuts supplied (Fig 1). Fig 1 Fig 2 The short anchor legs are used only...
  • Page 6 base plan for concrete plinth (if greenhouse purchased without steel base)
  • Page 7 1. assemble door end gable 6 House W312-02 8 House W312-03 6 House W002-54 6 House W002-54 8 House W002-58 8 House W002-58 AD111 Glue 6 House W003-54 8 House W003-56 W004-53 6 House W003-53 SC056 8 House W003-55 W004-52 6 House W002-36 8 House W002-46 6 House W002-35...
  • Page 8 1. assemble door end gable W005-51 W005-50 SC156 x 4 SC156 x 4 flush...
  • Page 9 1. assemble door end gable 6 House W301-02 SC057 8 House W301-06 6 House W301-01 8 House W301-05...
  • Page 10 1. assemble door end gable AL3300 SC125 III. SC057...
  • Page 11 2. assemble plain end gable (6 house) W004-53 W002-55 W004-52 W003-58 W002-55 SC056 x 8 W003-57 6 House W002-05...
  • Page 12 2. assemble + complete plain end gable (6 house) in same manner as door end W002-55...
  • Page 13 2. assemble plain end gable (8 house) W003-59 W002-55 W003-58 SC056 x 8 W003-57 W002-08...
  • Page 14 2. assemble + complete plain end gable (8 house) in same manner as door end W002-55 W002-55...
  • Page 15 3. assemble side walls – position of sash Pre drilled hinge pilot holes at sash position 8 ft length Pre drilled hinge pilot holes at sash 10 ft length position...
  • Page 16 3. assemble side walls 6 ft W300-01 Section A-A 8 ft W300-02 10 ft W300-03 W300-51 W300-50 W004-51 W300-52 W004-50 Section B-B 6 ft W300-05 8 ft W002-08 10 ft W002-10...
  • Page 17 3. assemble side walls SC056 SC156 Please Note: Ensure shaded faces are flush SC156 SC056...
  • Page 18 4. fix door end gable to side wall and position on base SC156 x 4...
  • Page 19 5. fix plain end gable and second side wall and fix to steel base if applicable SC125 A - A...
  • Page 20 6. hang sash windows and fit stay 7. fit door bottom guide al1570 IR304 and pins IR305 Al1570 6 house - 595mm Al1570 8 house - 800mm SC005 SC125 Section A-A SC005 x4 SC004 x2...
  • Page 21 8. fix ridge board to gables 6ft SA5040 8ft SA5041 10ft SA5042 AL3300 SC027 x 2 SC125 x 4...
  • Page 22 9. fix pt121to roof spars 10. fix under vent rail 6 house w302-01 6 house w302-02 8 house w302-04 8 house w302-05 6 house w302-03 8 house w302-06 w307-01 SC125 x 2 PT121 SC156...
  • Page 23 11. fix roof spars to ridge and side walls SC125 SC125...
  • Page 24 13. fix spigot pt200 and gutter end caps 12. fix pt206 and hook gutter to wall PT200 PT206 PT206 PT205...
  • Page 25 14. fix greenhouse down to concrete plinth (if applicable) WA501 SC058 FX200...
  • Page 26 six house glass chart – door end and side walls...
  • Page 27 six house glass chart – plain end and roof panels...
  • Page 28 eight house glass chart – door end and side walls...
  • Page 29 eight house glass chart – plain end and roof panels...
  • Page 30 15. glaze roof and fix roof cappings III. 6 house w303-16 8 house w303-17 SC125 PT206...
  • Page 31 16. fix roof vent hinge rail 17. glaze roof vent and fix into position sa5001 sa5011 568mm 489mm III. SC027 x 3 PT120 SC125...
  • Page 32 18. glaze the sides SC125 W304-04 half capping III. W303-04 capping...
  • Page 33 19. glaze both gable ends W313-02 Do not fix at this stage W303-08 left hand/ SC125 W304-05 left hand/ W303-09 right hand W304-06 right hand...
  • Page 34 20. glaze the side sash windows 21. fix door runner top guide SC006 Section A-A 477mm 580mm PT120 22. fit door runner SC125 x 2. Use holes SC125 which line up with centre of capping either side of door Door runner end flush with side of capping...
  • Page 35 23. fix al3065 door runner vertical 24. fix al3301 ridge end cap support AL3301 Position Vertical support, mark and using a 7mm drill bit, drill a hole through the door runner NU101 SC125 x 2 BL325 SC125...
  • Page 36 25. fit door wheel brackets to front 26. fit bottom guide to back of door of door A - A SC125 x 2 SC125...
  • Page 37 27. locate door 28. Adjust door (if required) and fit handles Adjust and Lock into Position With Screw Type SC125. W056-01 SC127...
  • Page 38 29. fit low threshold when on steel base (if required) III. Al2017-830 BL325 Using a 7mm drill bit, drill a hole through both legs of the low threshold and through the steel base NU101...
  • Page 39 29. fit low threshold when on concrete plinth (if required) Al2017-830 Cut the low threshold down to fit Partially fix SC058 and FX200 within the aperture and position into a suitable position within over screws previously fitted. the aperture of the plinth. Repeat for opposite side.
  • Page 40 30. fit staple to door and hasp to door aperture upright (if required) SC125 x 2 SC004 x 2...
  • Page 41 31. fit downpipes and shoes III. PT201 VII. PT203 SC125 SC121...
  • Page 42 staging and shelving instructions 775mm 605mm 545mm 605mm 775mm 775mm 545mm 605mm Type B Door End Plain End Door End Plain End 6 x 6, 6 x 8 and 6 x 10 Batten Positions 8 x 10 Batten Positions SC026 NU200 WA002 SC128...
  • Page 43 staging and shelving instructions SC128 SC026 WA002 + SC128 BL425 NU200 SECTION A - A...
