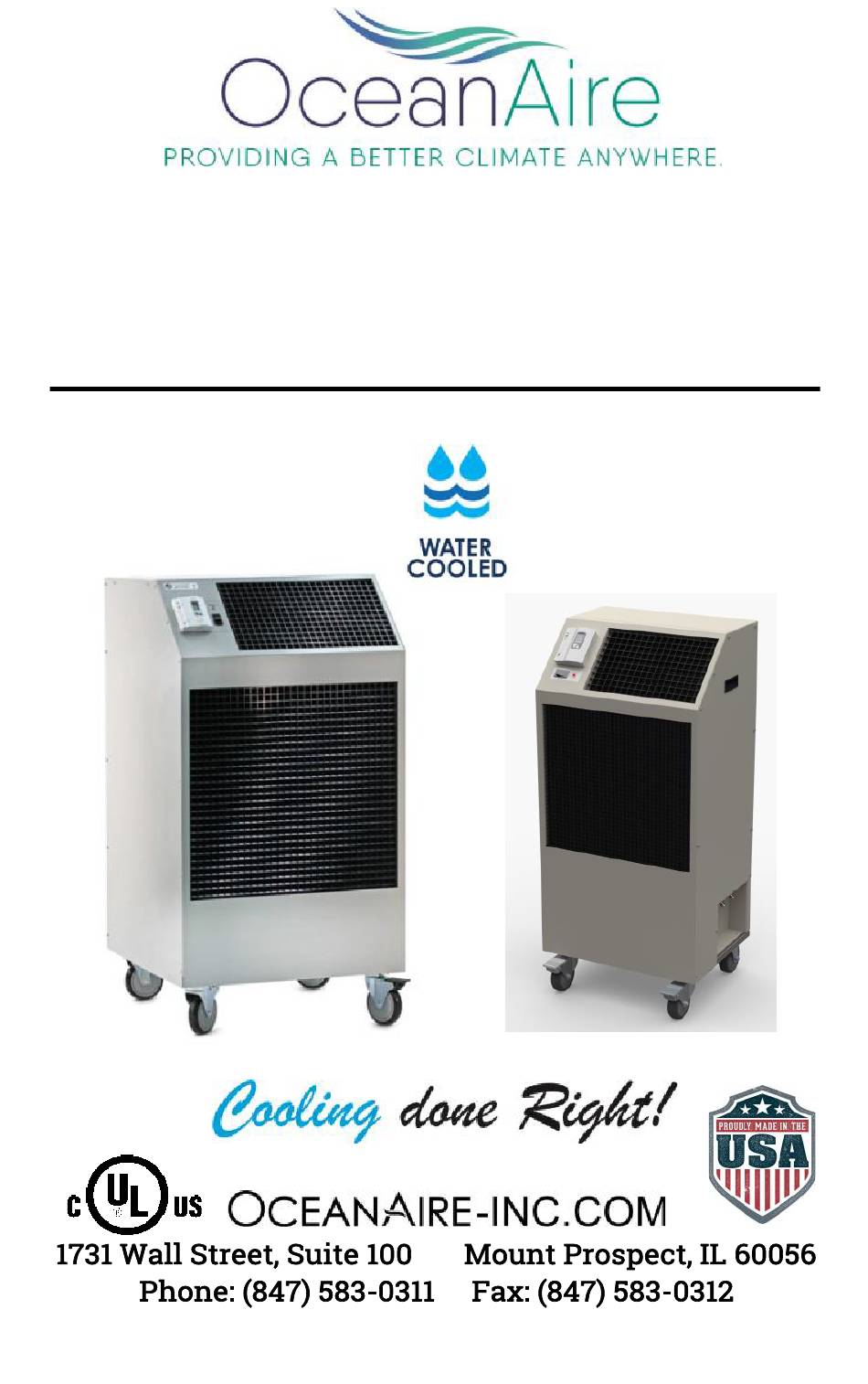

- Page 1 PWC series Portable Water-Cooled Spot Cooler ENGINEERING, INSTALLATION AND SERVICE MANUAL EISM-PWC 10012021...
-
Page 2: Table Of Contents
FORWARD This manual provides the user with basic details for the installation and operation of the OceanAire PWC spot cooler. It is recommended to read and fully understand the instructions outlined within this manual, before operating the PWC unit. As with all commercial air conditioning equipment, it is recommended to have the PWC sized and installed by a licensed specifying engineer and contractor, in ac- cordance with all local and state codes. -
Page 3: General Information
GENERAL INFORMATION The OceanAire PWC is a portable water-cooled air conditioner designed for perma- nent or temporary spot cooling applications. The entire air conditioning unit has been built in an attractive sheet metal cabinet, equipped with heavy-duty casters for mobility. All PWC models come with a 10-foot power cord for electrical connec- tion and added mobility in service. -
Page 4: Product Data And Specifications
SPECIFICATIONS MODEL: PWC 1211 1811 2412 3612 3632 3634 6012 6032 6034 COOLING CAPACITY 12,000 18,000 23,950 36,100 60,100 VOLTAGE (V/Phase) at 60Hz 115/1 208-230/1 208-230/3 460/3 208-230/1 208-230/3 460/3 UNIT AMPS 11.3 12.0 23.7 16.5 UNIT WATTS 1300 2100 2700 5000 IN-RUSH CURRENT (AMPS) -
Page 5: Standard Features
STANDARD FEATURES CABINET The PWC-Series cabinet is constructed of 18 gauge steel with a gray polyester powder coated finish that will compliment any decor. The entire cabinet is insulated with sound- absorbing insulation for cool, quiet comfort. All units come equipped with handles and swivel casters for portability and convenient set-up. -
Page 6: Applications / Operation
APPLICATIONS SPOT COOLER The PWC can be used in an open environment to cool specific objects or "spots". Spot Cooling is a convenient and economical way to provide air conditioning where cooling the entire space is impractical. Cool air is discharged from the unit and is directed where it is needed. -
Page 7: Electrical Configurations
ELECTRICAL CONFIGURATION All PWC Series units are equipped with a standard 10-foot long service cord with plug configurations and receptacle requirements as shown in this chart. PWC1211, PWC1811, PWC2412 and PWC3612 units come with LCDI (Leakage Current Detection & Interruption) devices that serve as a means of electrical protection. -
Page 8: Use Of Extension Cords
USE OF EXTENSION CORDS CAUTION FOR MODELS PWC1211 AND PWC1811 AN EXTENSION CORD CAN BE USED PROVIDED IT IS RATED AT LEAST 15 AMPS @ 115 VOLTS WITH GROUND- ING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING) FOR MODELS PWC2412 AND PWC3612 AN EXTENSION CORD CAN BE USED PROVIDED IT IS RATED AT LEAST 20 AMPS @ 250 VOLTS WITH GROUND- ING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD... - Page 9 PWC Optional ACCESSORIES NOZZLE KIT NK-1 (2 X 4-Inch) PWC12 2NK-2 (2 X 6-Inch) PWC18, 24 2NK-3 (2 x 8-Inch) PWC36, PWC60 EVAPORATOR RETURN AIR PLENUM DEP-10 (10-Inch Round) PWC12 2DEP-12 (12-Inch Round) PWC18, 24 DEP-16 (16-Inch Round) PWC36, 60 DISCHARGE DUCT ADAPTER DDA-6 (6-Inch Round)
-
Page 10: Accessories
ACCESSORIES DISCHARGE AIR NOZZLE KIT ASSEMBLY The optional discharge nozzle kits are used to direct the conditioned air to a specific target area. By concentrating the airflow, the nozzles increase the air ve- locity towards production lines to cool personnel and/or equipment. In server rooms, the nozzles can be used to direct the airflow through the rack to remove the hot air from the area of the equipment. - Page 11 ACCESSORIES EVAPORATOR RETURN AIR PLENUM Evaporator return air plenums are available for installations where it is required to duct air to the inlet of the evaporator. The evaporator return air plenums allow the user to connect round duct (flexible or rigid) to the return air intake to reduce air noise and increase the number of options for solving difficult cooling problems.
- Page 12 ACCESSORIES Discharge Duct Adapter Discharge duct adapters are available for applications where ducted evaporator discharge is required. The adapters can be easily installed on the unit without fas- teners, and be installed for either vertical or horizontal ducting. The standard dis- charge grille is removed and the DDA is attached in the grille opening.
- Page 13 ACCESSORIES Hose Kit Hose kits are available in lengths of 10, 25, and 40 feet. Each hose kit allows for convenient installation of the PWC, while allowing for portability within the allow- able space. NOTE When using these hoses in applications with water —...
-
Page 14: Options / Special Order
SPECIAL ORDER ITEMS In some applications, units can be manufactured with optional components for added performance and longevity. Below are a few of the PWC options that are available. Consult your distributor for pricing and availability. CUPRO-NICKEL CONDENSER When chemically treated water, salt water or brine, is used in the condenser coil, it is recommended that the PWC be equipped with a 90/10 Cupro-Nickel condenser coil. -
Page 15: Installation
BEFORE INSTALLING Check the unit for any damage. All OceanAire products are thoroughly inspected at the factory and carefully packaged. If any damage is evident, contact OceanAire IMMEDIATELY. -
Page 16: Thermostat
THERMOSTAT OPERATION FAN SLIDE SWITCH The FAN Slide Switch allow you to set the fan mode from ON (fan is on all the time) to AUTO (fan cycles under thermostat control) MODE SLIDE SWITCH To turn the unit ON, slide the Mode Slide Switch down to the COOL position. To turn the unit OFF, slide the Mode Slide Switch to the OFF Position. -
Page 17: Water Valve Adjustment
WATER VALVE ADJUSTMENT Each OCEANAIRE WATER-COOLED unit is equipped with an automatic water regulating valve to control the condenser water flow rate. The water valve will open when the unit is in the cooling mode and adjust the gallon per minute flow rate based on the entering water temperature (EWT). -
Page 18: Unit Interior
PWC INTERIOR 24v Electronic Thermostat Fan Speed Evaporator Rocker Switch Discharge Grille Hi/Lo Condensate Alert Light Compressor Run Capacitor Return Air Grille Evaporator Filter High Pressure Switch Water Connections Front Locking Casters Metal Strain Relief Recessed Cubby Rear Swivel Casters Evaporator Coil Evaporator Blower Motor... -
Page 19: Replacement Parts Procedure
REPLACEMENT PROCEDURE FOR PARTS IT IS RECOMMENDED THAT ALL OCEANAIRE UNITS BE SERVICED BY A LICENSED TECHNICIAN WARNING TO AVOID INJURY, DISCONNECT UNIT POWER PRIOR — TO SERVICING A. FAN MOTOR 1. Remove cabinet left-side panel (when looking at the front of the unit). -
Page 20: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following steps and procedures are recommended for correcting the problems indicated. In the event that the problem can not be corrected, service may be required. SERVICE SHOULD BE PERFORMED BY A QUALIFIED AIR CONDITIONING SERVICE TECHNICIAN PROBLEM: UNIT DOES NOT POWER UP CAUSE: Power interruption REMEDY: Check LCDI (if equipped) and reset. -
Page 21: Preventive Maintenance
PREVENTIVE MAINTENANCE PWC’s are designed to last a long time and to give maximum performance and reliability with minimum maintenance. To prolong the life of the unit, regular maintenance must be performed as specified below: OFF SEASON STORAGE—WINTERIZATION Before placing the unit into storage for the off-season, it is recommended to thoroughly clean the unit, and remove all water in the CONDENSER COIL, WATER LINES, DRAIN PAN and CONDENSATE PUMP to avoid damage to the unit from freezing water or contamination. - Page 22 Then rinsing clean with hot water and shaking excess moisture from filter. GENERAL Oceanaire products are NOT approved for outdoor use. Therefore, off- season storage should be indoor, protected from weather conditions. When necessary maintenance steps outlined above are followed, the air conditioner will provide long and reliable service.
-
Page 23: Piping Schematic
PIPING SCHEMATIC... -
Page 24: Single Phase Wiring Diagrams
WIRING SCHEMATIC FOR PWC1211, PWC1811, PWC2412, and PWC3612... - Page 25 WIRING SCHEMATIC FOR PWC6012 07182016...
-
Page 26: Three Phase Monitor
THREE PHASE MONITOR... -
Page 27: Three Phase Wiring Diagrams
WIRING SCHEMATIC FOR PWC3632... - Page 28 WIRING SCHEMATIC FOR PWC6032...
- Page 29 WIRING SCHEMATIC FOR PWC3634 and PWC6034...
-
Page 30: Warranty
LIMITED WARRANTY The Manufacturer (OceanAire, Inc.) warrants to the original owner that the Product will be free from defects in material or workmanship for a period not to exceed one (1) year from date of installation. If upon examination by the Manufacturer, the... -
Page 31: Tech Notes
TECH NOTES... -
Page 32: End User Information
SERIAL NUMBER: _____________________________ Date Purchased: ______________________________ Purchased from: _______________________________ Date Installed: _________________________________ For Technical Support or service parts, contact our Keep Cool Team at 847-583-0311 In order to receive the benefits of our warranty, please register on-line at www.oceanaire-inc.com Form EISM-PWC 10012021...
