BGS technic 9689 Instruction Manual

TOOLS

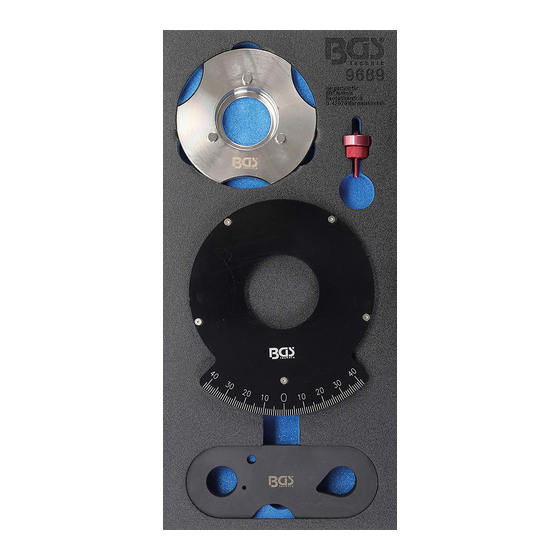

Timing Chain Test Tool Set, to be used as OEM T10550, consisting of the following tools:
1 Camshaft retainer, to be used as OEM T10550/1
2 Pointer, to be used as OEM T10550/2
3 Measuring gauge with crankshaft pulley plate, to be used as OEM T10550/3

INTENDED USE

This tool set is made to check timing chains on VAG 1.2 and 1.4L TFSi engines.
More information regarding this item and a list of suitable engines and models can be found on our
website: www.bgstechnic.com

SAFETY INFORMATION

•
Do not use the tool if parts are missing or damaged.
•
Use the tool for the intended purpose only.
•
Never place the tool on the vehicle battery. There is a risk of a short circuit.
•
Be careful when working with the engine running. Loose clothing, tools and other objects can
be caught by rotating parts and cause serious injury.
•
Keep children and other unauthorized persons away from the work area.
•
Be careful when working on hot engines because of the risk of burn injuries.
•
If you remove the ignition key before repairing, you can prevent the engine from being started
accidentally and resulting in engine damage.
•
This manual serves as a brief guide and does not replace a workshop manual. Always refer to
the vehicle-specific service literature, particularly the technical data such as torque values and
instructions for disassembly/assembly, etc.
•
After repair or before starting the engine, turn a minimum of 2 turns by hand and check the
timing again.
•
Turn the engine only in the normal direction of rotation (clockwise unless otherwise specified)
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen
Timing Chain Test Tool Set
for VAG 1.2 / 1.4 TFSi
3
1
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
BGS 9689
3
2
www.bgstechnic.com
© BGS technic KG, Copying and further use not allowed
