EPIC'S RS232
PRO
Product Introduction:

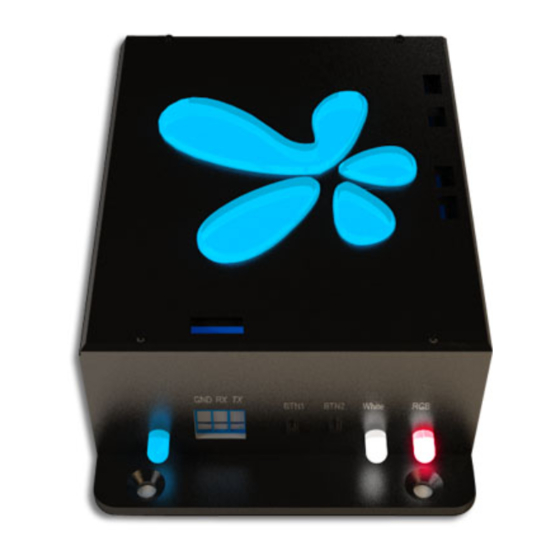

The EP-RS232-PRO LED Controller is a highly professional and intelligent system to control common anode LED lighting
or incadescent light bulbs via 2-way RS232 serial commands. The EP-RS232-PRO provides 4 high current channel to create
light scenes. The controller can also operate in a standalone mode which includes pre-programmed light sequences. This LED
controller is ideal used for flexible ThinGlow
or integrated into a whole-house control system.
Key Features
• 4 high current channels with independent control -
• Suitable for common anode RGB LED strips, LEDs and incandescent bulbs.
• Standalone mode with 8 preprogrammed light sequences.
• Custom user-editable sequence via RS232.
• Wide-range effect speed adjust.
• Wide-range of external input acessoroes such IPAD, relays, and wireless transmitter.
• Complete lists of color and scene serial commands to save programming time.
• Memory for last selected sequence and user-editable sequence.
• Addressable. Multiple modules can be connected with independent control for each module.
• Small form factor (Al sending sizes).
• PWM of 480 Hz to deliver smooth dimming and a wide range of color spectrum of LED light fixtures.
• Override memory feature that allows last program to continue even in an event whereby the RS232 is disruppted for any
reason.
• Reverse polarity protection.
• Work independantly or integrated into a whole-house control system.
• Proprietary power conditioning design to work with magnetic transformers.
Specifications
Power Requirement
Operating Voltage:
Channel Current:
LED strips. The EP-RS232-PRO LED Controller also operate independantly
TM
The highest in the industry. RGB+White.
External power supply - (power supply sold seperately)
Input: 8-24V DC
Output: 8-24V DC (depends on input)
7Amp@12V DC Per Channel
14A@24V DC Per Channel
