S4
EL/BLE
Pedometer
Calorie consumption
Distance
Key S1 : Up ,Begin timing ,Pause,Switch,Photograph
Key S2 : Selection,Setting,Reset
Key S3 : Mode Conversion,Confirming and Save
Key S4 : EL Back Light, Bluetooth Switch
Function instruction:
12-digit timer function, the normal time mode display Week,Hours,Minutes, seconds
(Synchronize automatically with your phone when connected with the phone)
SKMEI 1746 Operation Manual
SMS,QQ,WeChat,Twitter
,Facebook,WhatsApp,Sk
ype Reminding
Calling
S3
MODE
Photograph
Heart rate detection
S1
UP
Alarm mode
Stopwatch
S2
SET/DOWN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1746 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SKMEI 1746

Summary of Contents for SKMEI 1746

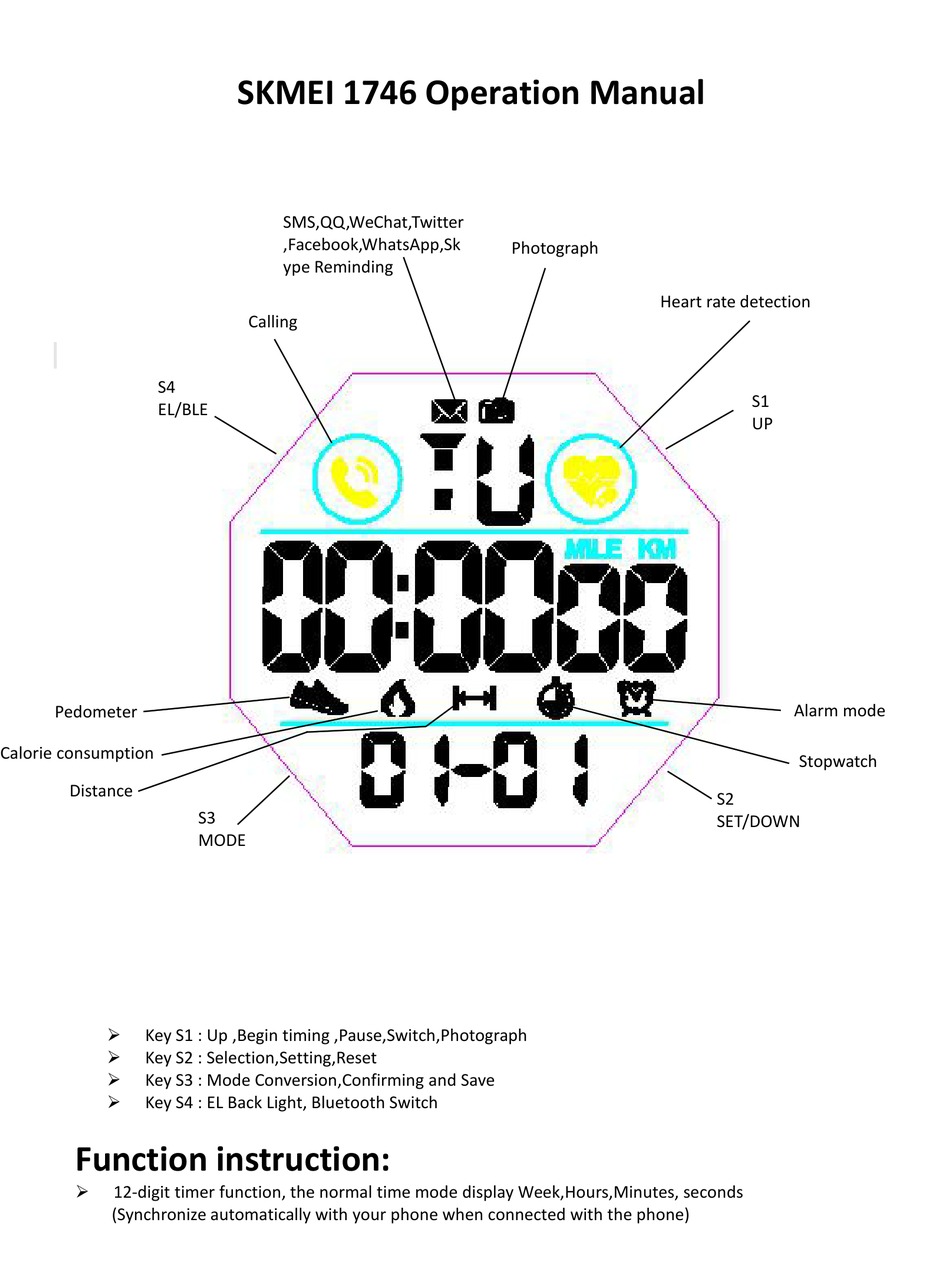

  • Page 1 SKMEI 1746 Operation Manual SMS,QQ,WeChat,Twitter ,Facebook,WhatsApp,Sk Photograph ype Reminding Heart rate detection Calling EL/BLE Alarm mode Pedometer Calorie consumption Stopwatch Distance SET/DOWN MODE Key S1 : Up ,Begin timing ,Pause,Switch,Photograph  Key S2 : Selection,Setting,Reset  Key S3 : Mode Conversion,Confirming and Save ...
  • Page 2 12/24 hour Format setting selection (Synchronize automatically with your phone when connected  with the phone) 24 hours precise 3D pedometer / calorie consumption / distance detection (the data can be uploaded  to the phone when connected with the phone ) Heart rate detection ...

  • Page 3: Switch Mode

    Switch Mode If do not perform any operation on this interface, you will stay in this interface forever, press the S2 key to return to the time display interface Key S3 Key S3 Pedometer Normal time display Key S3 Alarm Key S3 Key S3 Distance...
  • Page 4 Bluetooth ON/OFF Mode Press and hold Key S4 for 3s Press and hold Key S4 for 3s 血此据仅供参考） Bluetooth off Bluetooth on...

  • Page 5: Time And Date Setting

    Time and date setting Time and 12/24H Setting(when Bluetooth OFF) “24H” is flashing, “24H” is flashing, Normal time display press S1 to adjust press S1 to adjust Press and Press hold Key S2 Key S1 for 3s Press Key S1 Press “Second”...
  • Page 6 Chronograph Setting Mode Stopwatch starts, Milliseconds is running Press Key S3 four Press times Key S1 Normal time display Press Press S2 to Press S2 to (Bluetooth off) Key S1 return to zero return to zero Press Press Key S1 Key S1 Stopwatch suspend, Split,digits stop...

  • Page 7: Alarm Setting Mode

    Alarm Setting Mode Alarm mode 指南 Press and Press S3 hold S2 for 针设 置模 five times 式 连接 指南 针设 置模 式 Press Press Key S3 to Key S2 指南针设置模式 save the set alarm time and return to the main interface Alarm mode, “Minutes”...
  • Page 8 Remarks: When the heart rate test is aimed at whites, blacks, and people with hairy hands, the test data will be  biased; When testing, the watch must be firmly worn on the wrist;  When the battery voltage is low to a certain level (less than 2.75V), enter the heart rate test interface, ...
  • Page 9 Android phone APP Installation Notes  Click "Install",entering into the "background" then click "trust the application" to open the permissions (Select "OK” for all the warning prompts) Apple phone pairing  Set the personal information after the first sign in,Including avatar,nickname,gender,date of birth,height, weight,after entering the main interface,you can modify personal information Click on the avatar...

  • Page 10: Bluetooth Connection And Binding

    Bluetooth Connection And Binding Turn on the bluetooth both on mobile phone and Xwatch before use bluetooth to connection and  binding them.Open the APP then click the left upper icon to enter into the setting interface,selecting "Device Binding”→ "Search and Binding the new device”,searching around Xwatch and connecting →Matching the Xwatch.
  • Page 11 Data synchronization After Bluetooth connect Time synchronization: Time will be synchronized when connect with Phone successfully .   Swipe down to refresh the data of sports : Sport Steps、Sport distance、Calories Consumed，as follows : Data after refresh Step counter interface Sleep monitoring interface Heart rate detection interface The curve is to view historical data,...
  • Page 12 reminder settings Call reminder function: Information reminder function: When a message arrives, this icon will This icon when there is an incoming keep flashing and a beep will sound to call Will keep flashing and emit remind you Didi sound reminder Normal time display (Bluetooth Normal time display (Bluetooth connection status)
  • Page 13 There are two steps to unbind the mobile phone and the Xwatch Pro Bluetooth watch: There are two steps to unbind the mobile phone and Xwatch Bluetooth watch: For Android phones, just unlink the Xwatch Lite Bluetooth device app in the APP, and unbind; ...
