Channel Settings - ADDER ADDERView Secure AVS-1124 User Manual

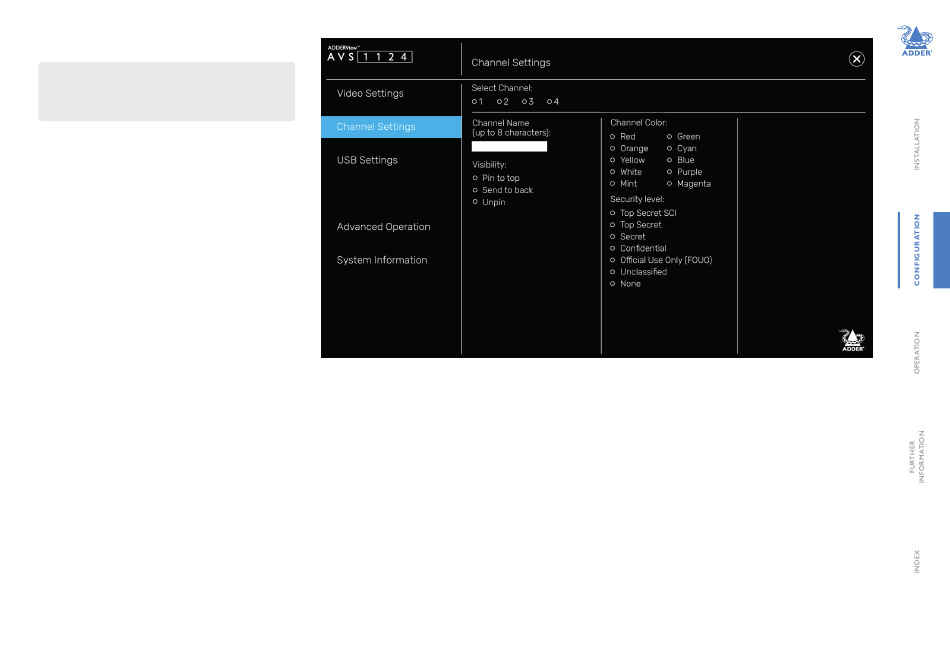

OSD - Channel Settings
To get here
1 On the console keyboard, enter the following in succession:
Left Ctrl then Left Ctrl then o (upper or lower case accepted)
2 Click the Channel Settings menu item.
Channel Name
Allows you to add a name for each channel. To do so: Select a channel
number in the upper section, enter the name in the Channel Name field
(up to 8 characters) and press Return.
Visibility
By default, a window is unpinned, which means it may be located on
top or behind other windows, as they are moved across the display.
Alternatively, the window may be pinned to the top or sent to the back.
Channel Color
On the front panel there is a numbered button for each channel. To assist
with visual feedback for the operator you can change the highlight color
for each button and window border color that will be shown as each
channel is selected.
Security Level
The chosen security level tag will be displayed on the front panel display.
They are abbreviated as follows:
• Top Secret SCI TS SCI
• Top secret TSECRET
• Secret SECRET
• Confidential CONF
• Official Use Only FOUO
• Unclassified UNCLASS
• None [blank]
14
