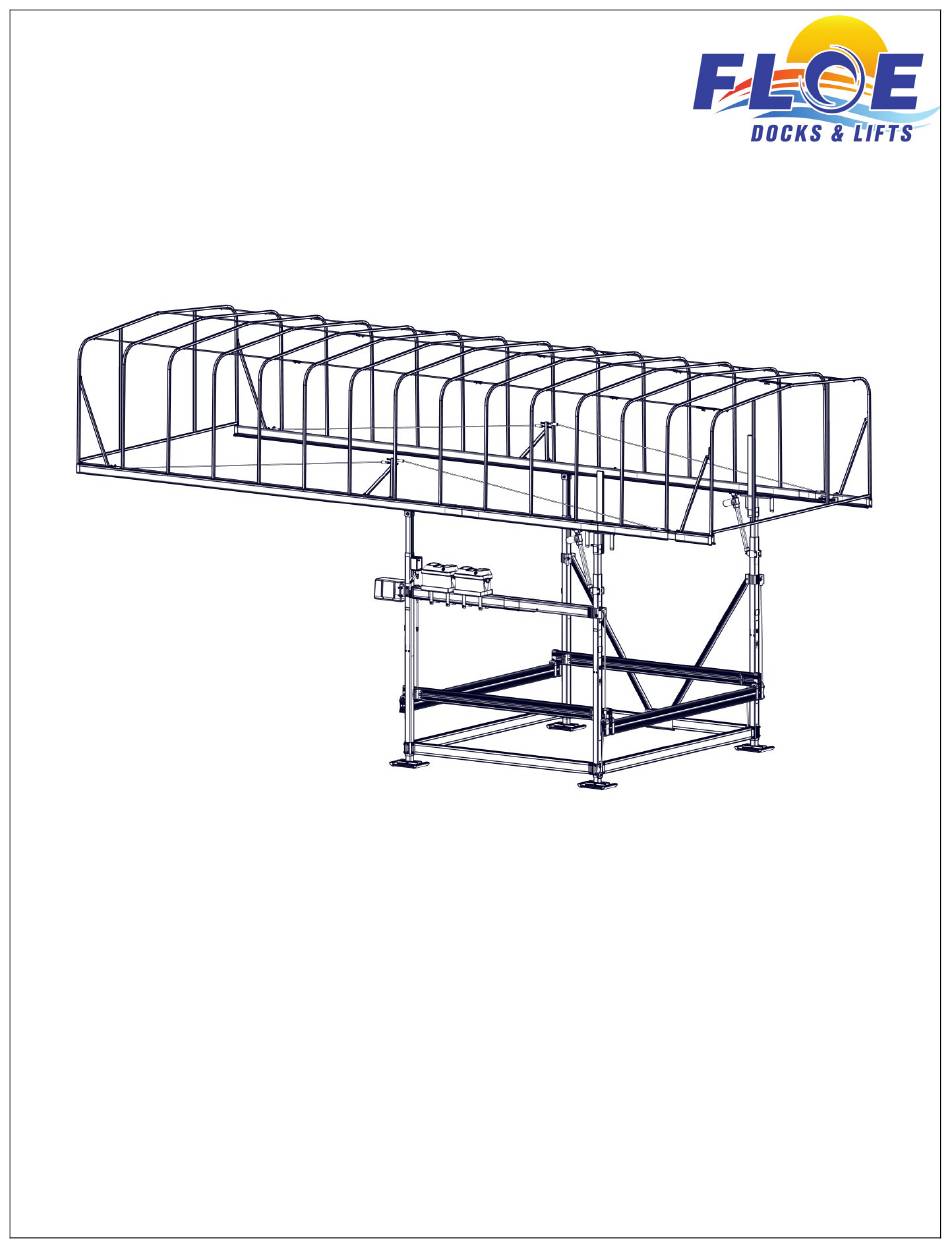

FLOE MAXIS CANOPY SUPPORTS
WITH DUAL CABLES
28' AND LONGER CANOPIES
ASSEMBLY INSTRUCTIONS
KIT P/N 512-00040-00
*LIFT, CANOPY, & TILT KIT NOT INCLUDED
INSTRUCTION P/N: 612-00040-00
RELEASED 4/28/22
SHEET 1 OF 12
TOOLS REQUIRED
-7/8" WRENCH
-(2) 9/16" SOCKETS/WRENCHES
-3/4" SOCKET/WRENCH
-TORQUE WRENCH
-TAPE MEASURE
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Floe MAXIS CANOPY
Summary of Contents for Floe MAXIS CANOPY
- Page 1 FLOE MAXIS CANOPY SUPPORTS WITH DUAL CABLES 28’ AND LONGER CANOPIES ASSEMBLY INSTRUCTIONS KIT P/N 512-00040-00 TOOLS REQUIRED *LIFT, CANOPY, & TILT KIT NOT INCLUDED -7/8” WRENCH -(2) 9/16” SOCKETS/WRENCHES -3/4” SOCKET/WRENCH -TORQUE WRENCH -TAPE MEASURE © Manufactured by: Floe International Inc.
- Page 2 BILL OF MATERIALS/EXPLODED VIEW P/N 512-00040-00 SUPPORTS, MAXIS CANOPY W/ DUAL CABLES NUMBER PART NUMBER QTY. DESCRIPTION 007-09175-00 CABLE, CANOPY SUPPORT – 3/16” 111-01421-00 WELD’T, CANOPY SUPPORT “SIDE A” – TWO CABLES 111-01422-00 WELD’T, CANOPY SUPPORT “SIDE B” – TWO CABLES 512-00003-00 FASTENERS, CANOPY SUPPORT –...
-
Page 3: Installation
INSTALLATION INSTALL ONE 3/8” NUT, WHICH WILL BE REFERRED TO AS THE ADJUSTMENT BOLT LOCK NUT, AND ONE 3/8” WASHER ONTO EACH OF THE 6” ADJUSTMENT BOLTS. INSTALL THE BOLT THROUGH BOTH HOLES IN THE VERTICAL TUBES IN THE SIDE SUPPORTS (FIGURE 1.1). INSTALL A 3/8” NUT ONTO THE BOLT (FIGURE 1.2 &... - Page 4 THE SIDE SUPPORTS ARE PLACED TOWARDS THE CENTER OF THE CANOPY ON EACH MAIN RAIL WITH THE ANGLED SIDE FACING TOWARDS THE END OF THE CANOPY WITH THE MOST OVERHANG. PLACEMENT MAY CHANGE DUE TO AMOUNT OF CANOPY OVERHANG (FIGURE 1.4). INSERT TWO SPECIAL BOLTS INTO THE SLOT IN THE TOP OF THE CANOPY RAIL (FIGURE 1.5).
- Page 5 INSTALL THE SUPPORT BRACKET OVER THE TWO SPECIAL BOLTS ENSURING THAT THE DIAGONAL PART OF THE BRACKET IS FACING FORWARD ON THE LIFT (TOWARDS THE END WITH THE MOST OVERHANG) (FIGURE 1.7). INSTALL A 1/2” NYLOCK NUT LOOSELY ONTO THE SPECIAL BOLTS (FIGURE 1.8).
- Page 6 THREAD THE END OF THE ADJUSTMENT BOLT INTO THE THREADED CABLE END OF THE ADJUSTMENT CABLE UNTIL IT BOTTOMS OUT (FIGURE 1.10). TIGHTEN THE 3/8” NUT AGAINST THE END OF THE CABLE END USING 9/16” & 7/8” WRENCHES TO HOLD THE CABLE WHILE TIGHTENING THE NUT (FIGURE 1.11).
- Page 7 ROUTE THE SUPPORT CABLES ON THE INSIDE OF THE CANOPY HOOPS AS FAR FORWARD AS POSSIBLE (FIGURE 1.13). INSERT A SPECIAL BOLT INTO THE SLOT IN THE MAIN RAIL NEAR THE END OF THE ADJUSTMENT CABLE AND ROTATE IT 90° TO LOCK IT INTO THE RAIL (FIGURE 1.14). FIGURE 1.13 FIGURE 1.14 SHEET 7 OF 12...
- Page 8 MAKING SURE THAT THERE ARE NO TWISTS IN THE CABLE, INSTALL THE CABLE OVER THE SPECIAL BOLT AND INSTALL A 1/2” NYLOCK NUT ONTO THE BOLT (FIGURE 1.15). PULL EACH ADJUSTMENT CABLE AS FAR FORWARD AS POSSIBLE (FIGURE 1.16). FIGURE 1.15 FIGURE 1.16 SHEET 8 OF 12...
- Page 9 TIGHTEN THE NYLOCK NUT TO 60 FT-LB WHILE ENSURING THAT THE CABLE END IS PARALLEL WITH THE CANOPY CHANNEL. CABLE ENDS THAT ARE NOT PARALLEL TO THE MAIN RAIL MAY CAUSE DAMAGE TO THE CANOPY FABRIC (FIGURE 1.17). TIGHTEN THE CABLE BY HOLDING THE HEX END OF THE ADJUSTMENT BOLT WITH ONE 9/16”...
- Page 10 TIGHTEN THE CABLES UNTIL THERE IS NO PERCEIVABLE DOWNWARD BOW IN THE CANOPY BEAM. DO NOT OVERTIGHTEN THE CABLE. NOTE: IF YOU RUN OUT OF ADJUSTMENT THREAD WHILE TIGHTENING THE CABLE, BACK OFF THE ADJUSTMENT SCREW ALL THE WAY AND MOVE THE CANOPY SUPPORT FURTHER FORWARD TOWARDS THE OVERHANG OF THE CANOPY.
- Page 11 NOTES SHEET 11 OF 12...
- Page 12 SHEET 12 OF 12...
