Trust KB-2800 Quick Manual

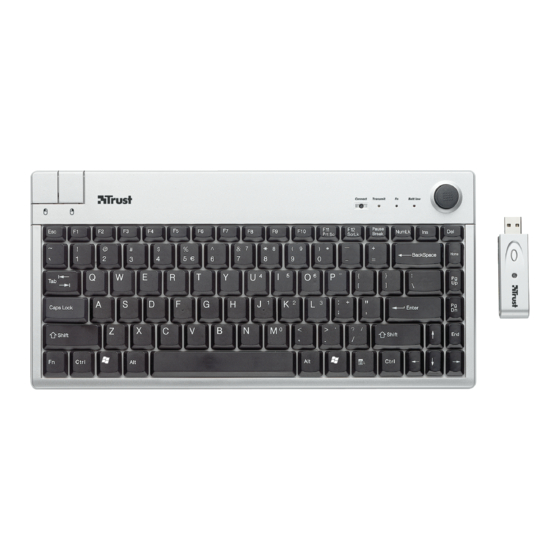

KB-2800 Wireless Pointer Stick Keyboard

Product information

A: Left mouse button
B: Right mouse button
C: Wireless connect button
D:Transmission indicator
E: Function indicator
F: Battery low indicator
Installation & Use
Insert batteries in compartment (H).
1
(1) PC off. (2) Connect Receiver (I) to PC. (3) PC on. Windows ME/XP
2
Windows 98SE/2000: Follow on-screen instructions.
3
Windows 98SE may require original Windows CD to complete installation
(1) Press button (J). (2) Indicator (K) blinks slowly.
4
(1) Press button (C). (2) Indicator (K) blinks faster during app. 25 sec. Product is ready to use.
5
Use buttons A and B, and joystick (G) for mouse functions. Press joystick for 3
6
Indicator (K) flashes during keyboard activity.
Press Fn key to activate extra numeric functions. Indicator (E) lits.
7
Note
Wireless performance
• Reduced wireless performance can be caused by:
- Metal objects close to or between the adapter and the other device.
- Empty batteries.
- Other wireless devices close by.
• Solution
- Use extension cable (L) to reposition receiver.
- Replace the batteries (both indicators F and K flash when batteries are low).
- Keep keyboard within max. range of 8 meter from receiver.

Energy

• Batteries last app. 170 hrs. when continuous use.
• Keyboard will enter reduced power consumption mode after 10 seconds of inactivity, but will respond
immediately after pressing any random key.
• Never recharge the batteries provided and never throw them onto a fire.
• Observe local regulations when disposing of batteries.

Troubleshooting

• If mouse pointer does not move at all, or moves on screen without touching joystick (G), repeat steps 4 and
5.
rd
G: Joystick with 3 mouse button
H: Battery compartment
I: Receiver
J: Wireless connect button
K: Indicator
L: USB extension cable
→
4
1
rd
mouse button.
UK
