Summary of Contents for Stumpfl MONOLYTE

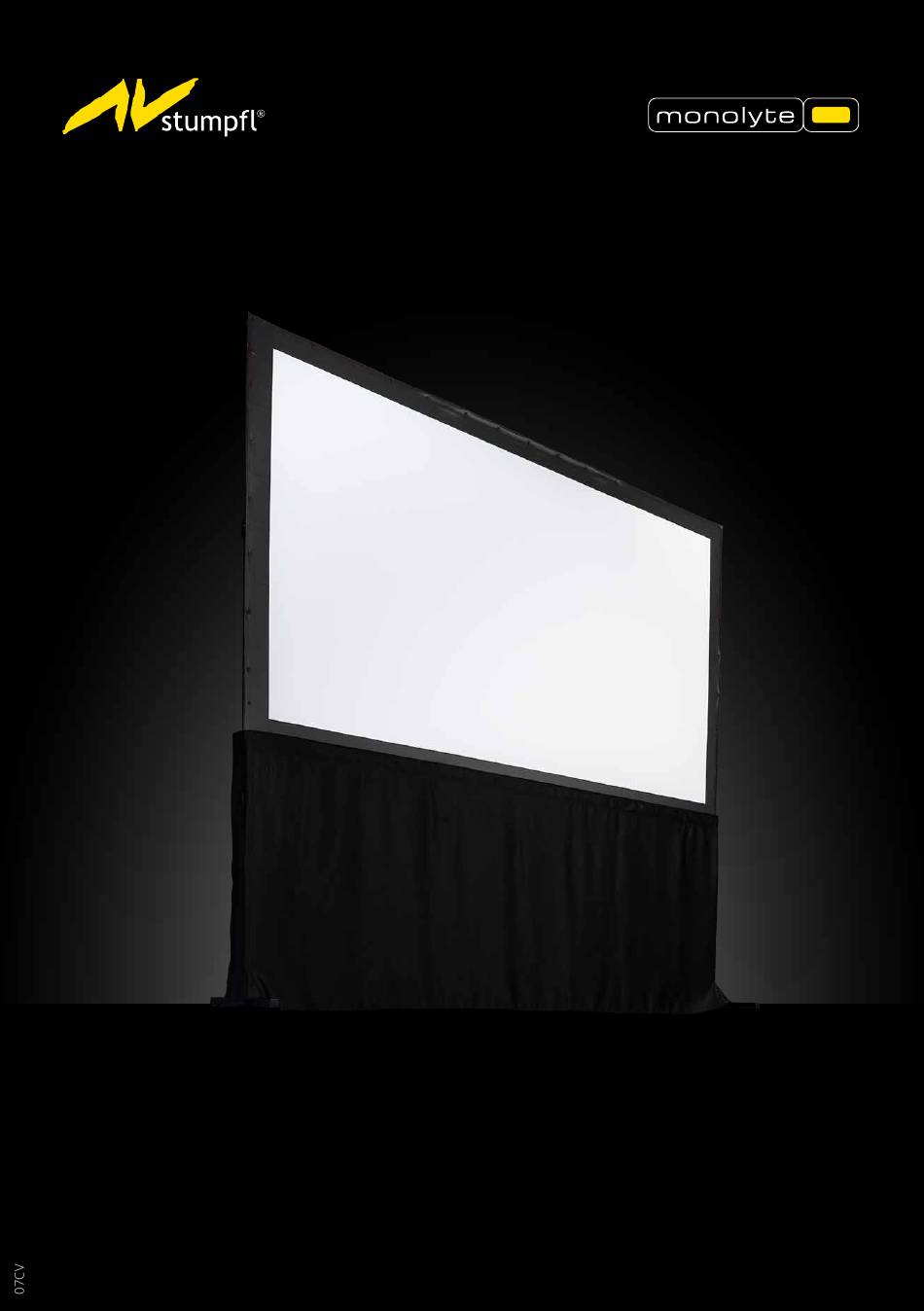

- Page 1 MONOLYTE INSTRUCTION FOR MOBILE UNIBODY SCREEN SYSTEM MONOLYTE...
- Page 2 MONOLYTE FRAME with integrated legs 2 different sizes possible: 4’x7’2” and 4’11” x 8’9” PROJECTION SCREEN BAG Lined storage bag for projection screen...
- Page 3 FLIGHT CASE sturdy, stackable cases with wheels and buckle belt small LxWxH 48,5“x15“x13,5“ (123x38x34cm) big LxWxH 53“x15“x14,5“ (134x38x37cm) MANUAL SKIRT...
-
Page 4: Table Of Contents
INDEX GENERAL ......................5 STANDARDS, REGULATIONS AND TECHNICAL SPECIFICATION ... 5 SAFETY ........................ 5 OPERATION, MAINTENANCE AND SERVICE ..........8 WARRANTY ......................9 FRAME SETUP ....................10 SURFACE AND SKIRT MOUNTING ..............12 ACCESSORIES....................13... -
Page 5: General
BACK GENERAL STANDARDS, REGULATIONS AND TECHNICAL SPECIFICATION This projection screen is in accordance with the safety regulations in DIN standard 19045 and DIN 56950. The screen fabric is comply with DIN 4102 part 1 and the specifications of the according data sheet. - Page 6 BACK SET UP-ASSEMBLY MECHANICAL HAZARDS Danger of injury due to improper assembly. Make sure all frame parts assembled correctly and all hinges and joints are locked before raising screen to standing position. Falling parts can cause severe injury or death! Projection surface damage in case of faulty assembly or set up.
- Page 7 BACK WARNING Mobile projection screens are developed for indoor use only. Failure to follow warning may result in personal injury due to unforeseen acts of nature. Any damage and consequential damage caused by outdoor use is not covered by warranty. BASIC SAFETY REQUIREMENTS Basic safety requirements for „flying“...
-
Page 8: Operation, Maintenance And Service
BACK DISASSEMBLY For disassembly the same safety instructions apply as for assembly and set up. Bring down a projection screen with the appropriate number of people to avoid falling over of the screen. Falling parts can cause severe injury or death! OPERATION, MAINTENANCE AND SERVICE FRAME ELEMENTS, LEGS AND ACCESSORIES The frame elements, legs and additional elements are maintenance-free. -
Page 9: Warranty
BACK WARRANTY The warranty period for production deficiencies is 5 years for the frame elements and 24 months for the projection surface. Mobile projection screens are developed for indoor use only. Any damage and consequential damage caused by outdoor use is not covered by warranty. The general terms and conditions are available at www.AVstumpfl.com/agb LIMITATION OF LIABILITY All the details in this manual were compiled in consideration of the standards and legal regulations... -
Page 10: Frame Setup
BACK FRAME SETUP 1 Folded MONOLYTE frame 2-3 Unfold the frame along the horizontal frame bars, so that the legs are directed towards the audience and the snap studs are facing upwards 4-5 Unfold the vertical frame elements 6-7 The snap joints... - Page 11 BACK 8-9 Lock the corner hinges to gain maximum stability 10-14 Unfold the legs and secure them with the corner hinges Beware of pinch points!
-
Page 12: Surface And Skirt Mounting
BACK SURFACE AND SKIRT MOUNTING 1 Lay out the surface on the frame with the label „OBEN-TOP“ corresponding with the upper frame bar. 2-3 Press on the projection surface by starting at one corner and fasten the buttons one by one. Please mind the instructions for projection surfaces in chapter OPERATION, MAINTENANCE and SERVICE. -
Page 13: Accessories
EASYFLY ™ SUSPENSION CLAMP WITH EYEBOLT This adapters for Monolyte can be attached quickly and easily at any point. The eyebolt fixes the adapter to the profile, offering professional hanging possibilities. Available for profile sizes 32x32mm and 64x32mm. - Page 14 – no tools required. The decoration material is attached by Velcro fasteners. AV Stumpfl Inc. | 1055 Windward Ridge Parkway, Suite 180 I GA 30005 I Alpharetta USA@AVstumpfl.com I www.AVstumpfl.com I tel.: +1 678-330-2980...
