HAMMER AND
MODEL:
HP5040K
• Compact and easy to control
• Accepts all standard 0.401"
shank tools
• With variable position
power regulator for
precise control
• Kit includes:

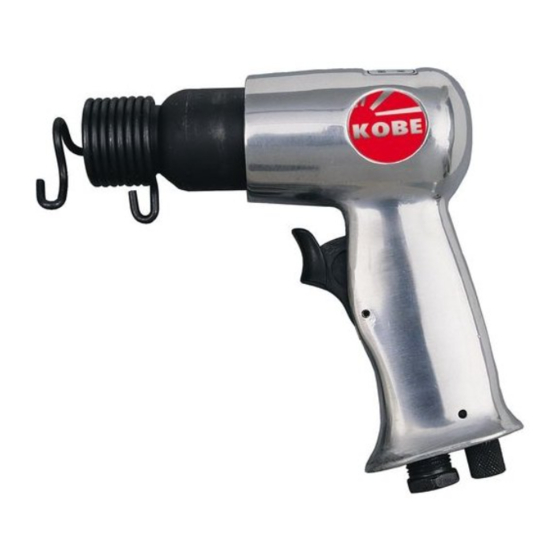

HP5040 pistol grip
hammer, set of four
0.401" shank points:
Flat chisel
Spot weld breaker
Taper punch
Rivet cutter
WARNING: THE SAFETY INFORMATION GIVEN INSIDE MUST BE READ
AND UNDERSTOOD BY ANY PERSON USING, INSTALLING, REPAIRING OR
MAINTAINING THIS PRODUCT.
OPERATOR'S MANUAL
Please retain this information for future reference.
CHISEL KIT
ORDER CODE:
KBE-270-3150K
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KOBE HP5040K
Summary of Contents for KOBE HP5040K
- Page 1 HAMMER AND CHISEL KIT MODEL: ORDER CODE: HP5040K KBE-270-3150K • Compact and easy to control • Accepts all standard 0.401” shank tools • With variable position power regulator for precise control • Kit includes: HP5040 pistol grip hammer, set of four 0.401”...
-
Page 2: Safety Instructions
KOBE SAFETY INSTRUCTIONS PROFESSIONAL A I R T O O L S You have purchased a quality product that is designed for high performance and long service life. If correct use, safety and maintenance procedures are observed this product will last for many years. -
Page 3: Specifications
KOBE SPECIFICATIONS PROFESSIONAL A I R T O O L S ORDER CODE: KBE-270-3150K MODEL: HP5040K WEIGHT: 1.2KG BLOWS PER MINUTE 5,000 BPM STROKE LENGTH 41mm (1.6”) SHANK SIZE 10.2mm (0.401”) AIR INLET THREAD ” NPT HOSE SIZE (ID) 10mm ( ”) -
Page 4: Operation
KOBE SUGGESTED AIR SUPPLY PROFESSIONAL A I R T O O L S WARNING! BEFORE ATTEMPTING TO USE THIS PRODUCT, MAKE SURE YOU ARE FAMILIAR WITH ALL OPERATING AND SAFETY INSTRUCTIONS. STOP VALVE OIL DAILY HERE COUPLING PIPES AND TAILPIECE... -
Page 5: Maintenance
• Store tool away in a dry, clean and secure place out of reach of children. KOBE SERVICE & REPAIRS PROFESSIONAL A I R T O O L S A comprehensive repair and service facility is available through your local Kobe agent. -
Page 6: Parts Breakdown
KOBE PARTS BREAKDOWN PROFESSIONAL A I R T O O L S Index Index Order Code Description Order Code Description KBE-298-0220S Handle KBE-298-0247S Upper Valve KBE-298-0226S Pin (Trigger) (∅3x20L) KBE-298-0250S Valve Disc KBE-298-0223S Pin (Regulator) (∅3x16L) KBE-298-0253S Lower Valve Seat... - Page 7 NOTES...
-
Page 8: Declaration Of Conformity
Should they be found to be defective, they will either be repaired or replaced free of charge (fair wear and tear and/or misuse excepted). Please retain supplier invoice as proof of purchase. KOBE TOOLS OFFICIAL AGENT: THE KENNEDY GROUP LTD, WIGSTON, LEICESTER, ENGLAND, LE18 2FS. © The Kennedy Group Ltd. 10/17...
