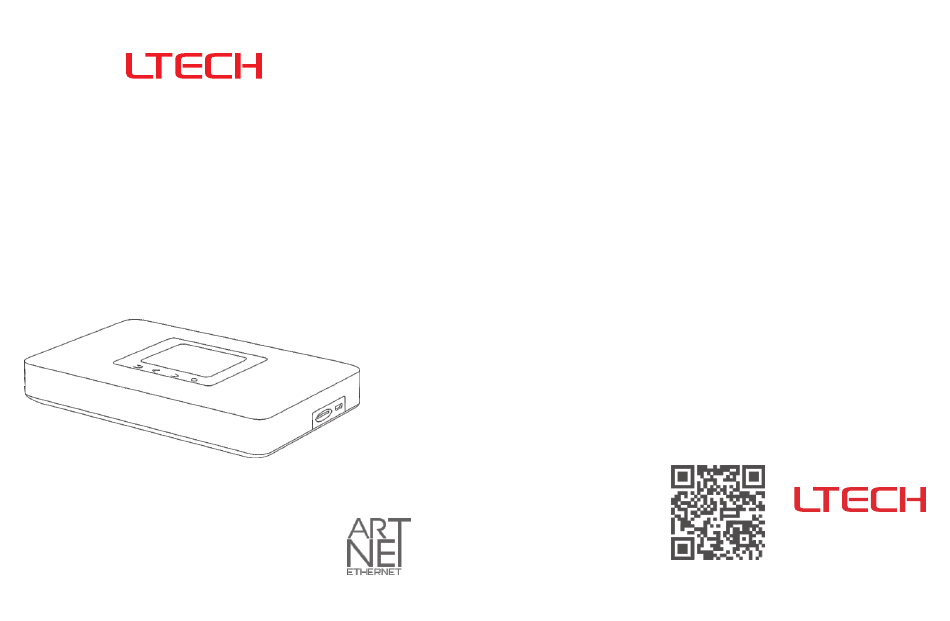

- Page 1 Artnet-DMX Control System Feel grateful, Fighting Artnet-DMX-8S Innovation, win-win www.ltech-led.com Manual...
-
Page 2: Product Introduction

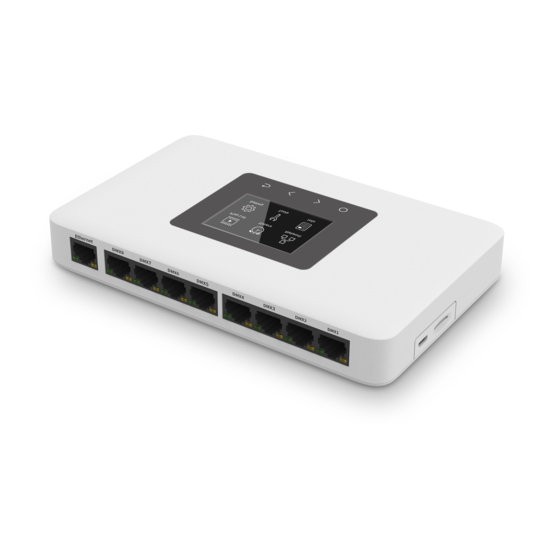

Technical Specs Product Introduction Artnet-DMX-8S Ethernet Control System based on the Artnet protocol. Power input: 5Vdc, 1A Screen size: 2.4“, TFT 320 * 240 Convert the Artnet network data package into DMX512 data. Input signal: Isolation ethernet port:... -
Page 3: Product Size
Wiring Diagram Product Size The unit: mm Main Component Description LCD screen Power input SD card slot Function keys RJ45 RJ45 DMX512 interface network interface... - Page 4 1. Install the Madrix 3 software in the computer, the icon on the desktop : MADRIX 3 2. Use the equipped adapter to power ArtNet-DMX-8S. 3. Connect ArtNet-DMX-8S and computer via the cable. 4. IP Setting: This control system is compatible with random network segment. According to the ArtNet protocol, 2.X.X.X or 10.X.X.X can be added in the computer ( X means arbitrary value),...
- Page 5 LCD Screen Interface Diagram Long press to switch main interface Press to enter menu Boot interface Touch Key Back key Setting key (long press to enter submenu) Parameter adjusting key Entries switch ing key...
-
Page 6: Recording Function
Playlist Timers Press "<" / ">" keys to switch functions. Press "<" / ">" keys to switch functions. Menu When appears in the box, press Menu When appears in the box, press Timers Play List "O" key to enter submenu of Timers. - Page 7 Please set ArtNet-DMX-8S at same network segment as computer IP, factory default of ArtNet-DMX-8S is 2.X.X.X. Monitor Artnet Setting: Long press "O" can update ARTNET-DMX-8S with the file in SD card. Long press "O”, highlighted, press “<”/ “>”key to adjust ArtNet----->DMX1 value, short press “O“...
-
Page 8: Warranty Agreement
Attention Setting 1. The product shall be installed and serviced by the qualified person. 2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
