ArtNet-SPI Control System
Model: Artnet-SPI-4
Artnet-SPI-8
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Artnet-SPI-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Ltech Artnet-SPI-4

Summary of Contents for Ltech Artnet-SPI-4

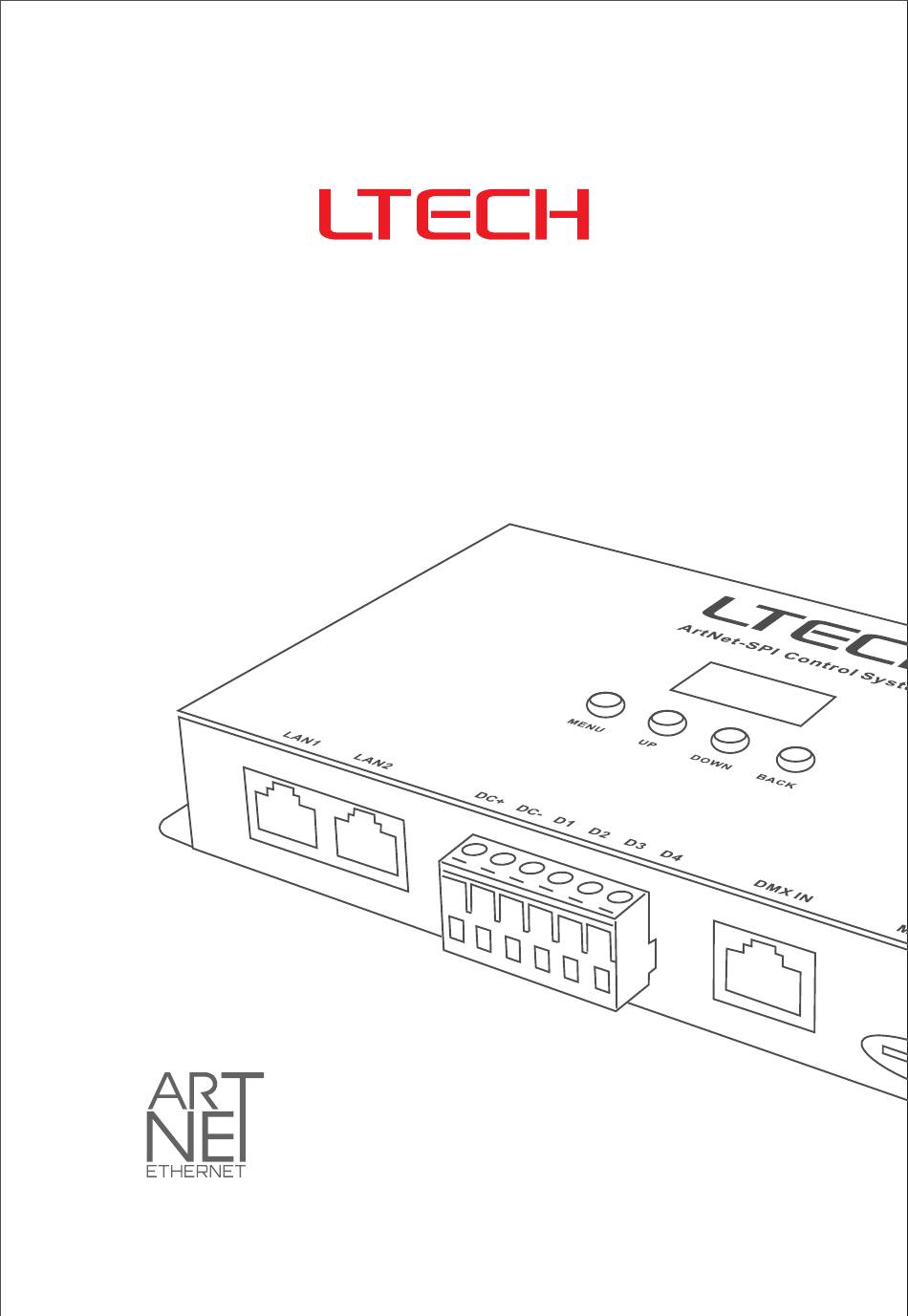

  • Page 1 ArtNet-SPI Control System Model: Artnet-SPI-4 Artnet-SPI-8 Manual...

  • Page 2: Product Introduction

    Product Introduction Ethernet Control System based on the ArtNet protocol. Convert the ArtNet network data package into SPI data. Adopting high-speed ARM processor, stable and reliable. With RJ45 network and DMX512 interface, support DMX management. With OLED screen and 4 keys, very easy for setting operation.

  • Page 3: Technical Specs

    DMX connection: Dimension: L170×W90×H25mm RJ45 Package size: L192×W132×H50mm Network connection: RJ45 610g Weight (G.W): Control: Artnet-SPI-4: 680 pixels, 4 universe Artnet-SPI-8: 1360 pixels, 8 universe 兼容IC： TM1809/TM1804/TM1812/UCS1903/UCS1909/UCS1912/UCS2903/UCS2912 WS2811/WS2812/SK6812/TM1803/TLS3001/KL590/KL592D/WS2821/TM1829LS MBI6120/GW6205/GS8206(BGR)/SM16703/UCS2904/UCS8904B/SK6812(RGBW) Package Contents Control system 1pcs Manual 1pcs SD card (8G) 1pcs...

  • Page 4: Product Size

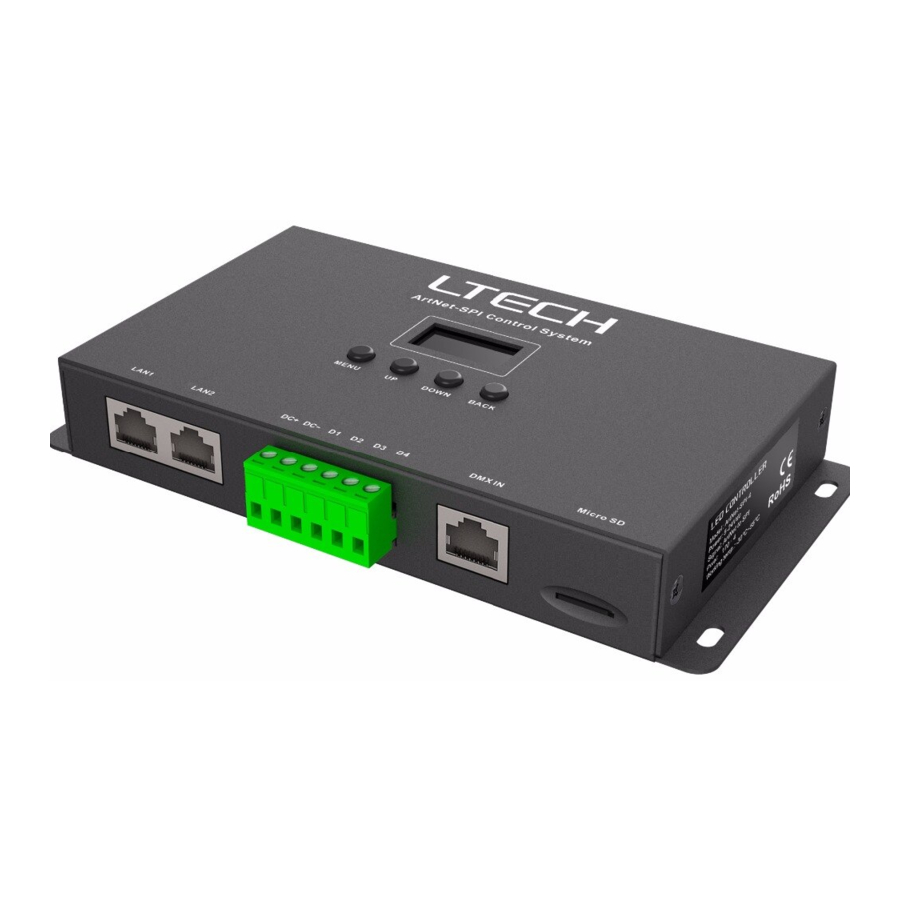

    Product Size Unit: mm Main Component Description Screen Function keys Ethernet DMX512 input/output input SD card slot 5-24Vdc Green terminal power input lamp connection (Power the device and lamps) 5-24Vdc power input (Power the device)

  • Page 5: Wiring Diagram

    Wiring Diagram 1. Connection in series online Artnet-SPI control system …… offline Artnet-SPI control system …… Offline synchronized playback no need to specify the master and slave. 2. Connection in parallel online Ethernet Switch Artnet-SPI …… control system ……...
  • Page 6 Connect ArtNet control system to computer This product is compatible with all the ArtNet software in the market, here take MADRIX as an example: 1. Install the Madrix 3 software in the computer, the icon on the desktop : MADRIX 3 2.
  • Page 7 Artnet-SPI-4 / Artnet-SPI-8 will be searched. 7. Click the tab of "DMX devices", set port status to “ON” if connected successfully. Now, you can use computer to control lamps via Artnet-SPI-4 / Artnet-SPI-8. MADRIX is registered trademarks of Inoage GMbH Co., Inc. in Germany.
  • Page 8 LCD Screen Interface Diagram Key function Menu Back Parameter/Item switching Playing sequently from M/S/Mt/St master controller. Free space / Playing sequently from Total space slave controller. Main display interface Playback Timing palyback from Network SD card or pause master controller.
  • Page 9 Setting Setting Chip type Chip: TM1809 RGB order Order: Bright: Brightness of load lamp DMX: Address of the DMX Press ”MENU” key to switch item. Press “UP“ key or ”DOWN“ key to adjust parameter. Tool Tool Screensaver Never Screen:...
  • Page 10 Network Network DHCP: ON DHCP ON: dynamic IP static IP DHCP OFF: Press ”MENU” key to switch item. Press “UP“ key or ”DOWN“ key to adjust parameter. Dynamic IP‘s parameters are automatically updated and cannot be changed manually. List List 口...
  • Page 11 WorkwiththeRDMProgrammer TheArtNet-SPIControlSystemcanworkwithaDMXaddressprogrammerthatfollowsthe standardRDMprotocol. ItisrecommendedtouseLTECHRDMProgrammer Model:WiFi-RDM01),whichallowsremote browsing,parametersettingandDMXaddresssetting. Support portable power supplies 5-24Vdc Input voltage WiFi-RDM01 DMXsignal MobileAppInterfacefortheRDMProgrammer DownloadtheAppwithyourmobilephoneandconnecttheRDMProgrammersuccessfully,then youareallowedtosetparametersthroughtheAPP.PleaserefertotheWiFi-RDM01manualfor moredetails. a. Atthehomepage,click"Add"ofthedeviceyouaregoingtooperatetoedittheaddress,asshown belowintheinterface. b. Click“ID”togetmoredetailsfordevices. c. Click”No”toissueanrecognizingcommand. d. Click ” ” toview/modifyparameters,includingmodifyingfrequency,mode,curve,querying outputpowerandmodifyingcurrent. e. Click“ ” intheupperleftcornertoaccessthesettingswhichallowsyoutotest,editDMX addresses,setWiFifordevicesandupgradefirmware....
  • Page 12 Program Test 6205BB9980FA DMX Address 6205BB9810FA Setting WiFi 6205BB5248FA About 6205BB5368FA Feedback S oftware Version ：V2.00.01.00 Device Model: ArtNet-SPI-4 Upgrade Producer：LTECH Home page Setting 9:41 AM 100% 9:41 AM 100% Test DMX address: Unicast Choose the sorted models firstly，then modify Srl.NO and click OK...

  • Page 13: Firmware Update

    6454 Method 2. Firmware update with explorer. Open explorer, enter "http://192.168.1.14" in the address bar, “login” interface appeared, enter user name"LTECH", password "123456", then click "login" button. LTECH 123456 Enter the following interface, click "browse" button to select the update file, then click "upload"...
