Summary of Contents for Smart-M DVR16X16

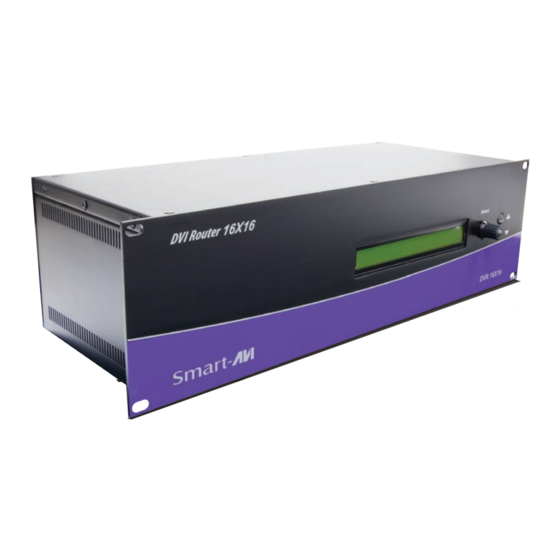

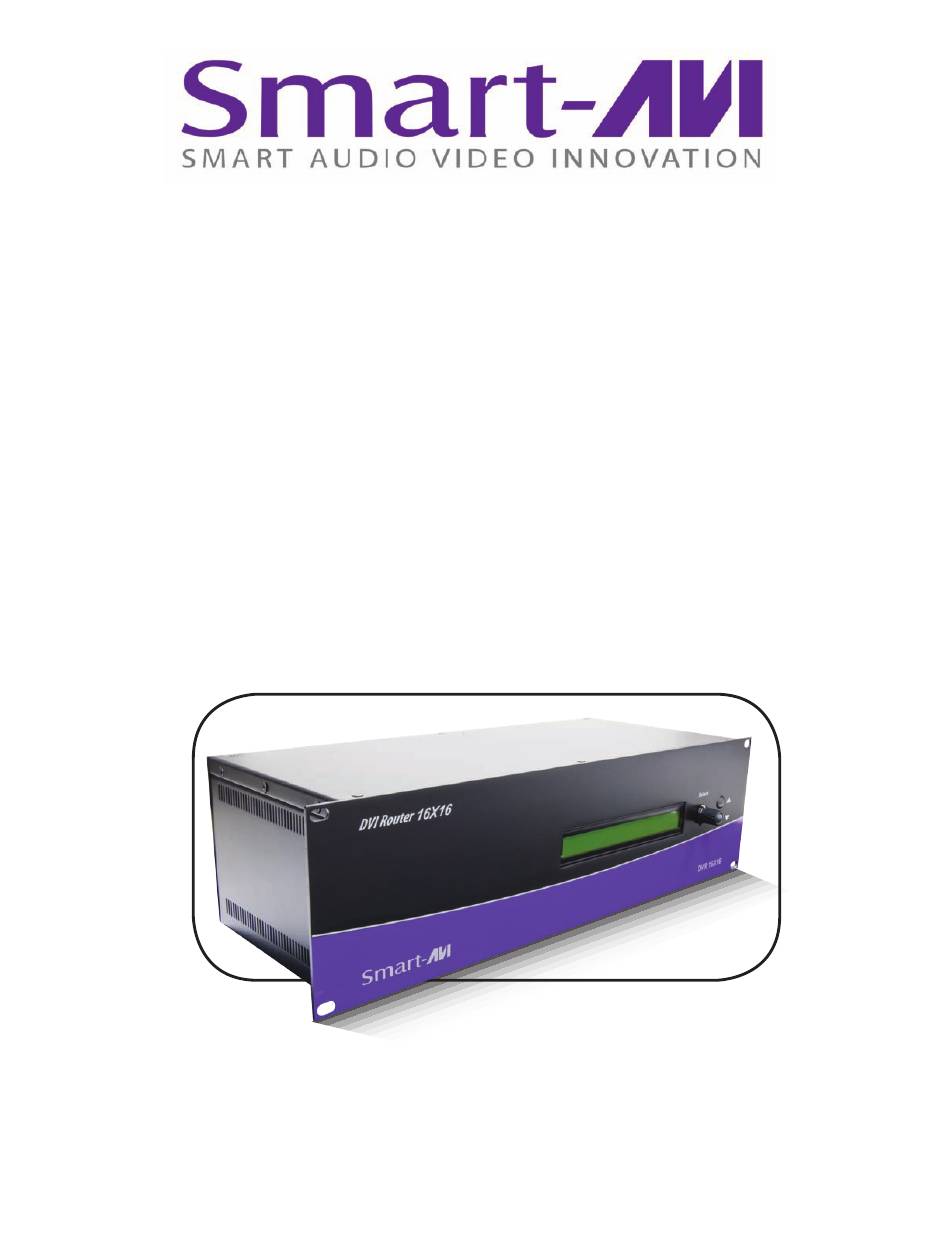

- Page 1 Installation Manual DVR16X16 16-port DVI-D Matrix Switch with RS-232, IR, USB and TCP/IP Control (optional) Display Content From Any 16 Computers On Any 16 Screens Independently Up To 30 Feet Away www.smartavi.com...
- Page 2 16 computers, to up to 16 displays. The switching can Technical Specifications be controlled directly via the front panel, or remotely using RS-232 commands, IR, USB or TCP/IP (optional). The DVR16X16 is controlled by VIDEO Windows®-based software that is easy to understand and simple to use...
- Page 3 1. Power off the computers and displays. 2. Connect the DVI video cables from the computers to the DVI-D inputs on the rear of the DVR16X16. 3. Connect the DVI displays to the DVI-D outputs on the rear of the DVR16X16.
- Page 4 Mac. This mode is indicated by (M). MENU Options To access the other features of the DVR16X16, press and hold both the up and down buttons simultaneously for 3 seconds to bring up the MENU screen. Use the dial to choose from the following list of options: “Learn EDID from Monitor”...
- Page 5 Flexible Control Options Software Installation & Operation (Continued) Find the Installation CD that came with your DVR16x16 unit. This CD has the SmartControl software that you will need RS-232 Control in order to control the unit using a computer. To control the functions of the DVR16X16 using an RS-232 connection, use a male-to-female serial cable to Insert the CD into your CD-ROM.
- Page 6 Software Installation & Operation The Main Routing Window enables you to control the router(s) connections by means of the matrix panel, (Continued) the button panel, or with pre-recorded routes called macros. Matrix Panel: This is probably the simplest way to route the connections. Simply click on the cross point itself.
- Page 7 © Copyright 2010 Smart-AVI, All Rights Reserved NOTICE T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t is subject to change without notice.
