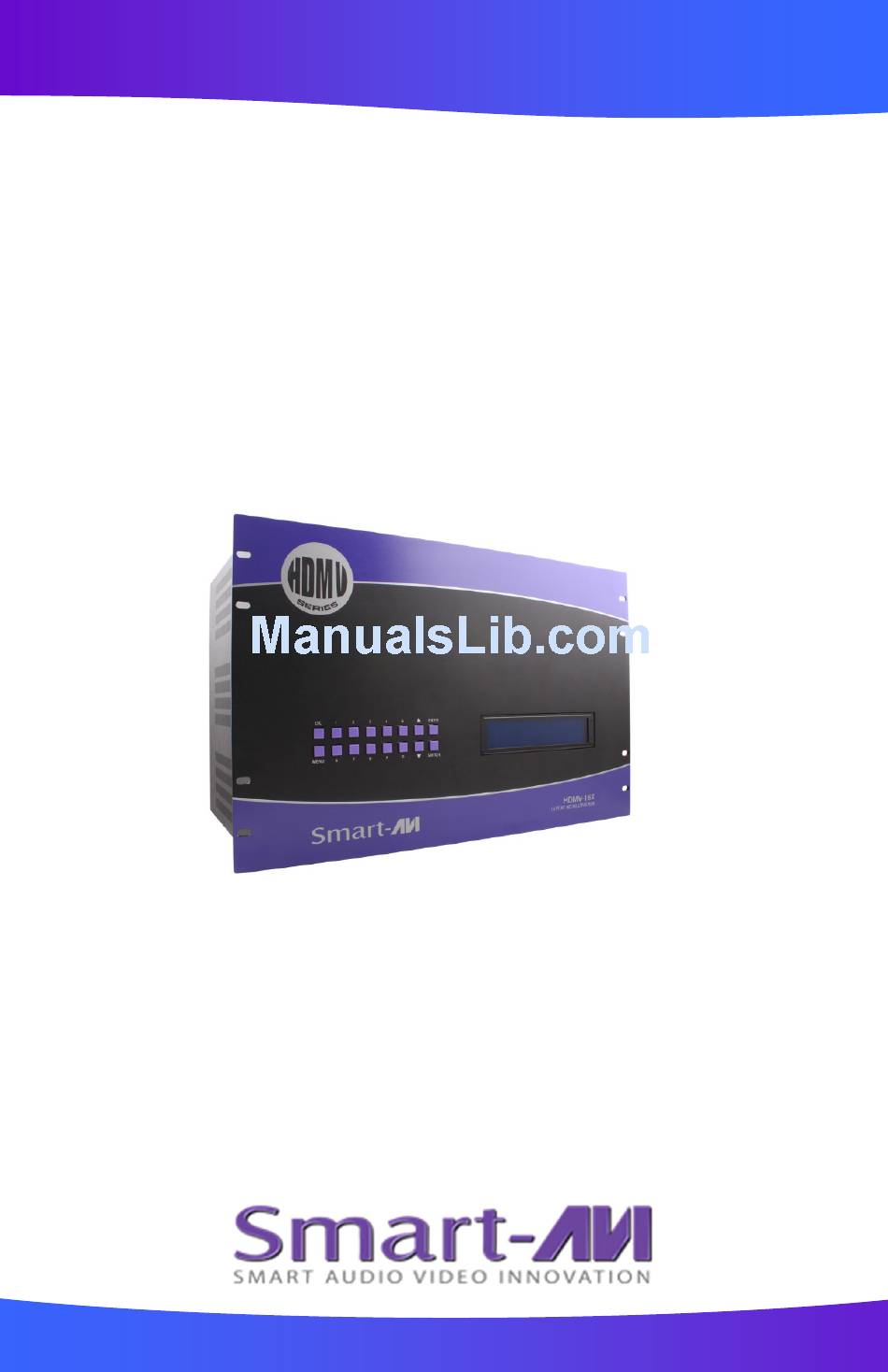

- Page 1 HDMV-16x 16-Port Full HD Multi-Viewer View up to sixteen different HDMI video sources simultaneously on one screen. Installation Manual Made in U.S.A www.smartavi.com 1-800-AVI-2131...
-
Page 2: Table Of Contents
NAVIGATING THE OSD 14-15 ACCESSORIES FIRMWARE UPGRADE Table 2: What's in the Box? RT NO. DESCRIPTION HDMV-16X(+) 16-Port HDMI, Multi-viewer Switch with 16x/9x/Dual/Quad/Full modes Power Cord 6 ft. Power Cable CBLDB906 6 ft. DB9 Serial RS-232 Cable Figure 1: HDMV 16x+ Version 1.3... -
Page 3: Technical Specifications
Table 3: Technical Specifications VIDEO Video Bandwidth Single-link 340MHz [10.2Gbps] Resolution HDTV 480i,480p,720i,720p,1080i,1080p PC Resolution 800 x 600 up to 1920 x 1200 Input Video Signal 1.2 volts Input DDC Signal 5 volts Single Link Range 1080p Format HDMI 1.4 DVI Compliance Single-link DVI-D 2.0 Output Cable Length... -
Page 4: Introduction And Features
RS-232, and either through TCP-IP or the optional KVM. The HDMV-16x uses TCP-IP control while the HDMV-16x+ has KVM control. Features ... -
Page 5: Connecting The Box
Rear Panel Figure 3: Rear Panel of HDMV-16x 1. HDMI inputs 2. TCP/IP Control 3. RS232(1) Control 4. RS232(2) Control 5. Power IN 6. HDMI output Connecting the Box The power connection and switch are located at the back of the unit as well as the RS- 232 connection and all HDMI inputs and output. -
Page 6: Modes
Modes Full Screen Mode - In the Full Screen mode, one of sixteen video sources are displayed in full screen size and maximum resolution. Dual Screen Mode - In the Dual Screen mode, the screen is split into two fields of equal size with two video sources displayed in each field. Aspect ratio is maintained in dual screen mode. -
Page 7: Tcp/Ip Control
“SWITCH” button and confirming with “ENTER”. TCP-IP Control Please note that TCP-IP control is only enabled for the HDMV-16x, the HDMV-16x+ offers KVM control instead. To enable TCP-IP control, connect an ethernet cable to the HDMV’s ethernet port. Refer to page 5 for port information. - Page 8 Device Configuration In Device Configuration, there are three separate configurable sections: EDID Configuration, Rename Channels, and Device Configuration. This webpage is shown in Figure 6 and Figure 7. EDID configuration allows setting the EDID to either a local monitor, CAT-6605 (EDID 1), or FHX2300 (EDID 2). Select the desired EDID configuration and hit the “Submit”...
- Page 9 Figure 7: Device Configuration Network Configuration In network configuration, shown in Figure 8, the HDMV can be configured to use DHCP or a static IP. By default DHCP is enabled. If static IP is desired, switch the setting to static IP and enter the static IP, the subnet mask, the gateway address, and hit the “Submit”...
- Page 10 Figure 9: Administration Webpage Full Mode In Full Mode menu, the webpage in Figure 10 will appear: Figure 10: Full Mode Webpage The drop-down menu will display all the channels available. Select the desired channel, then hit the “Submit” button. A macro with the selected channel can also be saved for common configurations.
- Page 11 Dual Mode In Dual Mode menu, two screens will be shown with two drop-down menus with all available channels. Select the desired channels, then hit submit. Refer to Figure 11 for reference to layout. Figure 11: Dual Mode Webpage Quad Mode In Dual Mode menu, four screens will be shown with four drop-down menus for each screen with all available channels.
-
Page 12: Kvm Operation
KVM Operation KVM Setup Please note that KVM control is only enabled for the HDMV-16x+, the HDMV-16x offers TCP-IP control instead. To enable KVM functionality connect USB type B to type A connectors, shown in Figure 13 below, for each desired user. Connect the Type B end to the HDMV then the Type A end of to the workstation corresponding to that user. -
Page 13: Rs-232 Operation
Table 4: Hotkey Sequences Function Hotkey Sequence Description [Ctrl][Ctrl][1][6][x][ENTER] Displays all sources in a 4x4 matrix Full [Ctrl][Ctrl][F][m(m)][ENTER] Display 1 defined source full screen Dual [Ctrl][Ctrl][D][m(m)}[ENTER] Displays all sources in a 1x2 matrix [n]([n])[ENTER] Quad [Ctrl][Ctrl][Q][m(m)][ENTER][n(n)][EN Displays all sources in a 2x2 matrix TER][o(o)][ENTER][p(p)][ENTER] User Switch [Ctrl][Ctrl][U][x(x)][ENTER]... -
Page 14: Console Commands
The OSD can be accessed through the front panel or USB keyboard if your HDMV has the optional KVM. Hit OSD/Esc button on the front panel for the menu shown below in Figure Figure 15: OSD Menu Note: The menu may appear different for the HDMV-16X Version 1.3 www.smartavi.com... -
Page 15: Accessories
All sources default to USER[X] on first launch. The name of each source can be changed through the web control or through the optional KVM. The HDMV-16x will save the names in its memory and it will retain the names after power cycles. - Page 16 Notes Version 1.3 www.smartavi.com...
- Page 17 Notes NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
