TECHNICAL SPECIFICATIONS
VIDEO
Format
DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface
(2) DVI-D 29-pin female
Output Interface
(1) DVI-D 29-pin female
Resolution
Up to 1920 x 1200 @60Hz
DDC
5 volts p-p(TTL)
Input Equalization
Automatic
Input Cable Length
Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Frequency Response 20 Hz to 20 KHz
Impedance
600 ohm
Nominal Level
0-1.0 V
Common Mode
Rejection at 60dB
Input Interface
(2) 3.5 mm Stereo Audio
Output Interface
(1) 3.5 mm Stereo Audio
USB
USB 2.0, 1.1 and 1.0 w/ Internal
Signaling
Hub
Input Interface
(2) USB Type B
Output Interface
(2) USB Type A
CONTROL
Front Panel
Button
DB9 Female, 9600 bps, N, 8 1,
RS-232
No flow control
OTHER
5VDC2A
Power Supply
Weight
.65 lbs.
Dimensions
6.75"W x 3.75"D x 1.8"H
Approvals
UL, CE, ROHS Compliant
Operating Temp.
32 to 131°F (0 to 55 °C)
Storage Temp.
-4 to 185 °F (-20 to 85 °C)
Humidity
Up to 95% (No Condensation)
No Keyboard or Mouse Emula-
Emulation
tion
WHAT'S IN THE BOX
PART NO.
QTY
DESCRIPTION
DVN-2PS
1
2X1 DVI-D, Audio switch
PS5VDC2A
1
Power Adapter
1
Quick Start Guide
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20161028
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

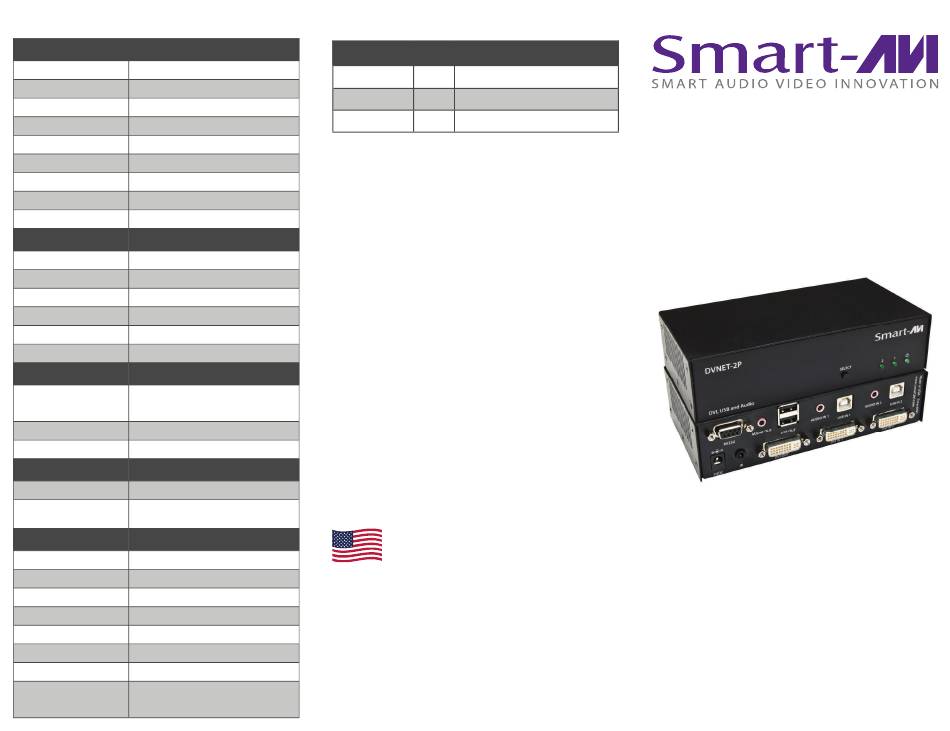

DVN‐2P
2-Port KVM Switch
with Stereo Audio
Control 2 Computers, PC or Mac
on one DVI-D Display Up To 20
Feet Away with USB 2.0 Keyboard
and Mouse, Stereo Audio and RS-
232 Remote Control
Quick Start Guide
