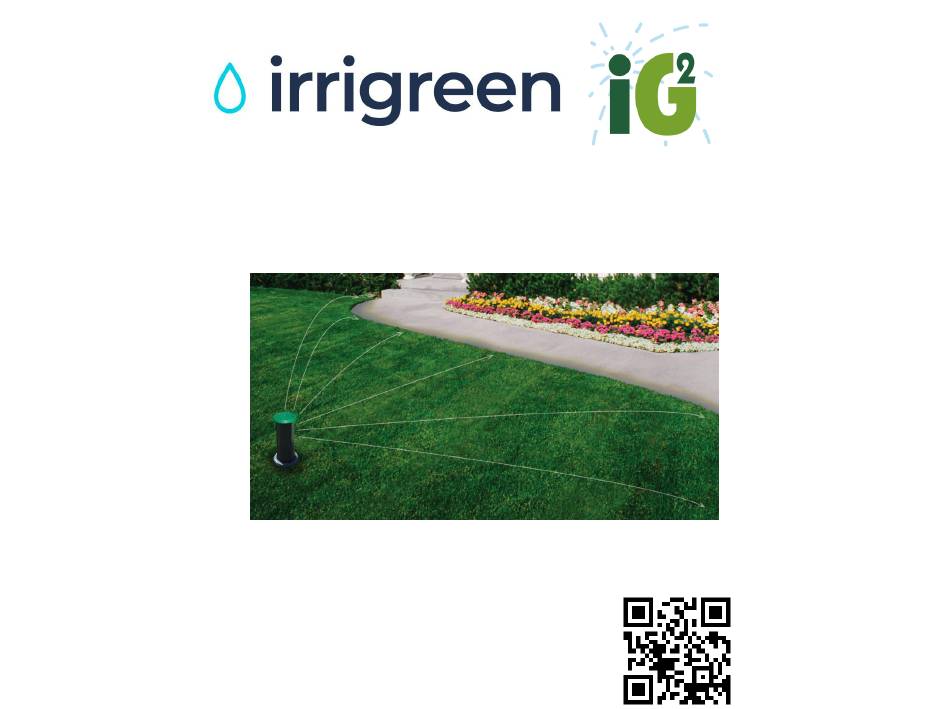

- Page 1 Irrigreen2® App Guide One Head per Zone … Simple. Mobile App Video Irrigreen.com/professionals-logged-in/ IG2-APP-2.0.3 Password: goirrigreen!
-
Page 2: Connect With Ios App
Connect with IOS App 1. Start IG2 App 3. Select “Allow While Using App” 2. Click “Allow In Use Location”... - Page 3 Connecting with IOS App 4. Click “Add Controller” 5. Scan Barcode on Controller...
- Page 4 Connecting with IOS App 6. App Will Start Connecting 7. Connected Screen...
- Page 5 Connecting with IOS App App/Dashboard Menu appears 8. Dashboard Will Appear on bottom of screen Wi-Fi Connection Status light must be Green. Yellow is an unstable connection. Red is no connection, move back in range and Click to reconnect.
- Page 6 Online Monitoring • Roll the system over to the property owner’s 2.4 GHz Wi-Fi network for internet access • IrriGreen will update system software remotely • IrriGreen will monitor system efficiency • This typically improves Wi-Fi range for zone...
- Page 7 Rollover to Home Wi-Fi. App will automatically prompt user for rollover Follow Wizard, then Go to Dashboard connect mobile device to Click Wi-Fi Click “More” the home network Settings...
- Page 8 IOS System Settings Go to System Setup Page Click “More” Click “System Setup”...
- Page 9 IOS System Settings: Flow Sensor Flow Meter Setup Page System Setup Page Select Flo1 if Flow Sensor Click Flow Meter wired to Flo1 in Controller...
- Page 10 IOS System Settings: Master Valve/Pump Master Valve Setup Page System Setup Page Select MV/P if system has a Click Master Valve Master valve or Pump...
- Page 11 IOS System Settings: Rain/Soil Sensor Master Valve Setup Page Rain/ Soil Sensor Setup Page System Setup Page Select MV/P if system has a Select Sens1 if Rain/Soil Click Master Valve Master valve or Pump Moisture Sensor wired to Sen1 in Controller...
- Page 12 IOS Digital Zones are Pre-enabled for each Installation at the Factory To enable Digital Sprinkler Zones There are 16 (or 32) (if needed): Digital Zones available, as two (or A. Go to Setup Page four) separate sequences of eight. B. Click Digital Zone Button to green On position You may divide the zones up between the...
- Page 13 Sprinklers are Pre-numbered for each Zone Sprinklers will run in that numerical order* Locate sprinklers in the order you want them to run *Head #1 runs first Digital Sprinklers have Zone Numbers 1-16 Head #2 runs second assigned at the factory Head #3 runs third Etc.
- Page 14 DON’T pull IrriGreen Cables DO loop excess Cable inside a valve box adjacent to the head, buried below turf DON’T cut and splice IrriGreen Cables DO branch out your Cables in different directions with Tees Use a 6FT Plug-n-Play Cable Tee; use supplied End Plug to seal the last Sprinkler connector plug...
- Page 15 IOS Zone Mapping Click Zones Select Digital Zone...
- Page 16 IOS Zone Setup: First, Calibrate Digital Zones Calibrate Every Digital Zone Before Mapping Click Calibrate Button Start Mapping Zone Shape Takes about 4 minutes Click Edit Head sprays varying distances Click “Edit” to program Zone Shape Head will pop up and spray ~15’...
- Page 17 IOS Zone Startup: Map Digital Zones Program/Map Sprinkler to Zone Shape 5. Click/Hold “Rotate Arrow” to turn streams 437 Rotation settings, every 0.8 Clockwise rotation only 6. Click “Up / Down” Arrows to Set Distance Distance (~6” increments) Distances are approximate 7.
- Page 18 Zone Map/Programming Rules • When zone is started up, it • Set map points to track about 6” from zone edges; water will spray at Rotation “0” will soak out to the edge and 15 feet • Up to 50 map points are •...
- Page 19 Digital Zone Map Point Table Point 1 is the start up position, must be 10’+ Point 1 becomes the zone start up position Position 1 may be any Rotation Position : 0-437 Position 1 must be 10+ feet so the head has Distances are enough flow/pressure to fully “pop up”...
- Page 20 IOS Back Up and Play Functions Use “Play” to check your Zone Map Click Play Icon Click Reverse-Rotate Arrow System will quickly run Streams will backup 15 through the Zone Map degrees to redo Positions...
- Page 21 IOS Change Zone Click Zones Select Digital Zone...
- Page 22 IOS Schedule Page for Days & Times ABCD Schedules for Multiple Scheduling Watering Days Start Time Select Inches of water to apply. (Should be a minimum of .25” so that enough water is applied per watering event to allow water to soak in between the streams)
- Page 23 IOS Zone Editing: Go to a Position Menu Appears Scroll Position Table Click Move to Position Click the Point Head will rapidly turn to that position Position is highlighted in the Position Table when the head is on that position...
- Page 24 IOS Zone Editing: Delete a Position Scroll Position Table Menu Appears Click the Point to Delete Click Delete Position is highlighted in the Position Table when the head is on that position...
- Page 25 IOS Insert New IOS Edit Position Positions Distances Rotate to a new vector between Rotate to a Position two Positions Edit distance Set distance Click Save Click Save Saves distance Rotate existing to a new Position vector...
- Page 26 IOS Erase Zone Map Deletes all saved Positions Zone calibration is not affected Menu Appears Click Menu Icon Click Erase All Points...
- Page 27 Name Zones Page Add Zone pictures Click Icon to name a Zone Tap to Edit: Name Zone and add a photo Add Zone Picture...
- Page 28 Stop All Watering: Press Red button 1 second System Reset: System Reset: Press Green button 1 second. Will re-connect to Home Wi-Fi in 10 seconds Direct Connect to Controller: Press Red button 3 seconds and log into the Irrigreen Wi-Fi network within 90 seconds...
