Summary of Contents for IrriGreen IrriGreen2

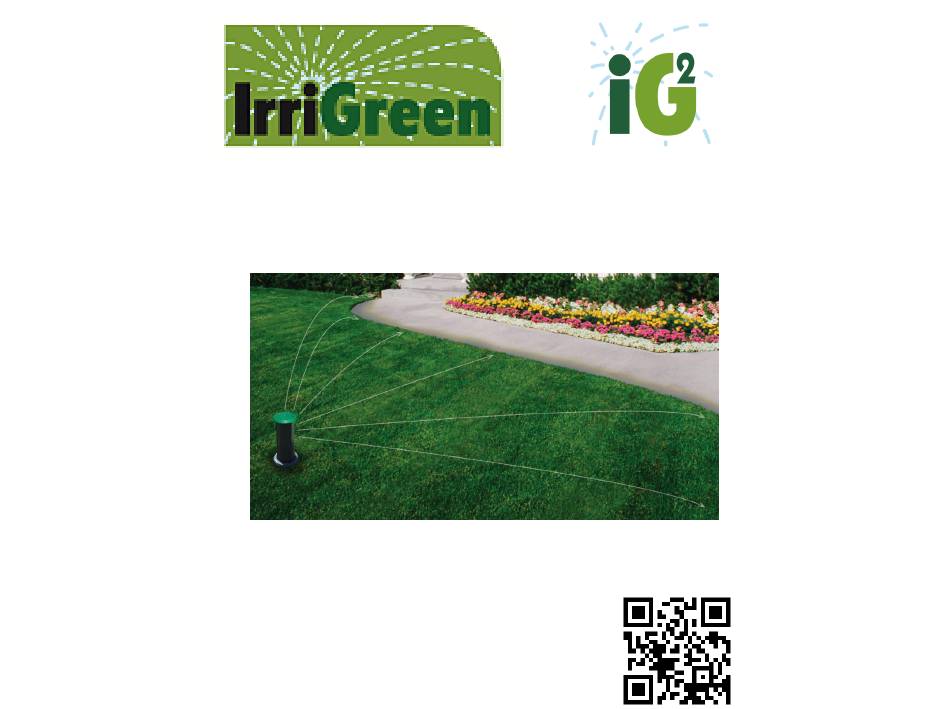

- Page 1 IrriGreen2® App Guide Android One Head per Zone … Software Does the Rest!! Mobile App Video Irrigreen.com/professionals-logged-in/ IG2-APP-1.0.0 Password: goirrigreen!
-
Page 2: Getting Connected
Getting Connected IrriGreen Wi-Fi Network & App Startup Steps 1. Download IrriGreen2 app with “iG2” logo: 2. Go to your device Settings 3. Go to Wi-Fi Settings 4. Find IrriGreen network 5. Log onto IrriGreen network 6. Enter 10 digit password on Controller removable label 5. - Page 3 Log on IrriGreen® Wi-Fi Network: Steps 1-3 1. Go to your mobile device Settings 2. Go to Wi-Fi Settings 3. Find IrriGreen network Android IrriGreen Wi-Fi network address Note: No need to log onto property owner’s Wi-Fi network Wi-Fi Range: Wi-Fi is a low-power radio signal...
- Page 4 Log on IrriGreen® Wi-Fi Network: Step 4 4. Enter 10 digit password on removable label 0123456789 0123456789 Log-in Hints A. Make sure you are in Wi-Fi range of Controller, check Wi-Fi signal strength meter B. Password entered correctly, check UPPER/lower cases C.
- Page 5 Start App: Steps 5-7 5. Tap on 6. Add Customer 7. Highlight Customer IrriGreen 2 Name and address and click Select Mobile App (iG2 logo) NOTE: iOS security requires logging into the network before starting the app...
- Page 6 Dashboard Appears: Step 8 Last Watering Day, Gallons Used Last Watering Event, Gallons Used Last Week/Last Quarter, Run Time & System Status Android iOS (Available 1Q 2020) NOTE: If notice appears, touch & hold to clear. If it re-appears, zone may not be running properly, contact your installer.
- Page 7 Home Wi-Fi Network Rollover Required for Cloud Monitoring / Updates • For IrriGreen2 system monitoring, roll the system over to the property owner’s Wi-Fi network for internet access • Rolling the Wi-Fi over to the property’s Wi-Fi network will typically improve Wi-Fi range for zone mapping •...
- Page 8 4. Click Connect 5. IrriGreen Wi-Fi network will disappear from your Wi-Fi Settings 6. Log into your Home network and start IrriGreen2 app NOTE: Pushing Reset Button or unplugging system briefly will allow logging into the IrriGreen Wi-Fi network for 90 seconds...
-
Page 9: App Navigation
App Navigation Android Upper left icon opens menu Menu on Bottom of Screen NOTE: IrriGreen system clock is set to the mobile device time whenever the app opens the Dashboard The two AAA batteries in the Controller are for system clock backup. - Page 10 System Settings: Step 1 Go to Setups Page iOS (Available 1Q 2020) Android...
- Page 11 System Settings: Step 2 B. Popup menu will appear A. Click & hold (3 Digital Zones shown) “Press to Edit”...
- Page 12 System Settings: Step 3 Select Flow Meter 1 (Wire Red Flow Sensor lead to “Sen1”, Black lead to “Common” Terminal Black Flow Sensor lead Red Flow Sensor lead to to“Common” Controller Terminal“Sen1”...
- Page 13 System Settings: Step 4 Select Sensor Inputs for any Rain or Soil Moisture Sensors (SMS) (No Sensor Inputs is the default) No Sensor Inputs (Default) A. Click “Sensor: None”(default) 1 Sensor (Rain sensor or SMS) B. Sensor Input Menu appears 2 Sensor (Rain and Soil Moisture) C.
- Page 14 IrriGreen Enables the Digital Zones for an Installation at the Factory To enable Digital Sprinkler Zones There are 16 (or 32) (if needed): Digital Zones A. Go to Setup Page available, as two (or four) separate sequences of eight. B. Click Digital Zone # You may divide the C.
- Page 15 Sprinklers are Pre-numbered for each Zone Sprinklers will run in that numerical order* Locate sprinklers in the order you want them to run *Head #1 runs first Digital Sprinklers have Zone Numbers 1-16 Head #2 runs second assigned at the factory Head #3 runs third Etc.
- Page 16 DON’T pull IrriGreen Cables DO loop excess Cable inside a valve box adjacent to the head, buried below turf DON’T cut and splice IrriGreen Cables DO branch out your Cables in different directions with Tees Use a 6FT Plug-n-Play Cable Tee; use supplied End Plug to seal the last Sprinkler connector plug...
- Page 17 Calibrate & Map Digital Zones: Steps 1-2 1. Select Zones 2. Select Zone to Map Only Digital Zones Appear* *NOTE: Valve zones will appear on the Schedule Page...
- Page 18 Calibrate & Map Digital Zones: Steps 3-4 Calibrate Each Digital Zone Before Mapping 3. Yes, Calibrate 4. Start Programming? Takes about 4 minutes Head will pop up Head pops up several times and spray ~15’ at Position “0” NOTE: If zone has been calibrated, select...
- Page 19 Calibrate & Map Digital Zones: Steps 5-7 Program/Map Sprinkler to Zone Shape 5. Click/Hold “Rotate” to turn streams Water streams 437 Rotation settings, every 0.8 Clockwise rotation only Digital Sprinkler 6. Click “- / + (Minus/Plus)” to Set Distance Distance (~6” increments) Distances are approximate 7.
-
Page 20: Programming Hints
Programming Hints • Set points to track about • When zone is started up, it 6” from zone edges will spray at Rotation “0” and 15 feet • Up to 50 map points are allowed per zone • It will turn only when you tap/hold “Rotate”... - Page 21 Zone Map & Position Table System follows a straight line between inserted Positions Positions appear on Zone Map • To follow curves, insert points close together • Head will drop and rotate to next Position if two Positions are over 180 Degrees apart •...
- Page 22 Digital Zone Map & Position Table Position 1 is the start up position, must be 10’+ Position 1 becomes the zone start up position Position 1 may be any Rotation Position : 0-437 Position 1 must be 10+ feet so the head has enough flow/pressure to fully “pop up”...
- Page 23 Go to a Position Two Methods Scroll Position Table Click/Hold Rotate until head Click/hold Position to highlight rotates to next Position Click: Go to position Fastest SAVE appears Method Head will rapidly turn to Position Position is highlighted in the Position Table when reached...
- Page 24 Edit Position Distances Insert New Positions Rotate to a new point between Rotate to a Position two Positions (Save appears) Set distance Edit distance Click Insert Click Save Saves distance Creates existing Position Position...
- Page 25 Delete a Position System will connect the remaining Positions Click/hold Delete position Position in table to highlight...
- Page 26 Erase Zone Map Deletes all saved Positions Zone calibration is not affected Click upper right Icon Click Erase Confirm: Yes...
-
Page 27: Change Zone
Change Zone Click Digital Zone Select Digital Zone... - Page 28 Schedule Page for Days & Times ABCD Schedules for Multiple Scheduling Shown: Android App with three Digital Zones and three Valve Zones Select Schedule: A-B-C-D Watering Turn each Days Schedule On/Off Start Time Duration is calculated by the app (total run time)
- Page 29 Set Inches of Water for Digital Zones .055” Water is Evenly Applied per Revolution Click/hold Digital Select inches of App calculates & Zone until popup water in increments displays total menu appears of .055” Inches & Run Time...
- Page 30 Set Time for Each Standard Valve Zone For any drip, spray or rotor zones Touch and hold Menu appears App displays Valve Zone Select run time Run Times...
- Page 31 Manual Zone Run / Blow Out Select On to run that Zone Select Flush/Blowout to Select Manual Select Zone open valve with no rotation NOTE: Each zone (Digital or Valve) will run for the revolutions or time set on the Schedule Page, or until turned off on this page.
- Page 32 Resetting a Digital Sprinkler Number 1. Disconnect Cables to Bypass all other Digital Sprinklers 5. Go to Zones, select 2. Go to Zone Programming 4. Click Recall 3. Click upper right Icon desired Sprinkler # 7. Click Start Programming 8. Wait for sprinkler to start 6.
