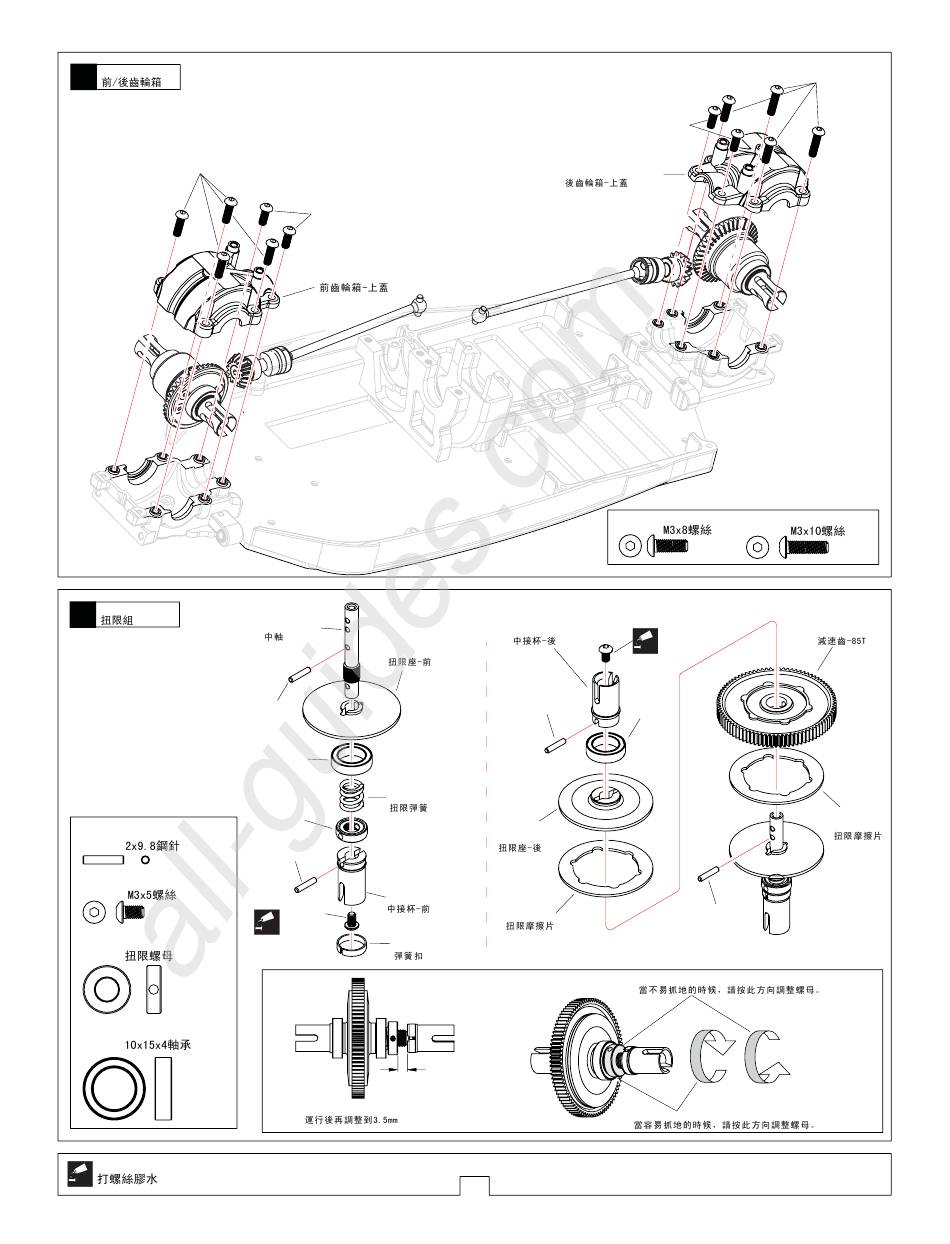

Team C T4 V2 Manual page 6

5
F/R Gear-Box
TR4059 M3x10
6 Slipper set
T04032 2x9.8 Pin
...............4
TR4059 M3x5 Screw
..................2
T04018 Slipper nut
...............1
T02099 10x15x4 Ball Bearing
............2
Apply threadlocker(screw cement)
Screw
Cement
All manuals and user guides at all-guides.com
TR4059 M3x8
TR4002
Front Gear-box-cover
T04023
Center Shaft
T04020
Slipper Hub-F
T04032
T02099
T04019
Slipper Spring
T04018
T04032
T04021
Mid Connecting Hub-F
TR4059
M3x5
Screw
TR4022
Cement
Spring Buckle
3.5mm
Aften first run, re-adjust to around 3.5mm
TR4059 M3x8
T04039
Rear Gear-box-cover
TR4059 M3x8 Screw
T04021
Mid Connecting Hub-R
Screw
Cement
T04032
T02099
T04020
Slipper Hub-R
T04036
Slipper pad
Loosen for more slippage
Tighten for less slippage when traction grip
3
TR4059 M3x10
TR4059 M3x10 Screw
.........4
.........8
TR4027
Supr Gear-85T
TR4059
M3x5
T04036
Slipper pad
T04032
