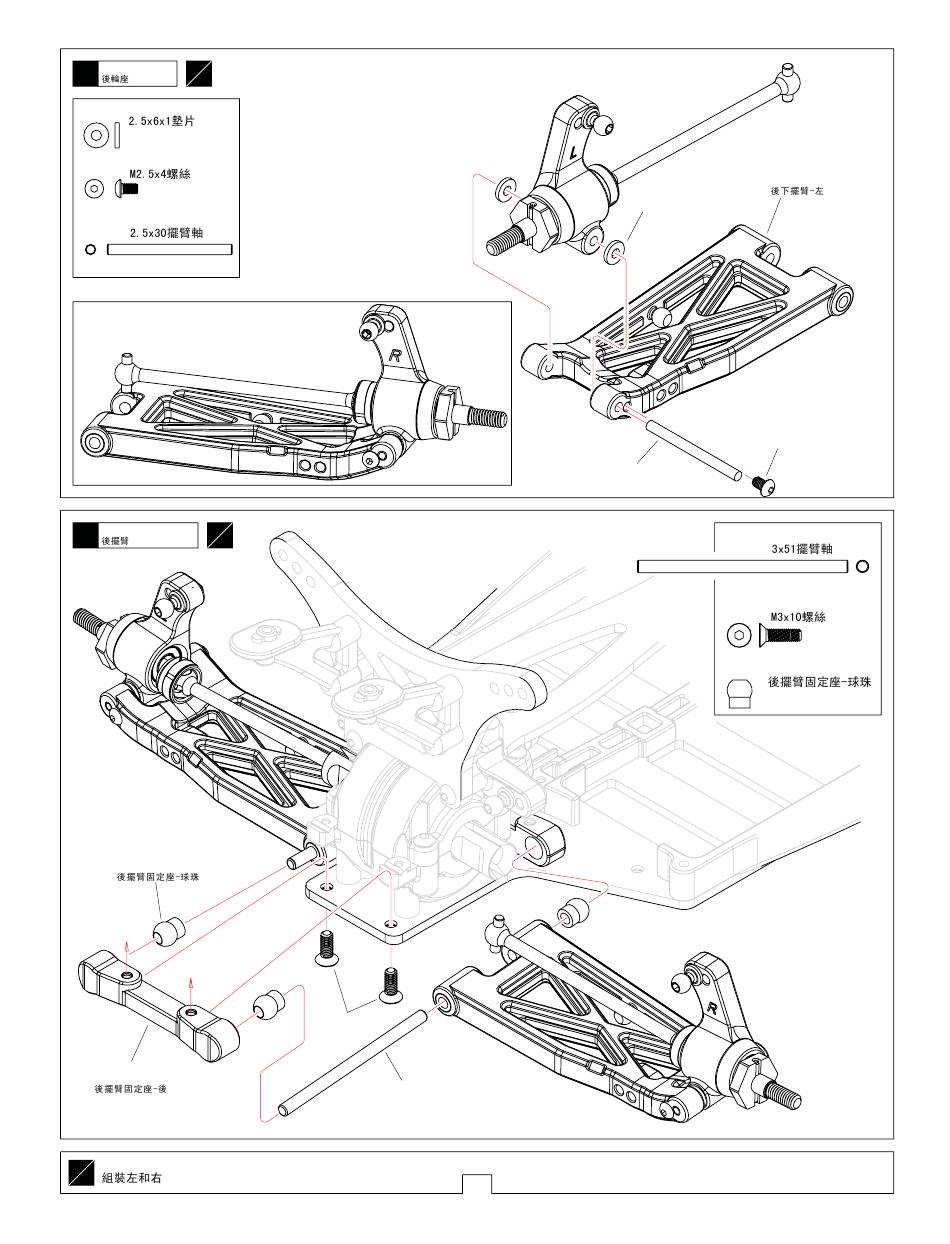

Rear Hub Carrier
R
TR4011 2.5x6x1 Washer
.....................4
TR4059 M2.5x4 Screw
.....................2
TR4046 2.5x30 Arm Pin
..................2
< R >
25
L
Rear Suspension Arm
R
TU0418
Rear Arm Mount-Ball
TU0418
Rear Arm Mount-Rear
Assemble both Left and Right
L
R
All manuals and user guides at all-guides.com
< L >
TR4058 M3x10
T04035
12
T04008
Rear Lower Arm-L
TR4011 2.5x6x1
TR4059 M2.5x4
TR4046
T04035 3x51 Arm Pin
TR4058 M3x10 Screw
TU0418 Rear Arm Mount-Ball
...........................4
..................2
...............2
