Before deciding where to place your Cascade speakers, survey your room
and think about placement, keeping the following points in mind and
using Figure 1 as a guide:
• For best results, place the speakers 6' – 8' (1.5m – 2.5m) apart.
• Position each speaker so that the tweeter is approximately at ear level.
• Generally, bass output will increase as the speaker is moved closer to a
wall or corner.
• Refer to “Home Theater” if you also plan to use the speakers for home
theater reproduction.
Left
Right
Channel
Channel
Listening Position

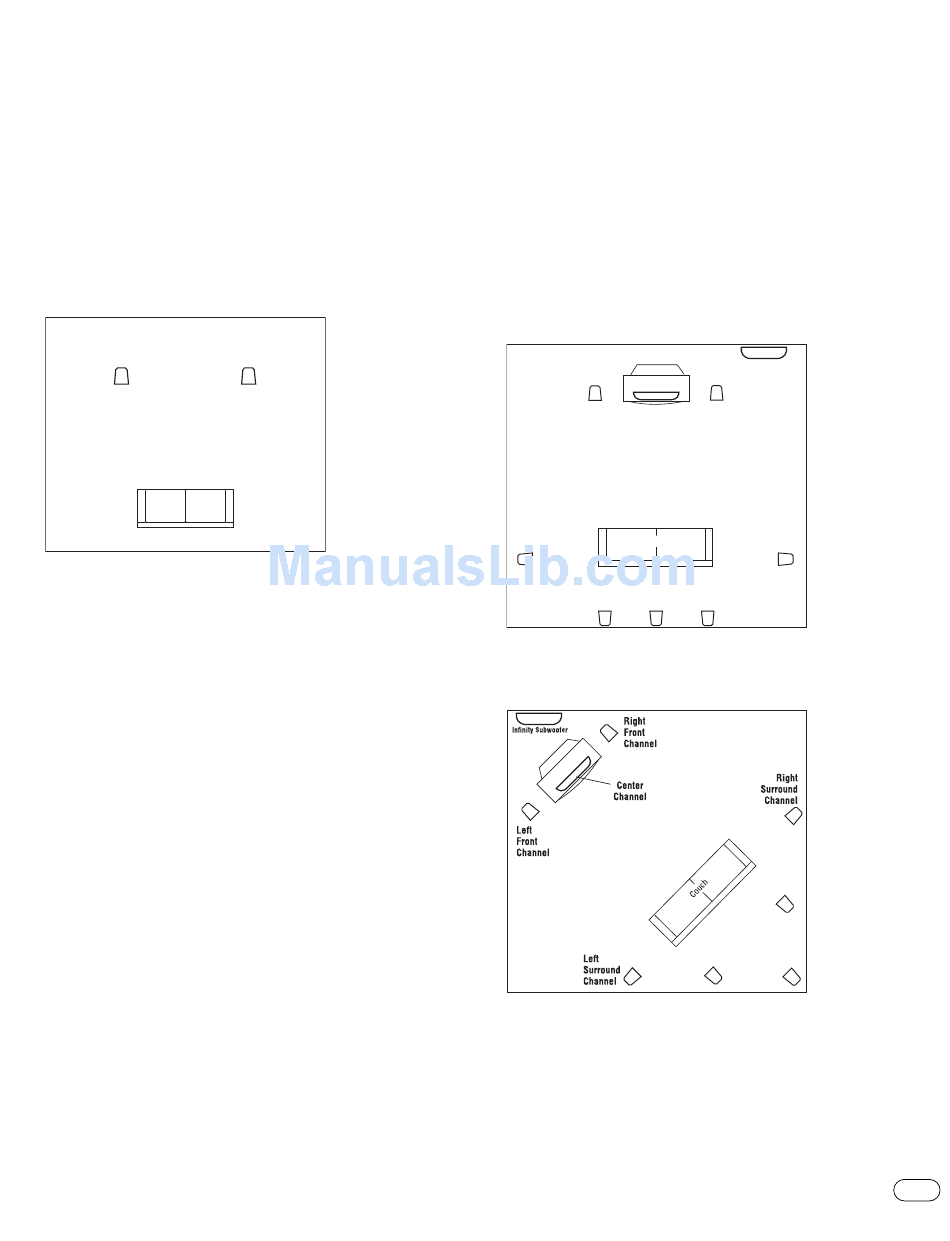

Figure 1. Experiment with speaker placement to obtain the best
bass level and stereo imaging in your room.
Home Theater
For front-channel use, place one speaker on the left and another on the
right, along either side of the television monitor. Since the speakers are
magnetically shielded, you can place them near the TV without worrying
about the magnetic field distorting the TV picture.
For surround-channel use, place speakers on bookshelves or stands
alongside the listening position. Final placement depends on room
acoustics, availability of space and your listening preference
(Figures 2 and 3).
In 6- or 7-channel configurations, place the rear channel(s) behind the
listening position, as shown in Figures 2 and 3.
NOTE: An Infinity powered subwoofer will add impact and realism to both
music and film soundtracks. Contact your Infinity dealer for recommenda-
tions on subwoofer models for your application.
Infinity Subwoofer
(optional)
Left
Right
Front
Front
Channel
Channel
Center
Channel
Couch
Left
Right
Surround
Surround
Left Rear
Center Rear
Right Rear
Channel
Channel
Channel
Channel
Channel
Figure 2.This overhead view shows a typical home theater plan.
Left/right rear channels are for a 7-channel system. Center
rear channel is for a 6-channel system.
(optional)
Right Rear
Channel
Left Rear
Center Rear
Channel
Channel
Figure 3.This figure shows an alternate layout, which may be
more suitable for some rooms. Left/right rear channels are for a
7-channel system. Center rear channel is for a 6-channel system.
