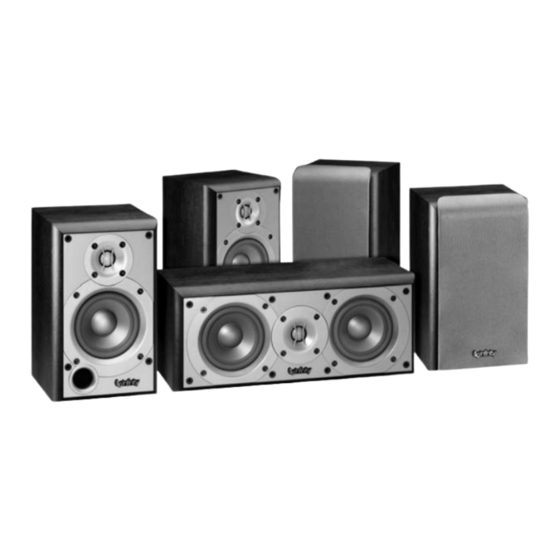

II O WNER ’ S RIMUS HEATER UIDE Table of Contents Introduction Unpacking the System Planning Your System Placement Wall-Mounting the Satellites Center and Satellite Speaker Connections Operation Maintenance and Service Specifications PRIMUS THEATER PACK II...
Front Channel Center Channel Right Surround Channel Left Front Channel (4) Satellite Speakers Left Surround Channel (20) Rubber Feet Figure 2.This figure shows an alternative layout, which may be more •••••••••• suitable for some rooms. •••••••••• PRIMUS THEATER PACK II...
NOTE: The satellite speakers can be placed directly on a shelf, or mounted on a wall using the built-in keyhole mount or optional The Primus Theater Pack II satellites and center channel are wall brackets. designed to mount directly to a wall. Each satellite speaker has two keyholes on the back.
Page 5
(as shown here). – Figure 4. Wiring diagram shows polarity connections for one channel of a home theater system. PRIMUS THEATER PACK II...
If the problem appears in the opposite speaker, the cause is in another component or cable. In the event that your subwoofer ever needs service, contact your local Infinity dealer or distributor, or visit www.infinitysystems.com for a service center near you. PRIMUS THEATER PACK II...
PECIFICATIONS Primus Theater Pack II Satellites Center Channel Frequency Range: 100Hz – 20,000Hz (±3dB) 100Hz – 20,000Hz (±3dB) Recommended Amplifier Power Range: 10 – 100 Watts 10 – 100 Watts Sensitivity: 86dB 87dB (2.83V @ 1 meter) Nominal Impedance: Crossover Frequency:...
Page 8
Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA www.infinitysystems.com Infinity, Harman International, Infinity Primus and MMD are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries. Metal Matrix Diaphragm is a trademark of Harman International Industries, Incorporated.
