Summary of Contents for Air Lift RideControl 59544
- Page 1 Kits 59544/59568 Ford F-150 Pickup & Lincoln Mark LT 59544 shown here INSTALLATION GUIDE For maximum effectiveness and safety, please read these instructions completely before proceeding with installation. Failure to read these instructions can result in an incorrect installation.
- Page 2 Protect your Air Lift Purchase by Completing your Warranty Registration Thank you for purchasing an Air Lift load support product! Take a photo of your sales receipt and then scan the QR code to complete your online warranty registration.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Important Safety Notice . -
Page 4: Introduction
Air Lift Company reserves the right to make changes and improvements to its products and publications at any time. For the latest version of this manual, contact Air Lift Company at (800) 248-0892 or visit our website at www.airliftcompany.com. -
Page 5: Installation Diagram
RideControl Installation Diagram Driver Side Shown NOTE: Some late models have a rubber plug covering the slot in the frame. Remove the plug and discard. NOTE: Torque the nut to no more than 10 ft/lbs evenly on NOTE: The jounce both sides. -

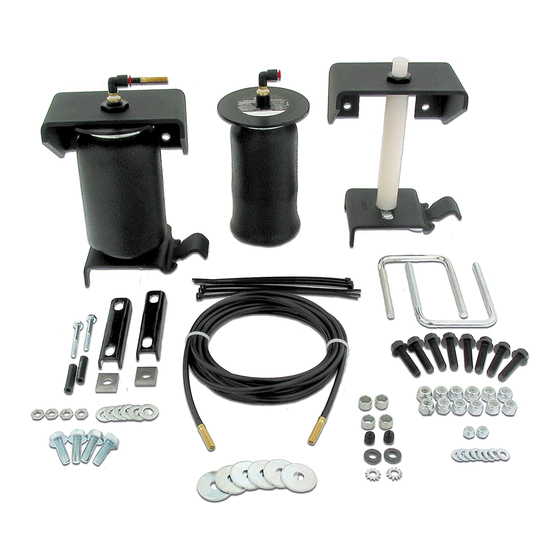

Page 6: Hardware List
17309 3/8" J-bolt ..........4 18422 3/8" Serrated flange nut ......4 Missing or damaged parts? Call Air Lift customer STOP! service at (800) 248-0892 for a replacement part. TOOLS LIST Description ..........Qty Description . - Page 7 RideControl 4. Insert the curved part of the J-bolts (K) into the existing slots in the frame. Be sure the J-bolts lock onto the frame securely (fig. 2). Tighten the 3/8" serrated flange nut to attach. Some late models have a rubber plug covering the slot in the frame. Remove the plug and NOTE discard.
-
Page 8: Installing The Air Lines
RideControl INSTALLING THE AIR LINES 1. Choose a convenient location for mounting the inflation valves. Popular locations for the inflation valve are: a. The wheel well flanges. b. License plate recess in bumper. c. Under the gas cap access door. d. -
Page 9: The Addition Of Limiting Straps
RideControl 6. Route the air line along the frame to the air fitting on the air spring (fig. 5). Keep AT LEAST 6" of clearance between the air line and heat sources, such as the exhaust pipes, muffler, or catalytic converter. Avoid sharp bends and edges. Use the plastic zip ties (BB) to secure the air line to fixed, non-moving points along the chassis. -
Page 10: Before Operating
If a heat shield was included in the kit, install it. If there is no heat shield, but one is required, call Air Lift customer service at (800) 248-0892. MAINTENANCE AND USE GUIDELINES 1. Check air pressure weekly. -
Page 11: Warranty And Returns Policy
Limited Warranty and Return Policy Air Lift Company provides a limited lifetime warranty to the original purchaser of its load support products, that the products will be free from defects in workmanship and materials when used on cars and trucks as specified by Air Lift Company and under normal operating conditions, subject to the requirements and exclusions set forth in the full Limited Warranty and Return Policy that is available at www.airliftcompany.com/warranty. - Page 12 Thank you for purchasing Air Lift products — the professional installer’s choice! Air Lift Company • 2727 Snow Road • Lansing, MI 48917 or PO Box 80167 • Lansing, MI 48908-0167 Toll Free (800) 248-0892 • Local (517) 322-2144 • Fax (517) 322-0240 • www.airliftcompany.com...
