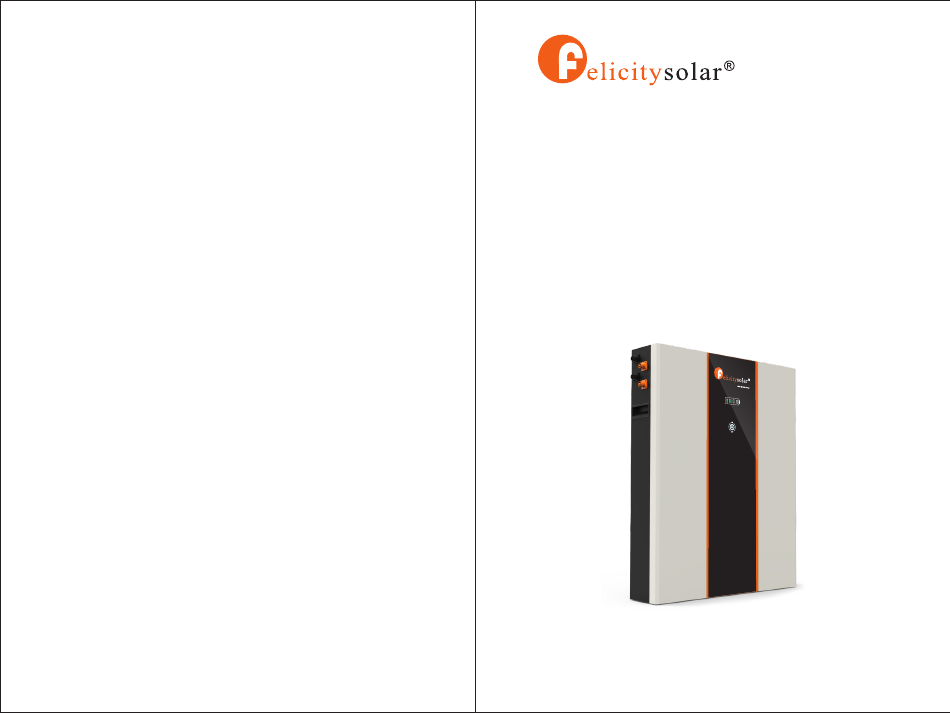

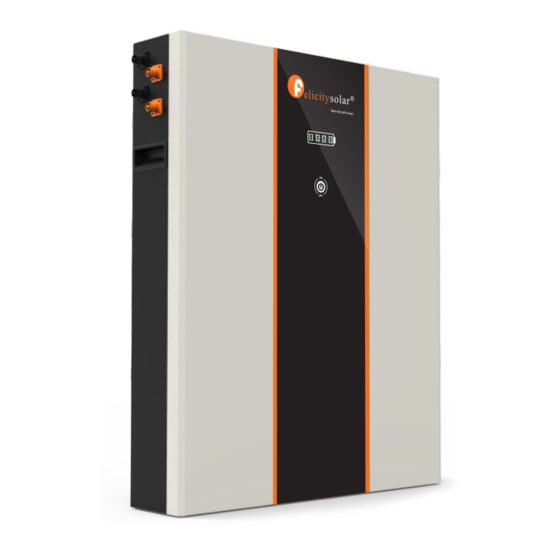

- Page 1 Make life full of hope USER GUIDE LiFePO4 Battery System for Households LiFePO4 Battery System for Households 358-010202-01...
-
Page 2: Table Of Contents
Contents 1 ABOUT THIS MANUAL ..................1 1.1 Purpose ....................1 1.2 Scope ....................1 1.3 Safety Instructions .................. 1 2 INTRODUCTION ....................2 2.1 Features....................2 2.2 Product Overview ................... 2 2.3 Specifications ..................4 2.4 Recommended Settings ................4 3. -
Page 3: About This Manual
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 1 ABOUT THIS MANUAL 2. INTRODUCTION The battery system main using Solar power system for Family house. It also have a with to controller the 1.1 Purpose battery easily and protect our Household application timely. This manual describes the introduction, installation, operation and emergency situations of the battery bank. -
Page 4: Specifications
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 2.3 Specifications LPBF24200-M Model LPBF24200-M LPBF48200-M LPBF48200-P Usable Capacity 5KWH 10KWH 10KWH Nominal Voltage 25.6 51.2 51.2 Voltage Range 24-28.8 48-57.6 48-57.6 MAX. Charge & Discharge Current 120A@30S 120A@30S 120A@30S Recommend Charge &... -
Page 5: Installation
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 3. INSTALLATION 3.1 Unpacking and Inspection LPBF24200 -M Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package. 87.5 NAME SPECIFICATION... -
Page 6: Connection For Parallel Mode
PIC 2 Schematic diagram of parallel connection of battery packs(LPBF48200-M&LPBF24200-M) Step 3: The schematic diagram of the parallel connection of six battery packs is shown in Figure 3. -
Page 7: Operation
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 4. OPERATION For pure off grid system ,the PV awake wire need to be connected with MPPT charge controller if the battery pack is charged by solar panels only . The connection diagram as below : Once the batteries are connected well, simply press On/Off... -
Page 8: On / Off Or Soc Led (Mode Or Soc)
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 4.3 ON / OFF or SOC Led (Mode or SOC) 5. EMERGENCY SITUATIONS ON/OFF BATTERY MODE REMARK GREEN LED RED LED LED1 LED2 LED3 LED4 Felicity cannot guarantee eStrong battery absolute safety. POWER OFF POWER ON 5.1 Fire...
