Summary of Contents for Felicitysolar LPBA48170

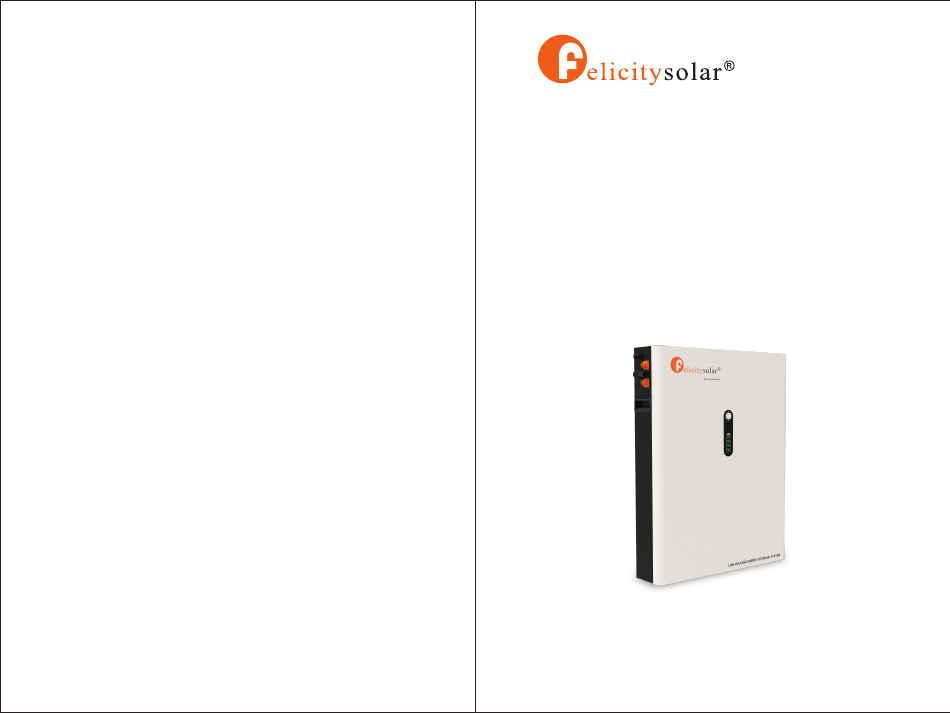

- Page 1 Make life full of hope USER GUIDE LiFePO4 Battery System for Households LiFePO4 Battery System for Households 358-010157-00...
-
Page 2: Table Of Contents
LiFePO4 Battery System for Households Contents 1 ABOUT THIS MANUAL 1.1 Purpose 1 ABOUT THIS MANUAL ..................1 This manual describes the introduction,installation, operation and emergency situations of the battery bank. 1.1 Purpose ....................1 Please read this manual carefully before installations and operations. Keep this manual for future reference. 1.2 Scope .................... -
Page 3: Introduction
LiFePO4 Battery System for Households 2. INTRODUCTION 2.3 Specifications The battery system main using Solar power system for Family house.It also have a with to controller the Model LPBA48170 battery easily and protect our Household application timely. Usable Capacity 8.7KWH Nominal Voltage 51.2... -
Page 4: Installation
• Be sure to keep other objects and surfaces as shown in the right diagram to guarantee sufficient heat dissipation and should have received the following items inside of package. to have enough space for removing wires. NAME SPECIFICATION PICTURE LPBA48170 Wall mount Wall mount bracket Grid activation communication wire Communication line 1 ( used with 6) - Page 5 LiFePO4 Battery System for Households LiFePO4 Battery System for Households For pure off grid system ,the PV awake wire need to be connected with MPPT charge controller if the battery pack is charged by solar panels only . The connection diagram as below : Step 3: The schematic diagram of the parallel connection of six battery packs is shown in Figure 3.
-
Page 6: Operation
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 4.3 ON / OFF or SOC Led (Mode or SOC) 4. OPERATION ON/OFF BATTERY MODE REMARK Once the batteries are connected well, simply press On/Off button to enable the output of the battery pack. GREEN LED RED LED LED1... -
Page 7: Emergency Situations
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 5. EMERGENCY SITUATIONS Felicity cannot guarantee eStrong battery absolute safety. 5.1 Fire In case of fires, make sure that the following equipment is available near the system. • SCBA (self-contained breathing apparatus) and protective gear in compliance with the Directive on Personal Protective Equipment 89/686/EEC.
