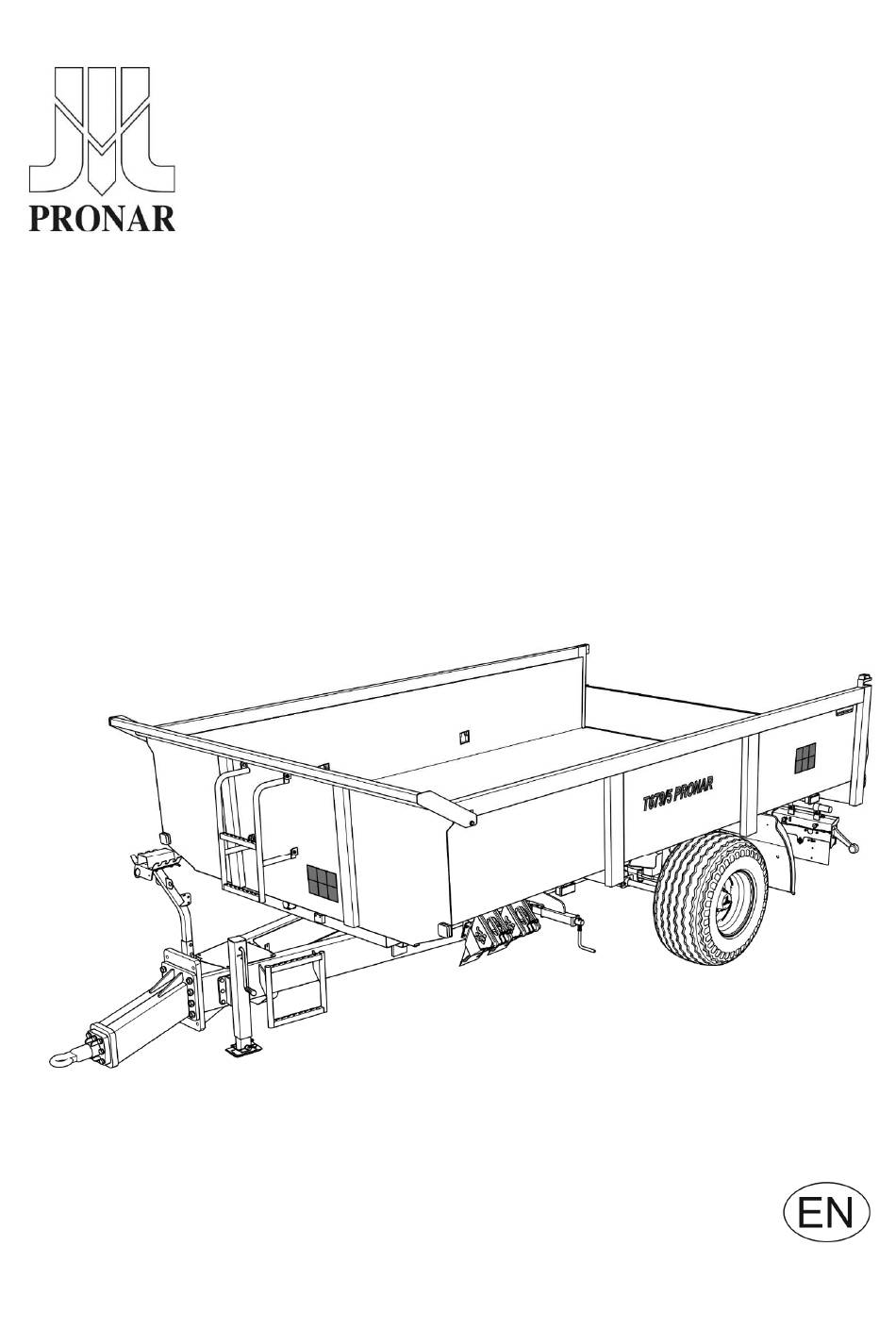

TRANSLATION OF THE ORIGINAL COPY OF THE MANUAL
EDITION 2A-04-2017
PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE
Phone:
fax:
OPERATOR`S MANUAL
AGRICULTURAL TRAILER
PRONAR T679/5
+48 085 681 63 29
+48 085 681 63 81
+48 085 681 63 83
PUBLICATION NO. 537N-00000000-05-UM
+48 085 681 64 29
+48 085 681 63 82
+48 085 682 71 10
www.pronar.pl
