Table of contents GENERAL INFORMATION TECHNICAL DESCRIPTION Possible Expansion and Upgrading of the Unit Scope of Use and Application DESCRIPTION Gasmixing unit 3 and 4 – Ratiosystem (optional) -Flush AIR/N O Mode Switch - supply deficiency signal Nitrous Oxide Block Vaporizer Gas-cylinder Supply Component CHANGEOVER MOUNTING ARM (OPTIONAL)
Page 4
Operating Instructions Artec GAS TYPE TEST AND TESTING SAFETY DEVICES Testing Gas Type: Testing the Vaporizer / Vaporizer holding rack CLEANING AND CARE OF ANESTHESIA UNIT TROUBLESHOOTING ARTEC Changeover mounting arm (if available) TECHNICAL DATA MAINTENANCE AND SERVICING 10.1 Artec 10.2 Changeover mounting arm (if available)
An emergency ventilation system (e.g. Ambu-Bag) must always be in close proximity of the unit. F. Stephan shall assume no responsibility or liability for any damage or defects arising from non-observance of the above-mentioned information.

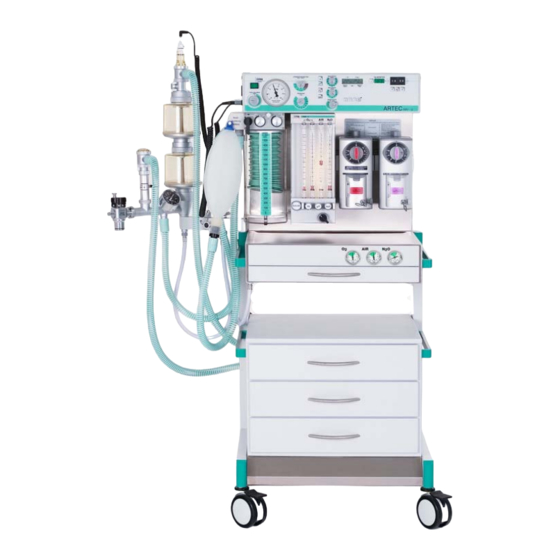

Operating Instructions Artec 2 Technical Description Driven by customer requests and requirements, the ARTEC model series had been designed and developed as a compact universal version. At the same time high quality- standards and maximum economy has been achieved. The elementary structure ensures a good overview and quick allocation and adjustment of parameters for the respective unit components.
Page 7
Operating Instructions Artec Gas Supply: The unit is designed with a central gas supply coupling connection. A set of hoses is supplied with the unit for the three types of gases O O and compressed air ( if air is provided).
It is strongly advised to have the installation carried out by our specially trained Stephan Service Team. 2.2 Scope of Use and Application The ARTEC is an inhalation anesthesia unit for the manual anesthesia of infants, children and adults.
3 Description 3.1 Gasmixing unit 3 and 4 The gasmixing unit serves as a dosage unit for medical gases (e.g. O O, Air). The choosen gases can mixed in a arbitary relation, but the ratio-system guarantees a O -concentration not lower then 21 % (see below).
Operating Instructions Artec 3.2 O – Ratiosystem (optional) The Gasmixing units GME 3 and GME 4 can be equipped optionally with a pneumatical system to assure at every flowrange of N O a minimum concentration of oxygen of 25 % (+/- 5%).
Operating Instructions Artec 3.3 O -Flush By pressing the O Flush push-button, a fast oxygen supply (approx. 50 litres per minute) is activated directly to the fresh-air outlet (not via the anesthesia vaporizer). After releasing the O Flush push button it must return to it original position.
Operating Instructions Artec Vaporizer On request, the ARTEC inhalation anesthesia unit can be equipped with various vaporizer- systems. In the standard model, the vaporizerss come in use which are equipped with an „Interlock‘“ locking system to enable alternating operation of two vaporizers. The anesthetic agent is mounted to the selected vaporizer rack by means of a click-in mechanism.
Operating Instructions Artec 3.8 Gas-cylinder Supply Component When in the gas-cylinder operation mode, the gas is reduced from 200 or 50 bar to a working pressure of 5 bar. The cylinder pressure can be read on the pressure gauge and indicates the status of level fill of the gas bottles.
Operating Instructions Artec 4 Changeover mounting arm (optional) As an option, the anesthesia system can be equipped with a changeover mounting arm. At the fresh gas outlet of this mounting arm a circuit system ISO 1 (Art.Nr. 11561006 / re- breathing system with CO absorber) or all commercially available non re-breathing systems (e.g.
Operating Instructions Artec 4.2 Front view Fig. 2: Front view 4 Fresh gas outlet 6 Fresh gas inlet coming from the gas mixing unit (GMU) 5 Adapter for O sensor when using a non re-breathing system (Must be sealed with the cap when using a circuit system / re-breathing system)
Operating Instructions Artec 4.3 Rear view Fig. 3: Side view on the left 2 Safety valve, connection for 6 Fresh gas inlet coming anesthetic gas aspiration Ø from the gas mixing unit 28 mm (GMU) 5 Adapter for O sensor when using a non re-breathing system (Must be sealed with the...
Operating Instructions Artec 4.4 Connecting the changeover mounting arm 4.4.1 Connection to the circuit system (re-breathing system) Fig. 4: Connection to the changeover mounting arm 4 Fresh gas outlet 6 Fresh gas inlet coming from the gas mixing unit (GMU) 5 Adapter for O sensor 7 Connection hose for circuit...
Page 18
Operating Instructions Artec The adapter for O sensor must be sealed with the cap when using a circuit system /re-breathing system. Caution 4.4.2 Connection to a non re-breathing system Fig. 5: Connection of the mounting arm to a non re-breathing system 4 Fresh gas outlet 6 Fresh gas inlet coming from the gas mixing unit (GMU)
Page 19
Operating Instructions Artec Proceed as follows to connect the mounting arm to a commercially available non re- breathing system (e.g. Magill, Mapelson, Bain etc.) proceed as follows: Remove the connection hose for circuit system ( It. 7) from the fresh gas outlet of the mounting arm (It.
Testing Unit Functions 5.1 Dosage valves of the Gas Mix Unit When closing the dosage valves make sure that the respective floating marker of the respective measuring tubes are re-set to zero. Otherwise, a leakage of the respective spindle will result that must be remedied by a service technician. 5.2 O -Flush Before each operation of the ventilation unit check to see whether the O...
6 Gas Type Test and Testing Safety Devices 6.1 Testing Gas Type: Check for proper connection of the anesthesia unit to the central gas supply system before operation of the unit. Basic Setting: Unit in operation mode Anesthesia gas aspiration unit connected monitor in standby mode and calibrated.
Operating Instructions Artec Testing the O deficiency signal / nitrous oxide block: Basic Setting: Unit in operation mode Anesthesia aspirator device connected All dosage valve spindles opened to 3 litres per minute AIR / N O Mode Switch in N O position Conducting test: Remove angle plug for O...
7 Cleaning and Care of Anesthesia Unit The anesthesia unit is to undergo a thorough cleaning at appropriate intervals; whereby servicing measures must also be conducted that will prolong the service life of the machine. After removing the vaporizer, the unit can be wiped clean using a common detergent agent.
Operating Instructions Artec 8 Troubleshooting 8.1 ARTEC Error Possible Cause(s) Remedy Measuring tube is dirty Clean measuring tube Floating marker of the measuring tubes do not return to zero Dosage valve leakage Loosen rotary knob and re-set (Service) When using Mode Mode switch valve is not Replace mode switch valve Switch AIR/N...
Operating Instructions Artec 8.2 Changeover mounting arm (if available) Störung Ursache Mögliche Fehlerbeseitigung When using the circuit Connection hose of the Attach the connection hose of system: circuit system is not the circuit system to the fresh connected to the fresh gas gas outlet of the mounting No or not enough outlet of the mounting arm...
9 Technical Data Inhalation Anesthesia Unit MPG-Class 2b, Model Registration Number: 11 / M-01491 Typ: B Protection Class: 1 230 V AC 80 VA (with ventilator) Dimensions (with Ventilator ABVA) Width: 500 mm Height: 1350 mm Depth: 630 mm Dimensions (without Ventilator ABVA) Width: 500 mm Height:...
10 Maintenance and Servicing 10.1 Artec Medico-technical products and required to undergo at regular intervals inspection and servicing in compliance with MedGV (Medical Equipment Regulations). Such inspections and servicing are to be carried out by authorized personnel only (Service Staff) of the Supplier. Periodic Maintenance is genenally semi-yearly.
